GE CT-9800

GE MEDICAL SYSTEMS CT 9800 QUICK SYSTEM
Rev. 12 Direction 18000
6-9-8
3. Xenon Detector

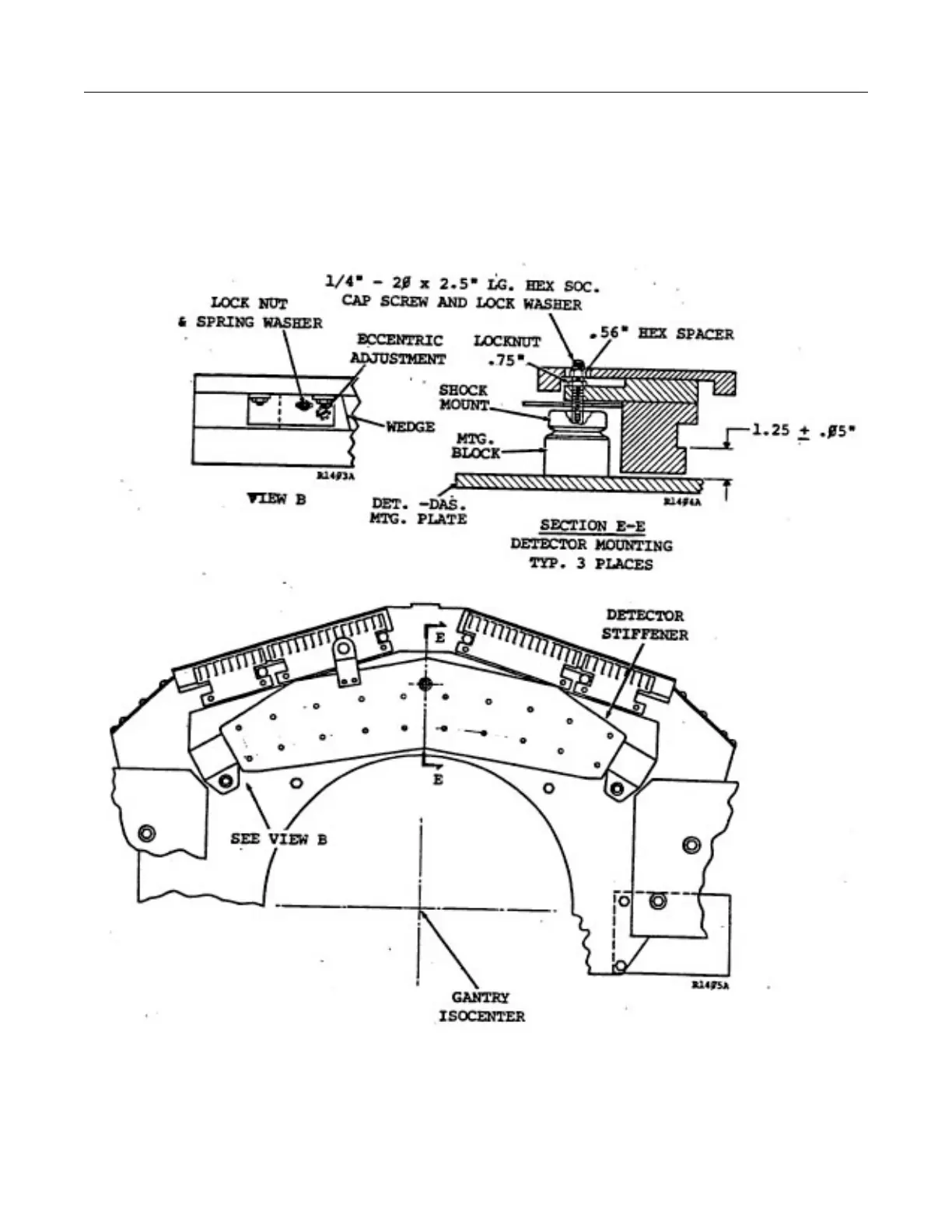

Refer to Illustration 6-9-7. The detector is supported to the gantry mounting plate with three shock mounts. Each
shock mount has an adjustable positioning screw to move the detector in the Z direction. The detector is not
adjustable in the theta or radial direction.
ILLUSTRATION 6-9-7
