GE CT-9800

GE MEDICAL SYSTEMS CT 9800 QUICK SYSTEM
Rev. 12 Direction 18000
6-9A-5

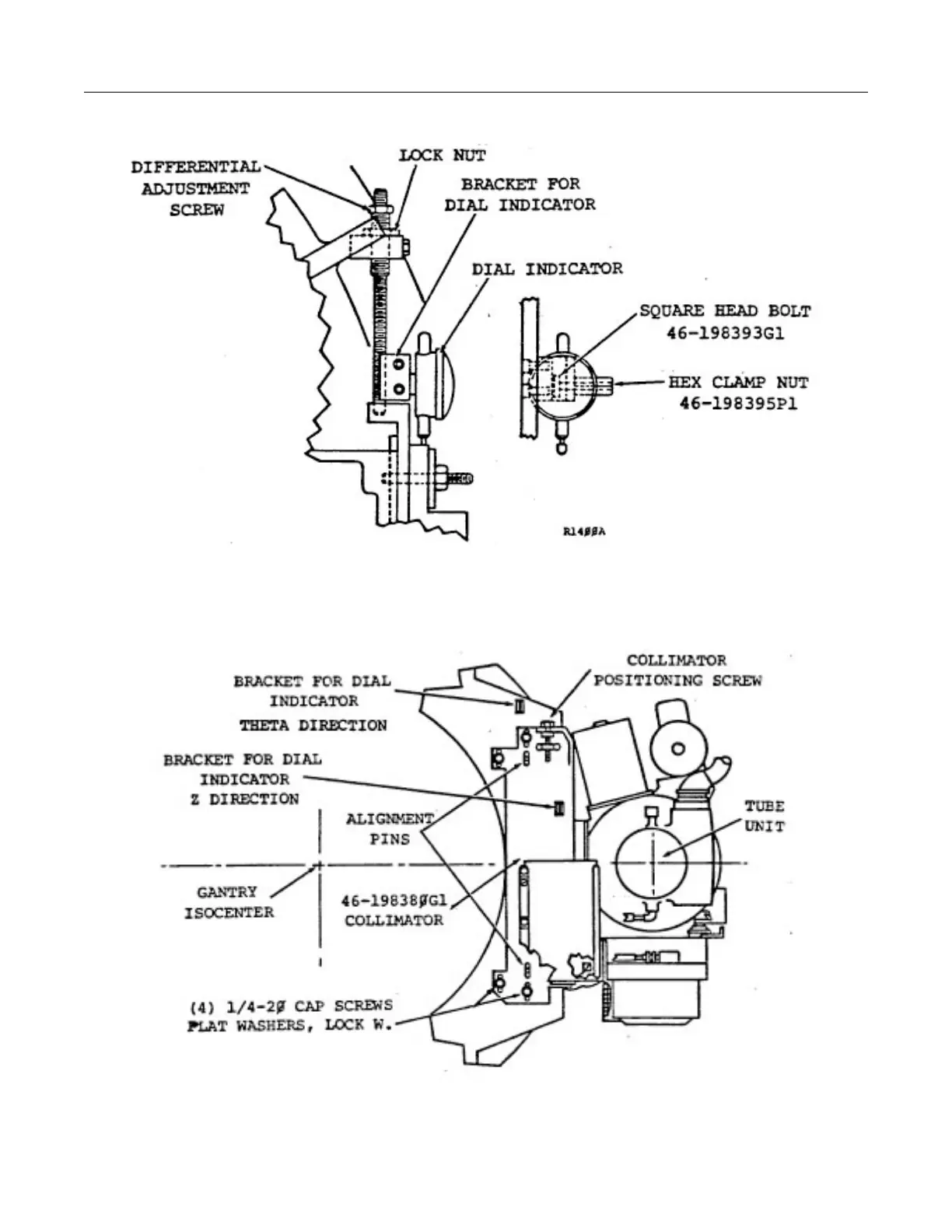

ILLUSTRATION 6-9A-4
2. Collimator
Refer to Illustration 6-9A-5. the 46-198380G2/G802 collimator assembly mounts directly to a rotating surface
in the gantry. It is designed so that the plane of the fan beam is centered 2.16” (54.86mm) from this
mounting surface.
ILLUSTRATION 6-9A-5
