GE Grid
Solutions
D25
User's
Manual
GE Informati
on
994
-
0081
-
3.00
-
21
167

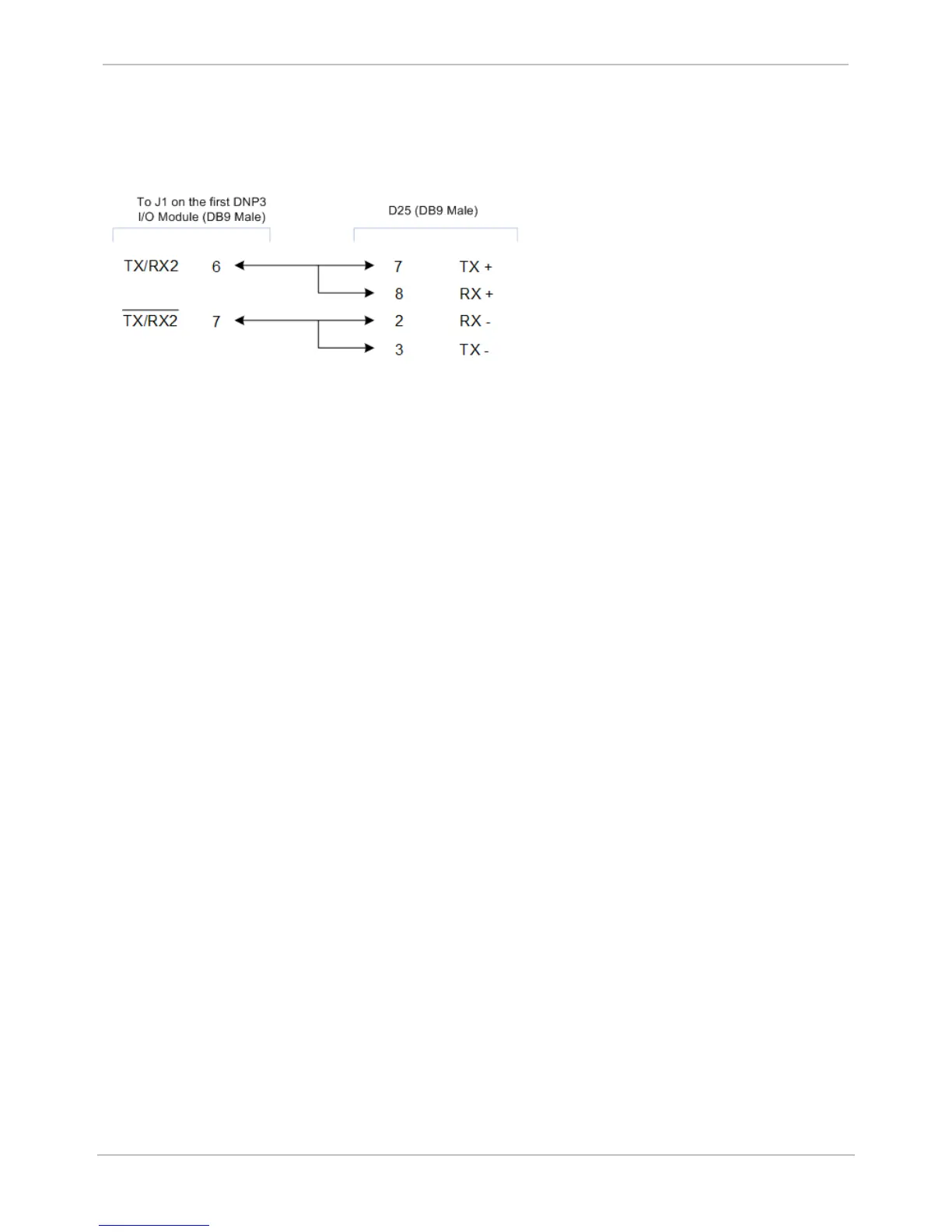

Connecting to a
D25
The cable
from an
D25
RTU
Master to the first DN
P I/O Module (GE Par
t Number 977-
0502) has the
following connec
tions and jum
pers:
Note
:
Make sure the
D25
RTU Master is config
ured for RS-
485, 2W mode.
166
168
Table of Contents
Default Chapter
3
Table of Contents
3
About this Document
6
Product Support
9
GE Grid Solutions Web Site
9
GE Grid Solutions Technical Support Library
9
GE Grid Solutions Technical Support
9
Product Returns
10
Chapter 1: Before You Start
11
Product Safety
11
Product Overview
14
Restriction of Hazardous Substances (Rohs)
15
Chapter 2: Installing the D25
18
Installation Tools List
18
Installation Steps
18
First Look at the D25
19
Physical Mounting
21
LCD Panel Overview
22
Graphic Display Panel (GDP) and Color GDP (CGDP) Overview
24
Configuration of a GDP
27
Set up of a Color GDP (CGDP)
28
Connecting Field Wiring
33
Power Supply
33
Digital Inputs
34
Control Outputs
41
DC Analog Inputs
65
AC Analog Inputs
67
Communications Ports
68
Configuring the D25 to Work with a DNP3 I/O Module
78
Chapter 3: Powering-Up and Testing
80
Testing Utilities
80
Boot up
82
Using WESMAINT
83
Testing Hardware I/O Points
85
Chapter 4: Configuring the D25 Software
93
D25 Software
93
Downloading a Configuration
96
Chapter 5: Operating the D25
105
LED Indicators
105
Controls Switch
106
Using Current-Monitored Digital Outputs
108
Chapter 6: Servicing the D25
110
Fuse Replacement
111
Battery Replacement
113
Chapter 7: Upgrading and Replacing D25 Modules
116
Module Replacement
116
Main Board
118
DDSP Modules
122
Memory Expansion Board
123
Shelf Plate
123
Configuring Radio Keying Option
126
D25 Ethernet Card 100Base (10/100Base-T and 100Base-FX)
127
Power Supply Card
129
Digital Input Cards
131
Digital Output Card
132
DC Analog Input Card
133
CT/PT Modules
134
Reconnecting Power
143
Chapter 8: Troubleshooting
144
Run-Time and Startup Problems
144
Initialization Errors
146
LAN-Based Problems
147
Reporting Problems
148
Appendix A: Product Specifications
152
Electrical Specifications
152
Testing and Certification
156
Approvals
156
Physical Specifications
157
Storage and Battery
158
Appendix B: Engineering Value Calculations
159
Conversion Formulas
159
Appendix C: Ordering Information
161
Appendix D: Installing and Connecting DNP3 I/O Modules
162
Overall Procedure to Install and Connect DNP3 I/O Modules
162
Installing DNP3 I/O Modules in a Rack
163
Connecting DNP3 I/O Modules (Low Voltage)
165
