4-56 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE CHAPTER 4: INTERFACES
4

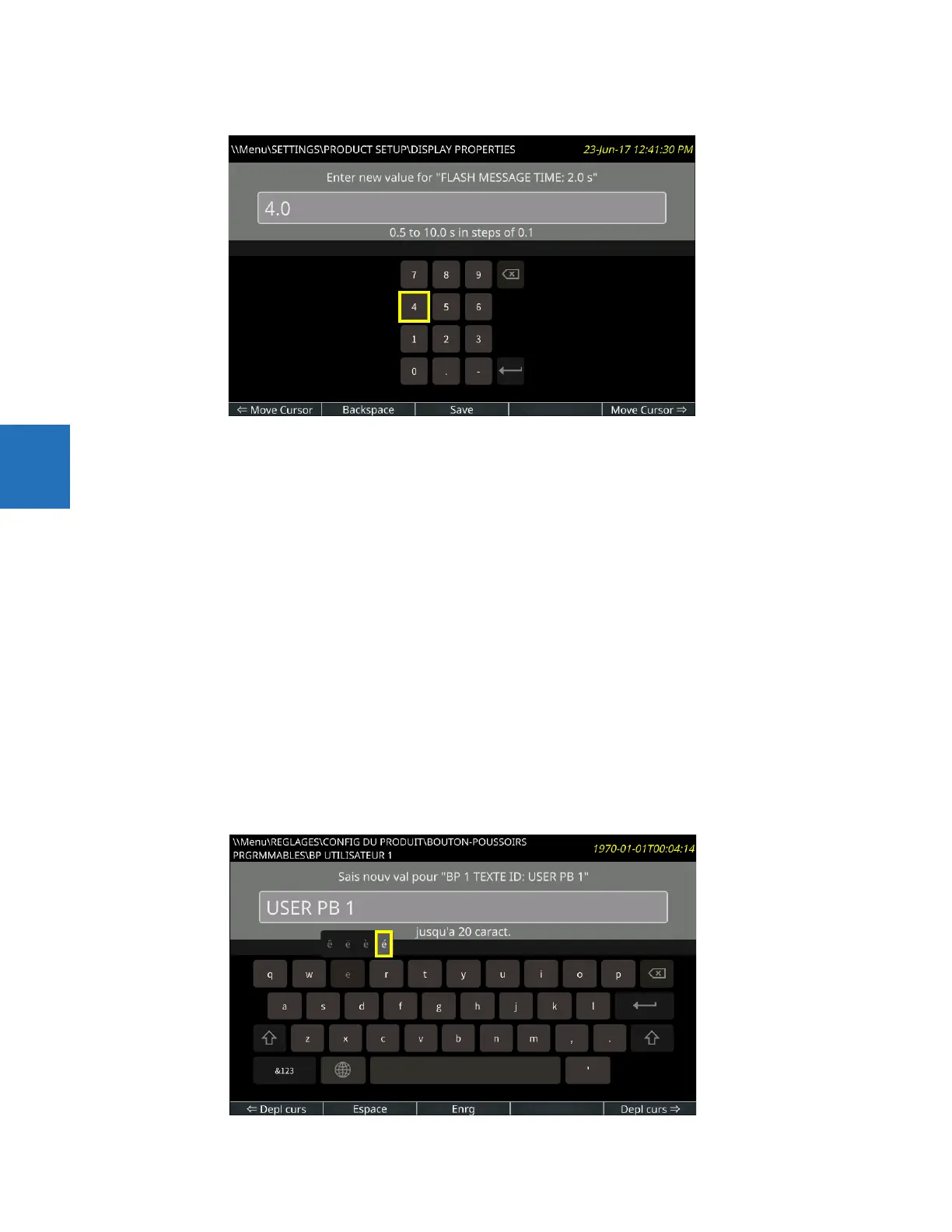

Figure 4-60: Settings page with numeric keypad
Press the Save Tab pushbutton, which does a range check on the value, saves the setting when valid, closes the page, and
displays the previous page.
When a setting is not saved due to an invalid value, a message flashes, for example being out of range. In cases where the
relay needs to be restarted for settings to take effect, the flash message advises.
Setting entry can be cancelled without impact on the original value by pressing the ESCAPE or Home pushbutton.
Alphanumeric text
Settings that accept alphanumeric values display a keyboard. An example is a pushbutton name.
The &123 key toggles between text and numbers.
The shift key (up arrow on keyboard) is green upon activation, while the keyboard letters switch to upper case. Double-click
the shift key to lock capital lettering, or full capitals.
The globe key (shown greyed-out) toggles the keyboard language between English and another display language selected,
for example between English and French. (The second language needs to be activated under Settings > Product Setup >
Display Properties.)
For Japanese and Chinese, up to 10 characters can be input in a field, not 20.
To add accents, highlight a key and hold the ENTER pushbutton on the graphical front panel. Any special characters
associated with the key display.
Figure 4-61: Settings page with keyboard and accents
