CHAPTER 3: ELECTRICAL INSTALLATION
12
EPM 5000 series Advanced Power Meters GE Multilin
The EPM 5300P-S
The EPM 5300P -S is essentially the 5300P, where through the Programming Mode calculations are
changed to reflect either Single Phase or Dual Phase readings.
Single Phase—The connection MUST be identical to Diagram VI.
Dual Phase—The connection MUST be identical to Diagram VII.
Program 1 for Single Phase or 2 for Dual Phase in GROUP 0, FUNCTION 7 to remove Three-Phase
indicators from view.
+
-
POWER
7
6
5
4
3
2
1
8
9
10
11 12
13
PORT
L1
L
LINE
A
LOAD
BACK VIEW

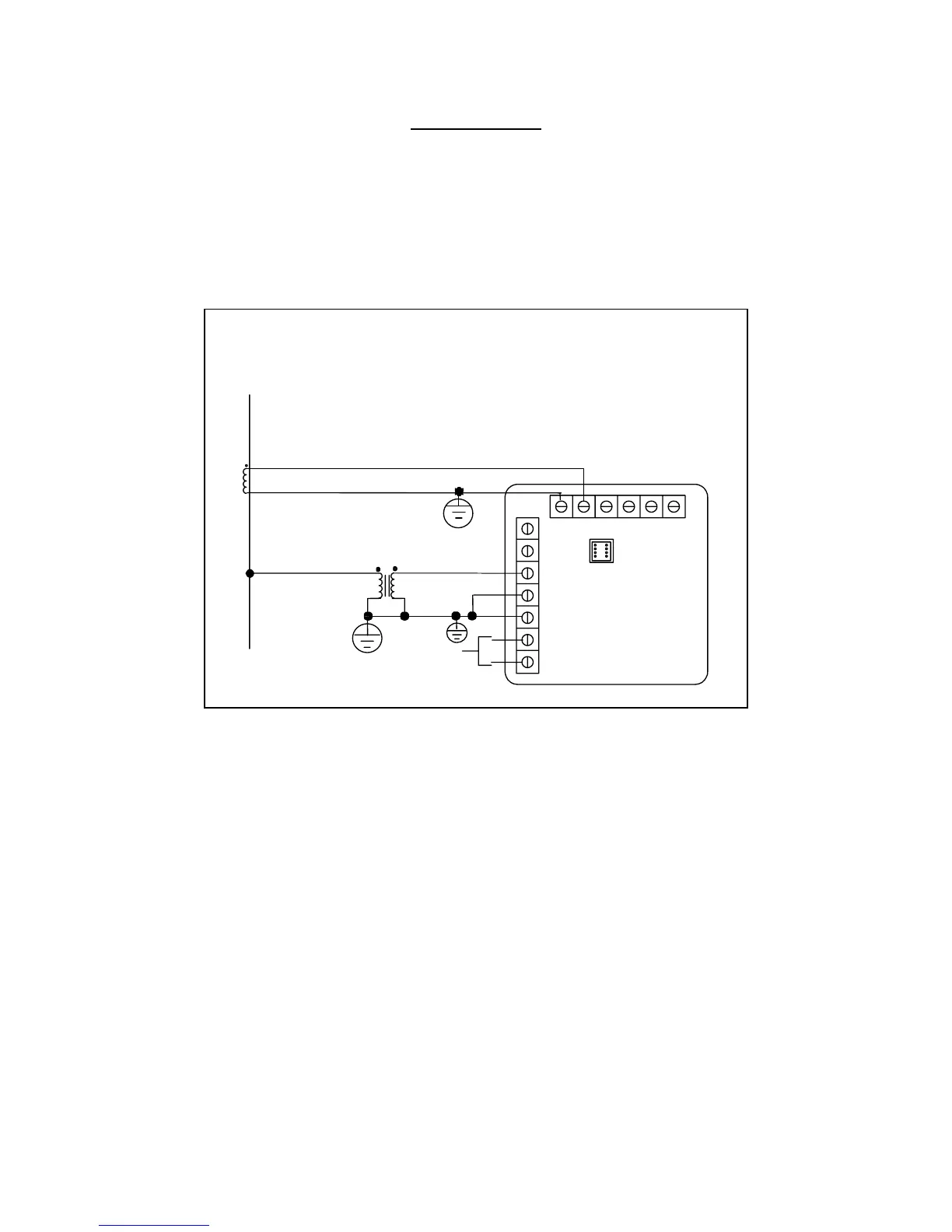

VI. Single Phase with CT and PT Connection
