CHAPTER 5: OVERVIEW
34
EPM 5000 series Advanced Power Meters GE Multilin
5.10: Access Modes
The following access commands allow the user to perform specific operations.
ACCESS
COMMANDS
OPERATION
1
Print Operating Data
2
Print Programming Data
3
Enter Programming Mode (see Programming Section)
4
Firmware Version/LED Test
Note
: Print commands 1 and 2 are only available if enabled in the programming mode; they are not
recommended when using the multimeter connection RS-485.
5.11 Print Operating Data
This function sends data to a serial printer, creating a hard copy of the instantaneous and max/min data
of all functions and the WH, VAH, and WH counters.
Note
: This function applies only if a serial printer is connected to the EPM 5300P via an RS-232C
Communication Converter.
To print the operating data:
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWHKVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWHKVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
V
OLTS
AMPS
POWER

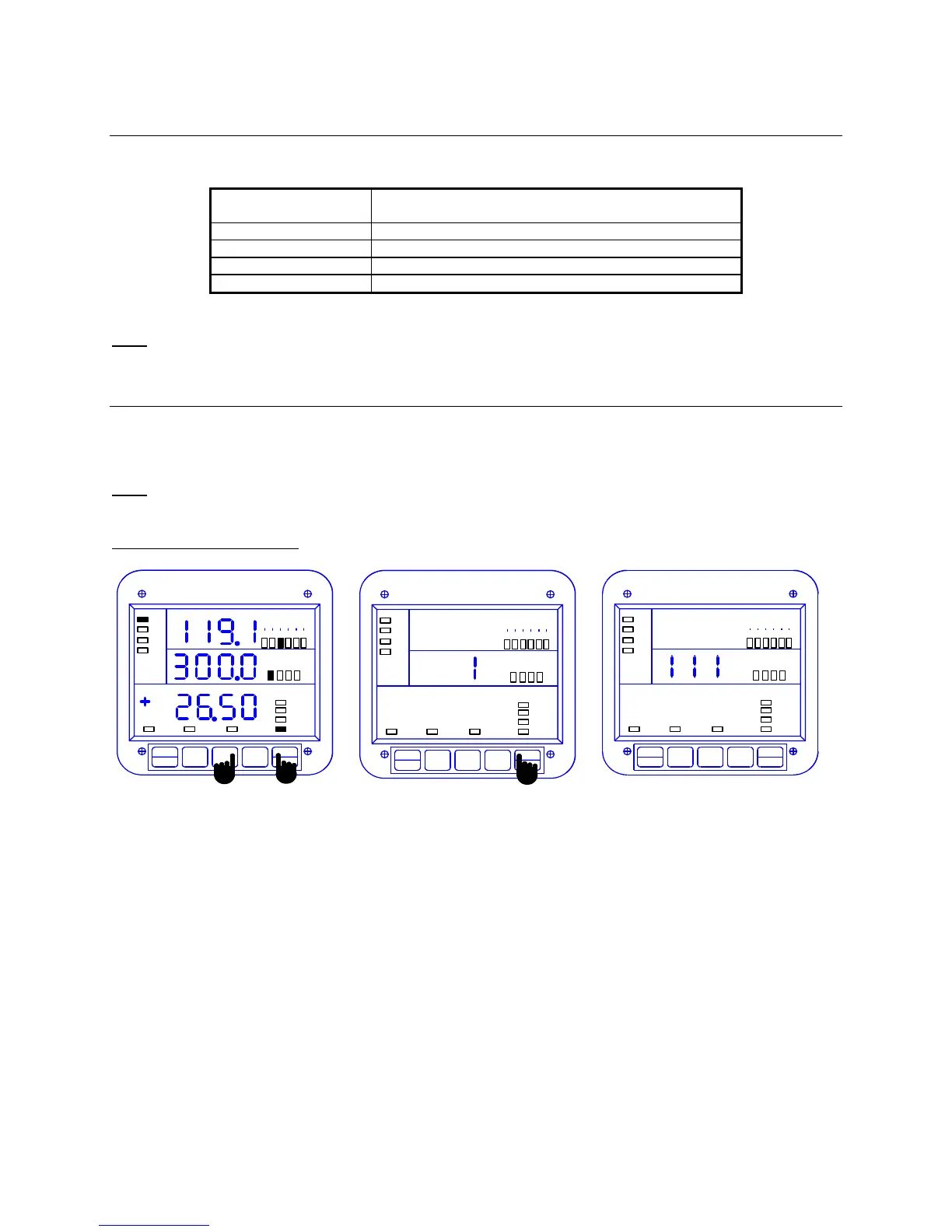

Step 1:
a. Press and hold
PHASE/NEXT.
b. Press AMPS until a 0
appears in the middle
display.
c. Release both buttons.
Step 2:
a. Press AMPS until a 1
appears..
b. Press PHASE/ NEXT to
select.
! 111 appears, confirming a
successful print command.
