CHAPTER 8: ENTERING PROGRAMMING MODE
GE Industrial Systems 5300P Advanced Power Meter 41
CHAPTER 8
ENTERING PROGRAMMING MODE
8.1: Checksum Error—Protective Self-Checking Algorithms
This checksum error is a protective self-checking wealth algorithm designed to alert the user when a
procedure has not been correctly followed, ensuring that the meter does not display inaccurate readings.
If the control power is interrupted while in Programming Mode or the user does not completely exit, the
meter enters a checksum mode. The max LED flashes. Press AMPS and PHASE/NEXT simultaneously
and the unit recovers. Follow the procedure to enter Programming Mode to check program data. If the
data is correct, then exit.
8.2: Password Entry
The EPM 5300P and 5200P are password protected. To enter the Programming Mode, key in the
following password: 555.
The password entry may seem awkward at first. It is designed to be difficult to use initially. This secures
unauthorized tampering. After you become familiar with password entry, you will find it quick and easy to
accomplish.
NOTE: The meter will not store any programming unless properly exited (see Chapter 14 to Exit).
Entering Programming Mode:
MAX/MIN
LIMITS
KVAR
PF
KW
KV
A
FREQ
KWHKVAH
AC VOLTS
AC AMPS
POWER
NCB
A
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
V
OLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NC
B
A
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NC
B
A
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER

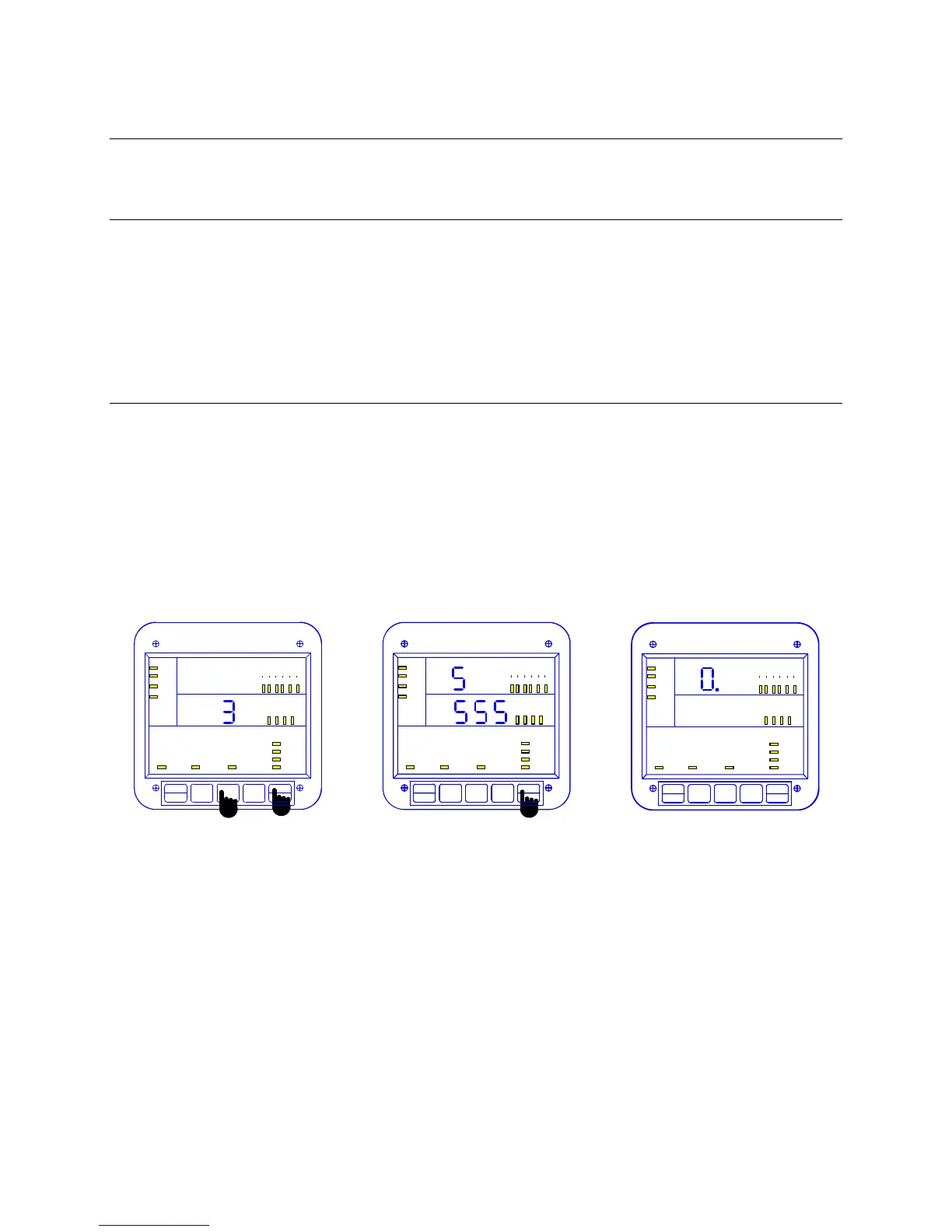

Step 1:
a. Press and hold PHASE/NEXT.
b. While holding PHASE/NEXT,
press AMPS until a number
appears in middle display. Then
release both buttons.
! If 3 is not already displayed:
c. Press AMPS until 3 appears.
d. Press PHASE/NEXT to multiply
the 3 to 333.
! 333 flashes momentarily in
middle display.
Step 2:
! Digits begin scrolling in upper
display.
⌦ The password is 555.
a. Press PHASE/NEXT each time
the digit 5 appears.
! Selected digits appear in middle
display.
! Display blanks and PPP flashes
in upper display, confirming a
correctly entered password.
! PPP is replaced by 0. and the
meter is now in Programming
Mode, GROUP 0.
! You are now in the Programming
Mode. CONGRATULATIONS!
