CHAPTER 14: EXITING PROGRAMMING MODE
GE Industrial Systems 5300P Advanced Power Meter 83
CHAPTER 14
EXITING PROGRAMMING MODE
NOTE: Steps to exit Programming Mode vary depending on the programming stage.
Exiting the Programming Mode is always necessary to store any new changes and to calculate a new
checksum. Failure to exit results in a checksum error: the display blanks and the max LED flashes.
I
F YOU ARE LOCATED IN A FUNCTION Level—begin at Step 1.
IF YOU ARE LOCATED IN A GROUP Level—begin at Step 2.
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQKWH
KVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
V
OLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
A
MPS
POWER

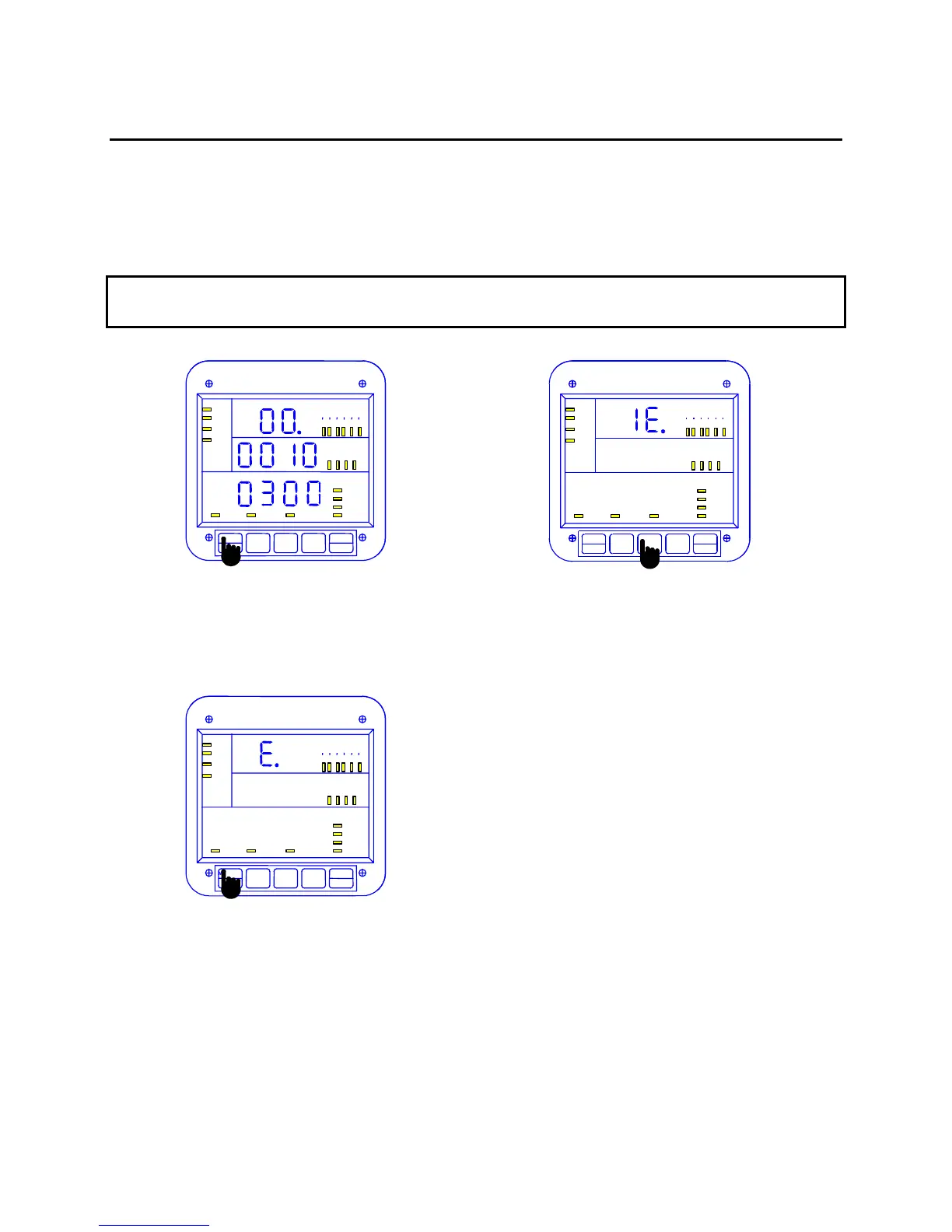

Step 1:
EXITING FROM FUNCTION LEVEL
a.
Press MAX/MIN/LIMITS until the Group number in
upper display is followed by E (for Exit).
! The meter returns to Function Level.
Step 1a.:
a. Press AMPS to exit from Function Level to Group
Level.
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWHKVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
Step 2:
EXITING FROM GROUP LEVEL
a. Press MAX/MIN/LIMITS until E. appears in upper
display (for Exit).
b. Press AMPS to exit entirely from Programming
Mode.
