CHAPTER 6: PROGRAMMING OVERVIEW
38
EPM 5000 series Advanced Power Meters GE Multilin
6.3: Programming Mode Data Entry

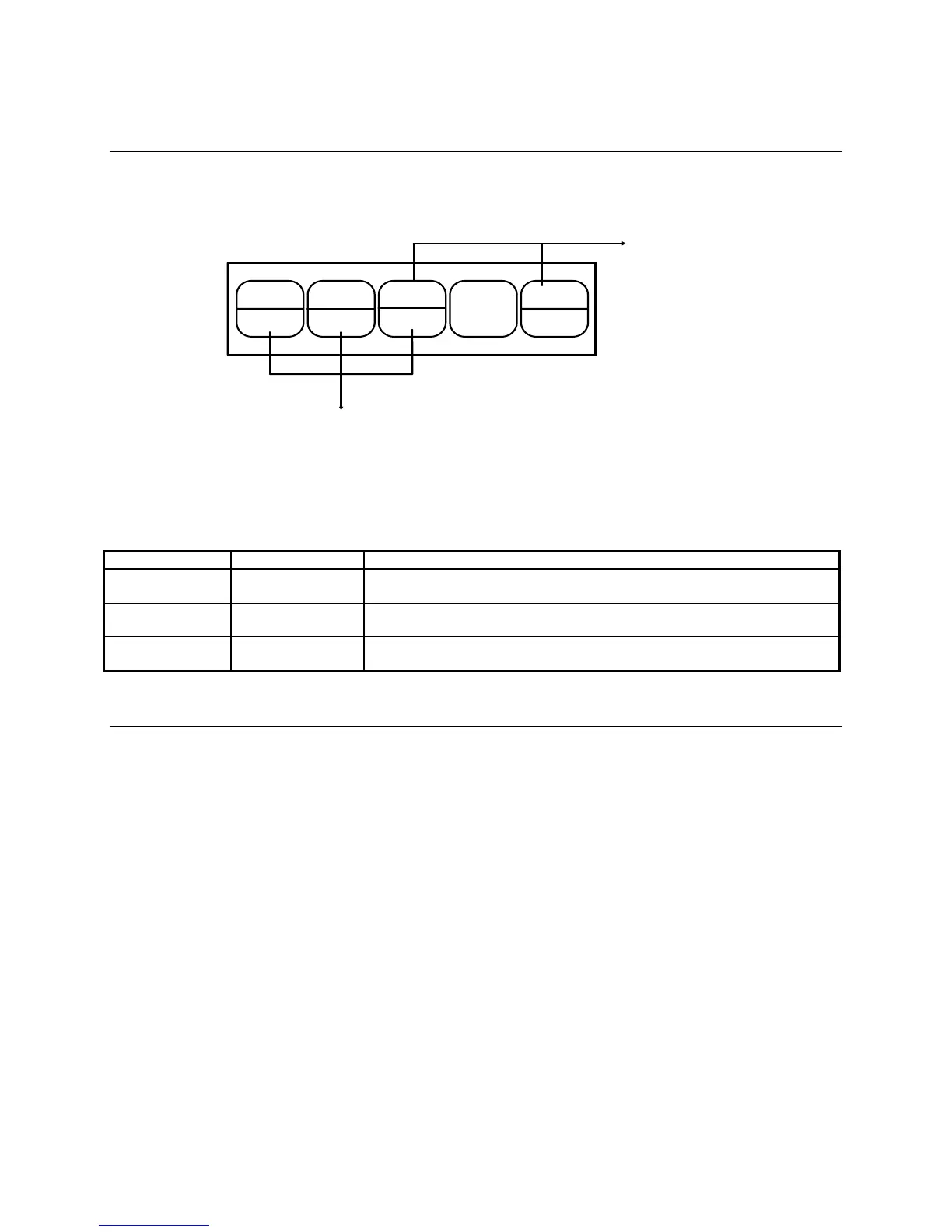

The EPM 5300P and EPM 5200P programming mode utilizes only three out of the five-keypad buttons:
the MAX/MIN/LIMITS, VOLTS/THD, and AMPS/THD buttons.
THD THD
MAX/MIN
LIMITS
VOLTS
MPS
POWER
PHASE
NEXT
USED FOR PROGRAMMING
USED FOR
PASSWORD ENTRY
Note: The EPM 5200P uses the same keypad strokes and methods. Although the keypad may look
slightly different, the keys match the EPM 5300P exactly. In the interest of brevity, all keystrokes and
programming functions are shown using the EPM 5300P keyboard.
BUTTON FUNCTION DESCRIPTION
MAX/MIN/LIMITS ADVANCES Scrolls GROUPS, FUNCTIONS and advances to exit point from
FUNCTION and GROUP level.
VOLTS/THD CHANGES
VALUE
Scrolls PACKS, digit counters and changes switch PACK position UP or
DOWN.
AMPS/THD STORES Activates new data entry and enters or exits from GROUP or FUNCTION
level.
6.4: Standard Numeric Data Entry
Programmable FUNCTION values are always four digit numerical fields designed to accept any value
between 0000 and 9999 (a blank signifies a zero). When entering the value of a FUNCTION, enter all
four digits, leading zeros included. For instance, to enter the number 25, enter 0025.
