GE EPM 5300 User Manual

CHAPTER 9: PROGRAMMING GROUP 0 – GLOBAL METER SETUP
GE Multilin EPM 5000 series Advanced Power Meters 57
HOW TO USE KYZ PULSE VALUE TABLE FOR MULTIPLICATION:
S
ITUATION 1: FSW=9999.
• Selection is Multiply by 2
• This means that every .5 unit WH =1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 1 KWH increment on the
counter, the meter will output 2 pulses.
S
ITUATION 2: FSW=999.9
• Selection is Multiply by 2
• This means that every .05 unit WH=1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 1 KWH increment on the
counter, the meter will output 20 pulses.
S
ITUATION 3: FSW=99.99
• Selection is Multiply by 20
• This means that every .0005 unit WH=1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 1 KWH increment on the
counter, the meter will output 2,000 pulses.
S
ITUATION 4: FSW=9.999
• Selection is Multiply by 20
• Unit=Kilo (see Group 1, Function 2)
• This means that every .00005 WH=1 pulse.
• Result: For every 1 KWH increment on the
counter, the meter will output 20,000 pulses.
HOW TO USE THE KYZ PULSE VALUE TABLE FOR DIVISION:
S
ITUATION 1: FSW=9999.
• Selection is Divide by 10
• This means that every 10 unit WH=1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 10 KWH increment on the
counter, the meter will output 1 pulse.
S
ITUATION 2: FSW=999.9
• Selection is Divide by 10
• This means that every 1 unit WH=1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 1 KWH increment on the
counter, the meter will output 1 pulse.
S
ITUATION 3: FSW=99.99
• Selection is Divide by 20
• This means that every .2 unit WH=1 pulse.
• Unit=Kilo (see Group 1, Function 2)
• Result: For every 1 KWH increment on the
counter, the meter will output 5 pulses.
S
ITUATION 4: FSW=9.999
• Selection is Divide by 20
• Unit=Kilo (see Group 1, Function 2)
• This means that every .02 WH=1 pulse.
• Result: For every 1 KWH increment on the
counter, the meter will output 50 pulses.

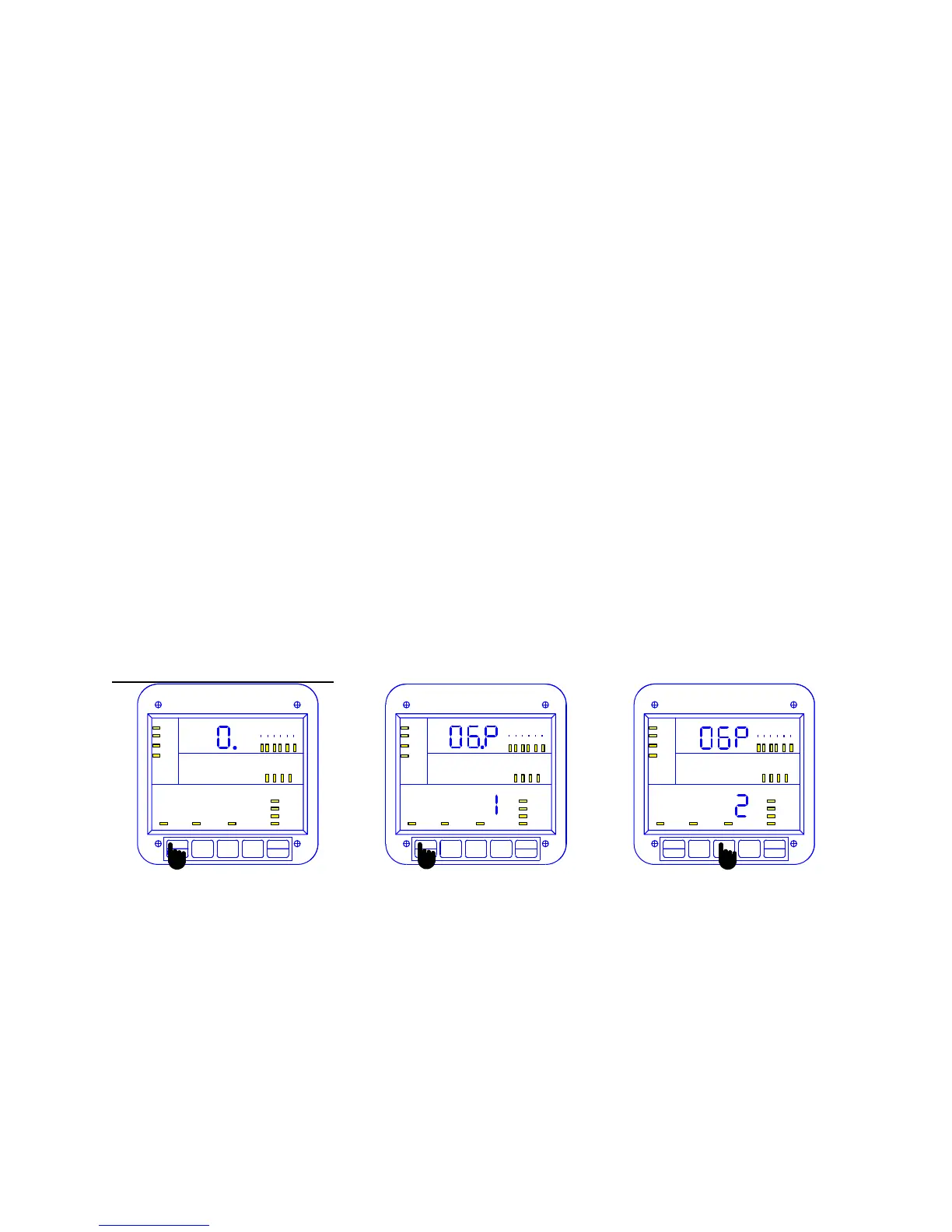

To change the KYZ pulse value:
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWHKVAH
AC VOLTS
AC AMPS
POWER
NC
B
A
MA
X
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
V
OLTS
AMPS
POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NCBA
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER
Step 1:
a. Enter Group Level of
Programming Mode, (see Chp. 8).
b. Press MAX/MIN/LIMITS until 0.
appears in upper display.
c. Press AMPS to activate the
Group.
Step 2:
a. Press MAX/MIN/LIMITS until 06.P
appears in upper display.
! The lower display indicates
multiplication or division factor.
Step 3:
a. Press AMPS to change current
setting.
! The decimal point next to the 6
disappears.
b. Press MAX/MIN/LIMITS to
advance selections. -or-
c. Press VOLTS to reverse.
(Until desired factor appears).
! Division is indicated by div
appearing in the middle display.
When middle display is blank, it
indicates multiplication.
d. Press AMPS to store.
