CHAPTER 11: PROGRAMMING GROUP 2 – METER CALIBRATION
70
EPM 5000 series Advanced Power Meters GE Multilin
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ
KWH
KVAH
AC VOLTS
AC AMPS
POWER
NC
B
A
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS
AMPS
POWER

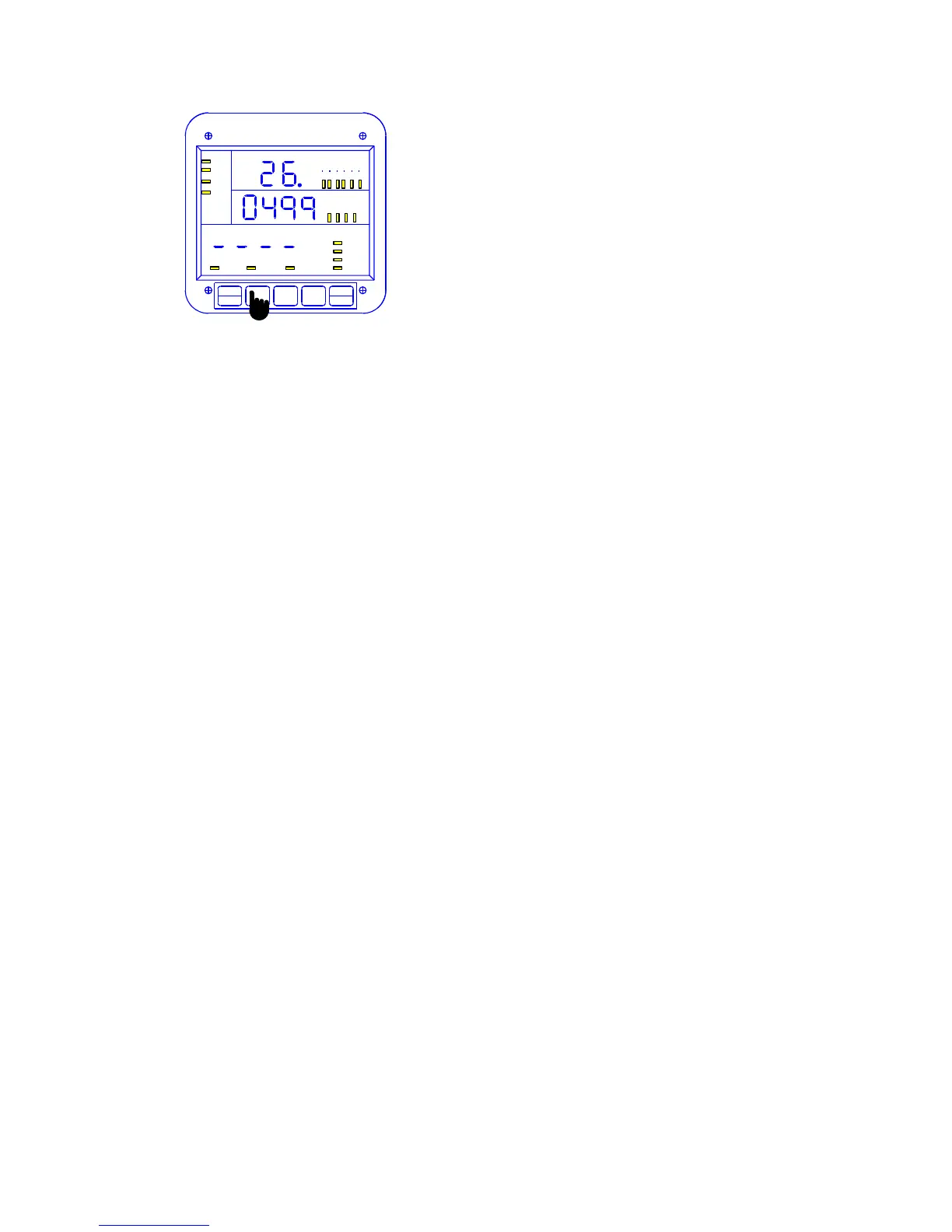

Step 3:
! New value moves to middle display.
! Lower display indicates the calibrated reading
after 10-15 seconds.
! To enter the half scale value in lower display,
a. Press VOLTS to select digits.
b. Press AMPS to store and proceed to B or C within
the group.
c. Press MAX/MIN/LIMITS to end calibration
procedure.
See Chapter 14 to Exit.
To Next Page
