– 39 –

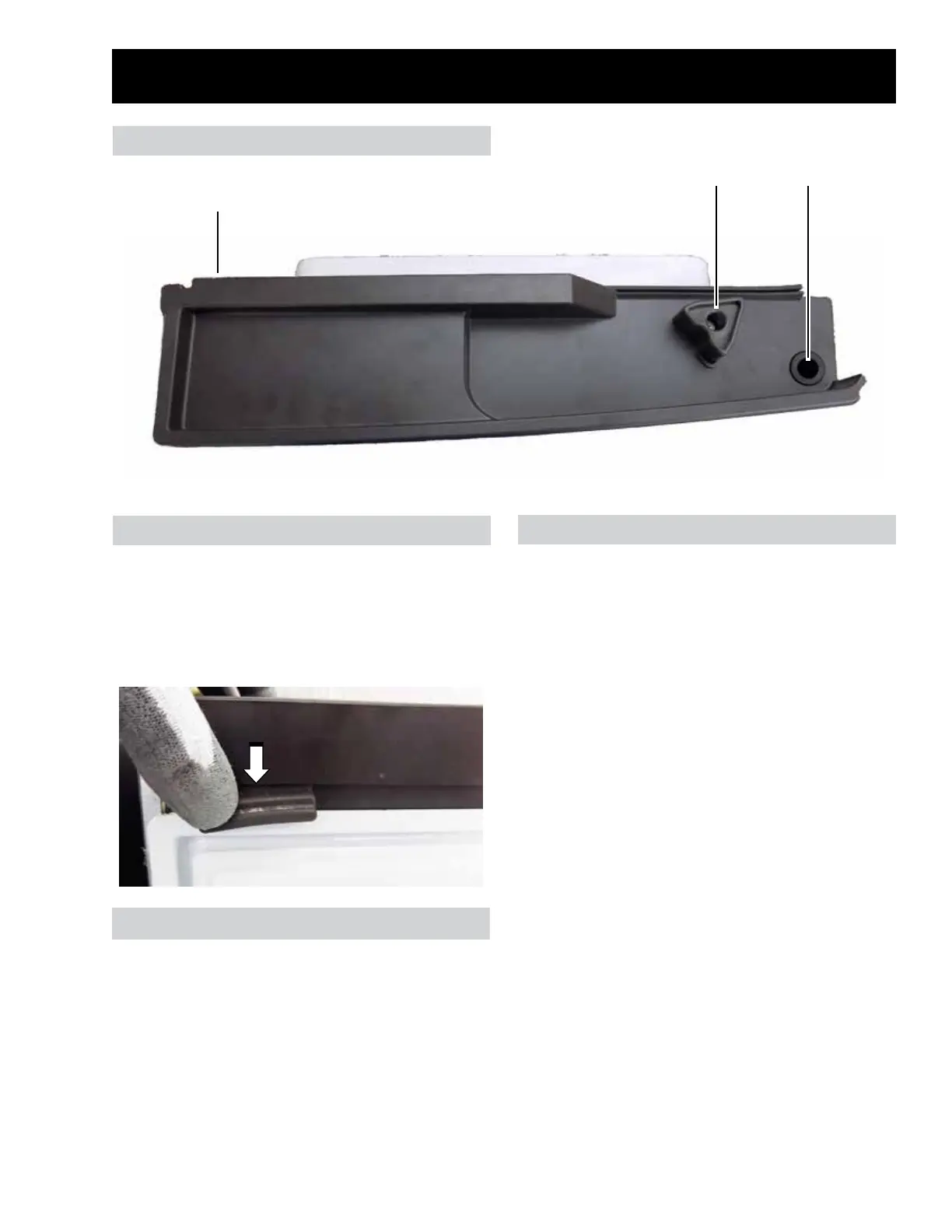

Door - Top
Top Door Bumper Removal
1. Remove the door gasket.
2. Push down on the door bumper to remove it
from the door.
Closure
Cam
Top Hinge
Bushing*
Top Door
Bumper
*The door harness and water line will pass through the top hinge bushing on dispenser doors.
Closure Cam
The spring-loaded closure from the hinge rolls
across the closure cam to close the door when
the door is a couple inches from closing.
Closure Cam Removal
1. For the side needing to be removed, follow
Top Left Door Hinge Removal steps, under
Top Door Hinges in the Cabinet Top section
of this service guide.
2. Remove one T20 Torx head screw.
The top hinge inserts into the top bushing. If
worn, the bushing can be replaced.
Top Hinge Bushing Removal
1. For the side needing to be removed, follow
Top Left Door Hinge Removal steps, under
Top Door Hinges in the Cabinet Top section
of this service guide.
2. Using a putty-knife of at-blade screwdriver
pry the bushing from the top of the door.
Door - Top Component Locator
Top Door Bumper
Top Hinge Bushing
