– 60 –

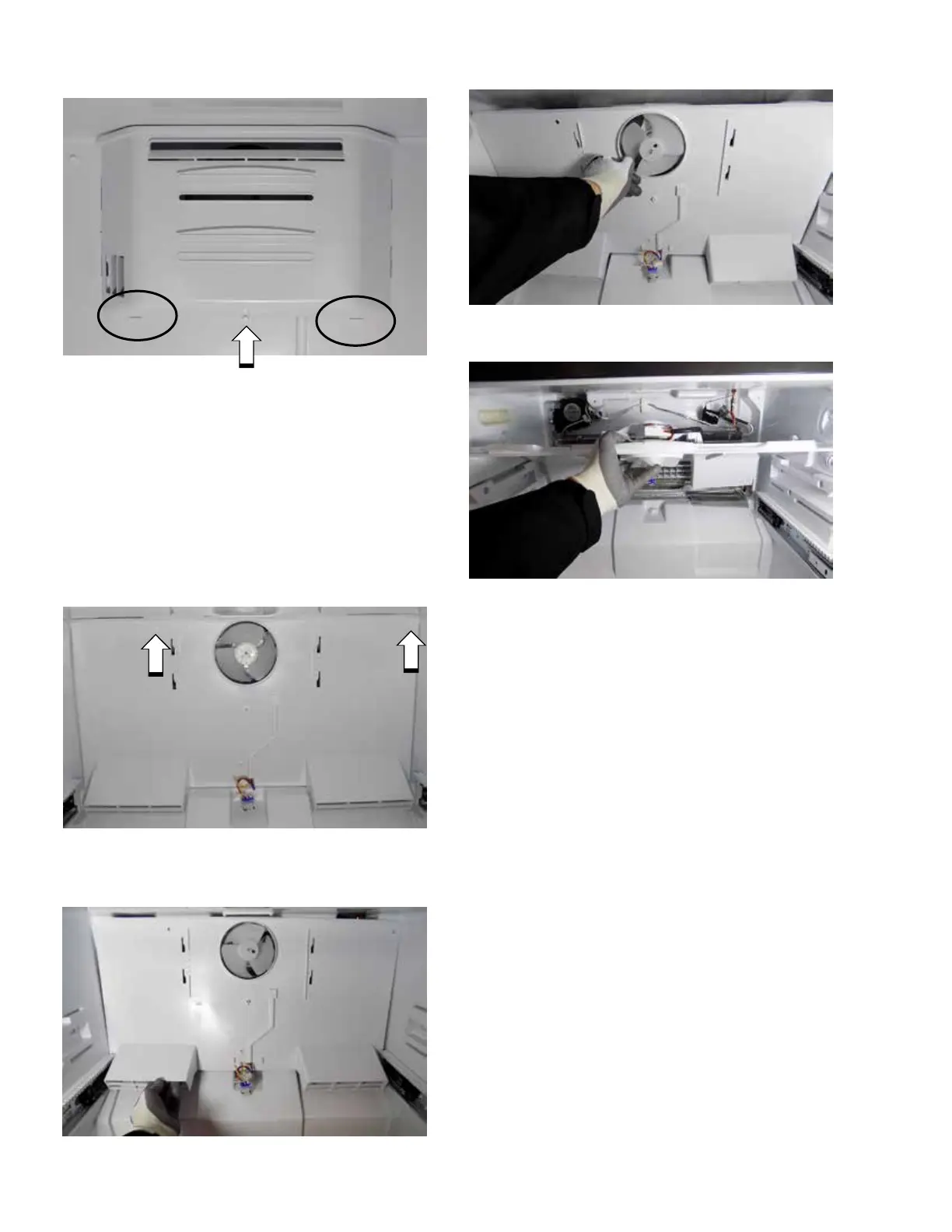

6. Remove one 1/4 in. hex-head screw for the
evaporator fan cover.
7. Using a at-blade screwdriver or putty-knife,
gently pry the lower corners of the fan cover
away from the tabs of the evaporator cover
(circled in the above image) while pushing
down on the fan cover.
8. Once the fan cover is in the down position,
pull the fan cover o the evaporator cover.
9. Remove two 1/4 in. hex-head screws from the
evaporator cover.
10. Pull the bottom of the cover out and down as
much as the lower rails will allow.
11. Grab the evaporator cover from the fan
opening and tilt the evaporator cover down.
12. Grab the top of the evaporator cover and pull
the cover out of the freezer.
To Next Page
