– 75 –

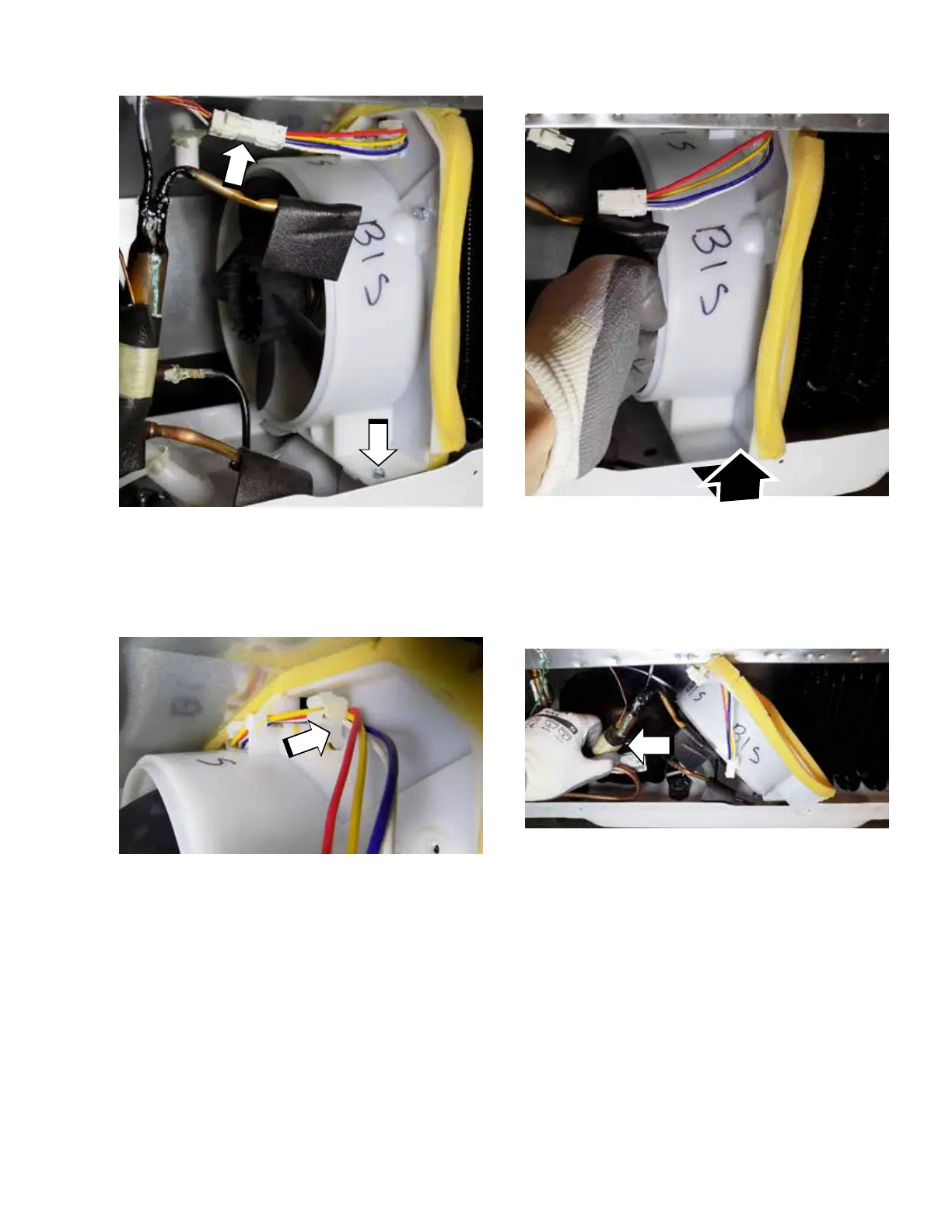

3. Disconnect the harness connector and
remove the lower 1/4 in. hex-head screw.
4. Clip and remove the wire tie at the top of the
condenser fan shroud (this wire tie is present
to ensure the shroud stays in place during
shipping and does not need to be replaced
during reassembly).
5. Pull the shroud towards the base pan then
up to release the shroud from the mounting
bracket underneath the shroud.
6. Once the shroud is released from the
mounting bracket, tip the shroud towards the
compressor.
7. Carefully push the drier towards the left
to provide the shroud with an opening for
removal.
8. Pull the shroud and fan assembly out of the
machine compartment.
9. Pull the fan blade from the motor shaft.
(Continued next page)
