Chapter 1 — Installation and Initial Setup
Page
7
clean, oil-free gas, regulated at 1 to 2 psig at 5 lpm (minimum).
Connect the dry air or dry nitrogen source using the 1/
4”
“instant-
on”
DRY AIR IN
connector on the rear of the unit. See

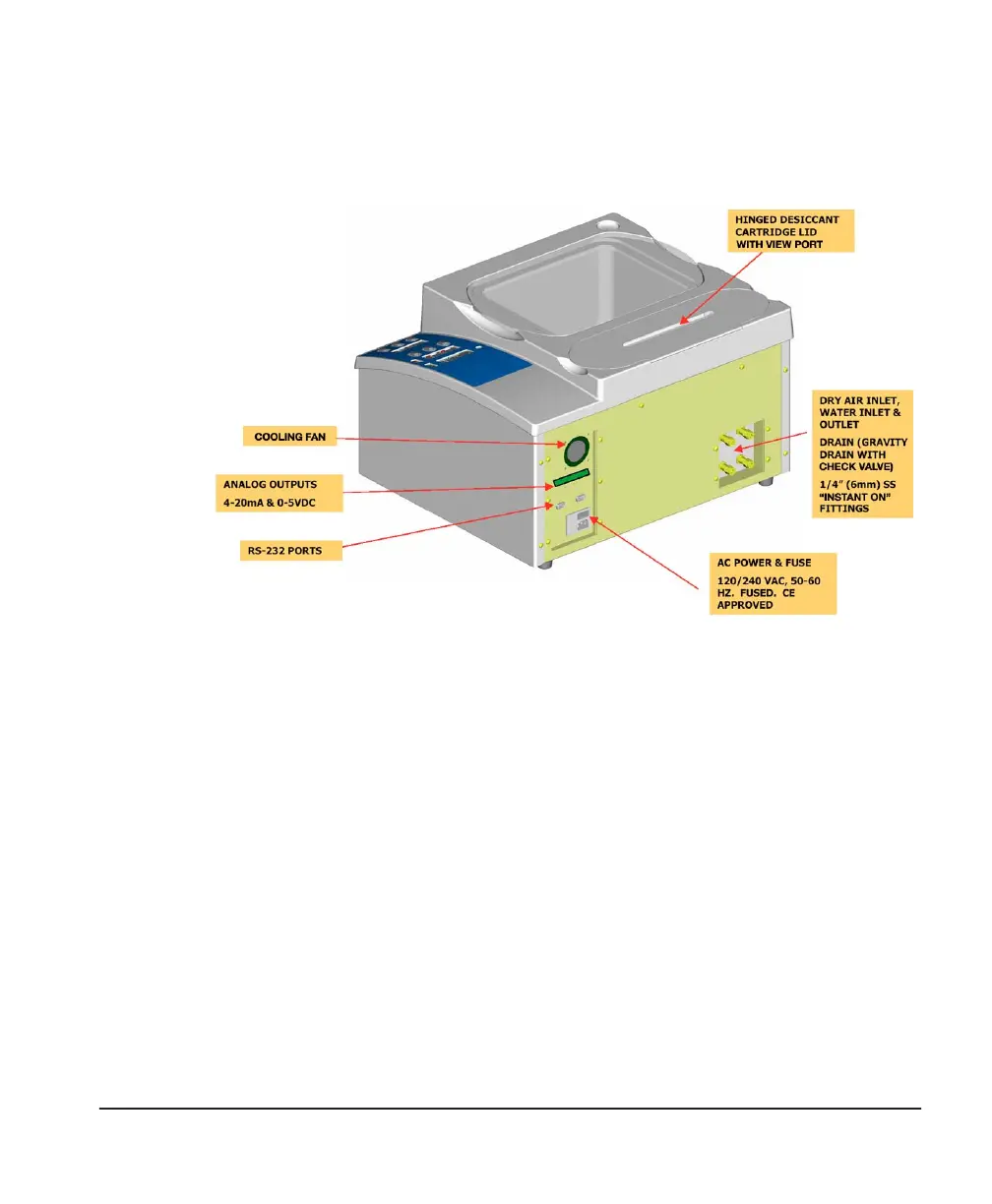

Figure 2, Humilab Rear View
.
Figure 2 —
Humilab rear view (gas, A/C, a
nd signal c
onnections)
10
12
