Hydran* M2-X Installation Guide
Page 18
MA-028 Rev. 2.1, 11-Jun-20
circulation and is easily accessible for installation and taking oil samples
directly from the Hydran M2-X.
Location #D: Upper Filling Valve
Most transformers are equipped with an upper filling valve. This location
offers excellent oil circulation, but is not easily accessible and may require an
outage to install the Hydran M2-X.
Location #E: Top of Cooling System
Some transformers may have a valve that is mounted on the pipe that joins
the top tank of the transformer to the top of the cooling system. This location
offers an excellent circulation of oil; but is not easily accessible and may require
an outage to install the Hydran M2-X.

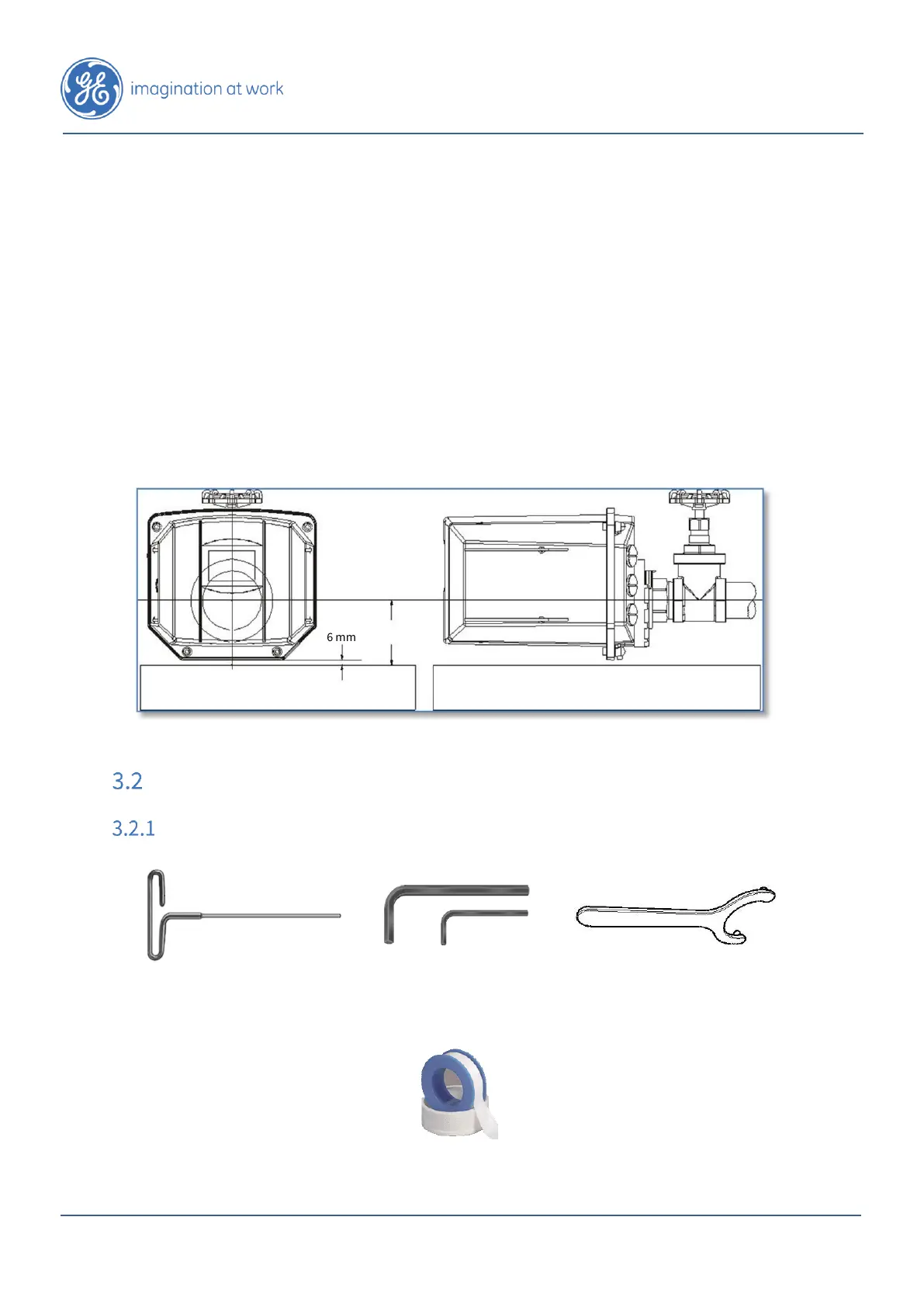

Figure 12: Bottom Clearance
Tools for installation
Supplied with the Hydran M2-X
3/16-in Hex Key with 9-in
Blade & Cushion Grip T- Handle
1/16-in and 5-32-in
standard Hex (Allen) L-
Keys
Spanner wrench
Roll of PTFE tape
6 mm
(0.25 in)
84 mm
