Page
33
Hydran* M2-X Ins
tallation Guide
MA
-
028
Rev. 2.1,
11
-Jun-
20

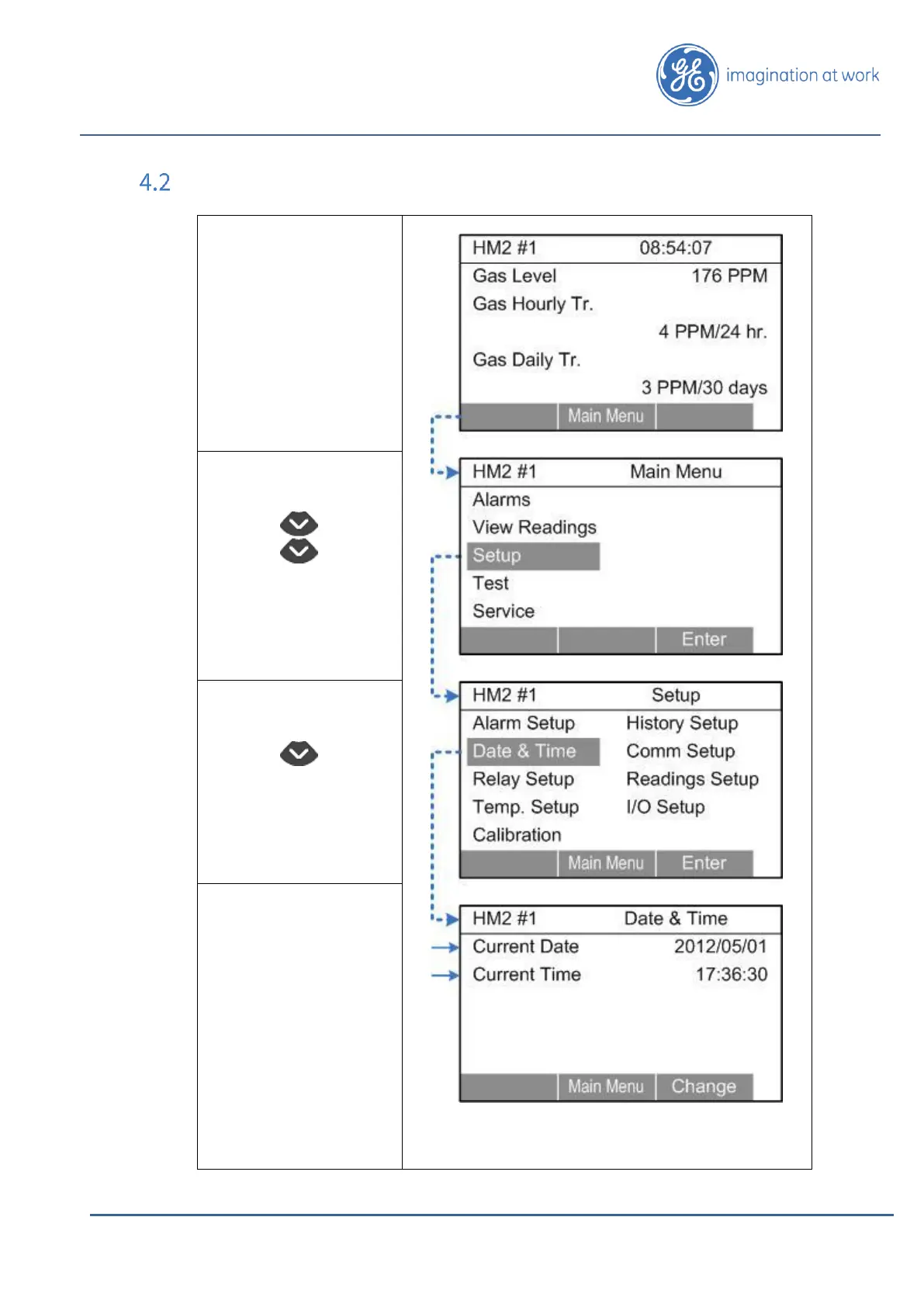

Setting the Date
and Time
Press
Main Menu
Select
Setup
Press
Enter
Select
Date & Time
Press
Enter
Select
Current Date
Press
Change
and set
date
Select
Current Time
Press
Change
and set
time
32
34
Table of Contents
Default Chapter
2
Copyright Notice and Proprietary Rights
2
Trademark Notices
2
Customer Service
2
Table of Contents
3
1 Preliminary Information
5
Safety Warnings in Six Languages
5
[EN] (in English) WARNINGS
5
[FR] (in French) ATTENTION
5
[ES] (in Spanish) ADVERTENCIA
5
[DE] (in German) WARNUNG
6
[IT] (in Italian) ATTENZIONE
6
[SV] (in Swedish) VARNING
6
Safety Symbols Description
7
Preface
7
Standard GE Warranty
8
2 General Cautions & Warnings
11
3 Installation
16
Mounting Locations of the Hydran M2-X
16
Tools for Installation
18
Supplied with the Hydran M2-X
18
To be Supplied by the Installer
19
3.3 Mounting the Hydran M2-X on a Valve
21
Installing the Cables
26
Installing the Cable Conduits and Gland Fittings
26
4 Software Configuration
32
User Interface Overview
32
Setting the Date and Time
33
Testing the Sensor
34
Setting Gas Level Alarm Parameters
35
Setting Moisture Level Alarm Parameters
36
Setting the Network Communication Parameters
38
Setting the Optional Analog Input Parameters
40
Setting the Optional Analog Output Parameters
44
Installing the Cover
46
Commissioning
47
5 Communications & Networking
48
Forming a Local Network of Hydran M2-Xs
48
Connecting the Hydran M2-X to Hydran 201Ci Controllers
50
Connecting the Hydran M2-X to a D25
51
Appendix A : Technical Specifications for the Hydran M2-X
52
General
52
