Hydran* M2-X Installation Guide
MA-028 Rev. 2.1, 11-Jun-20
3.3 Mounting the Hydran M2-X on a Valve

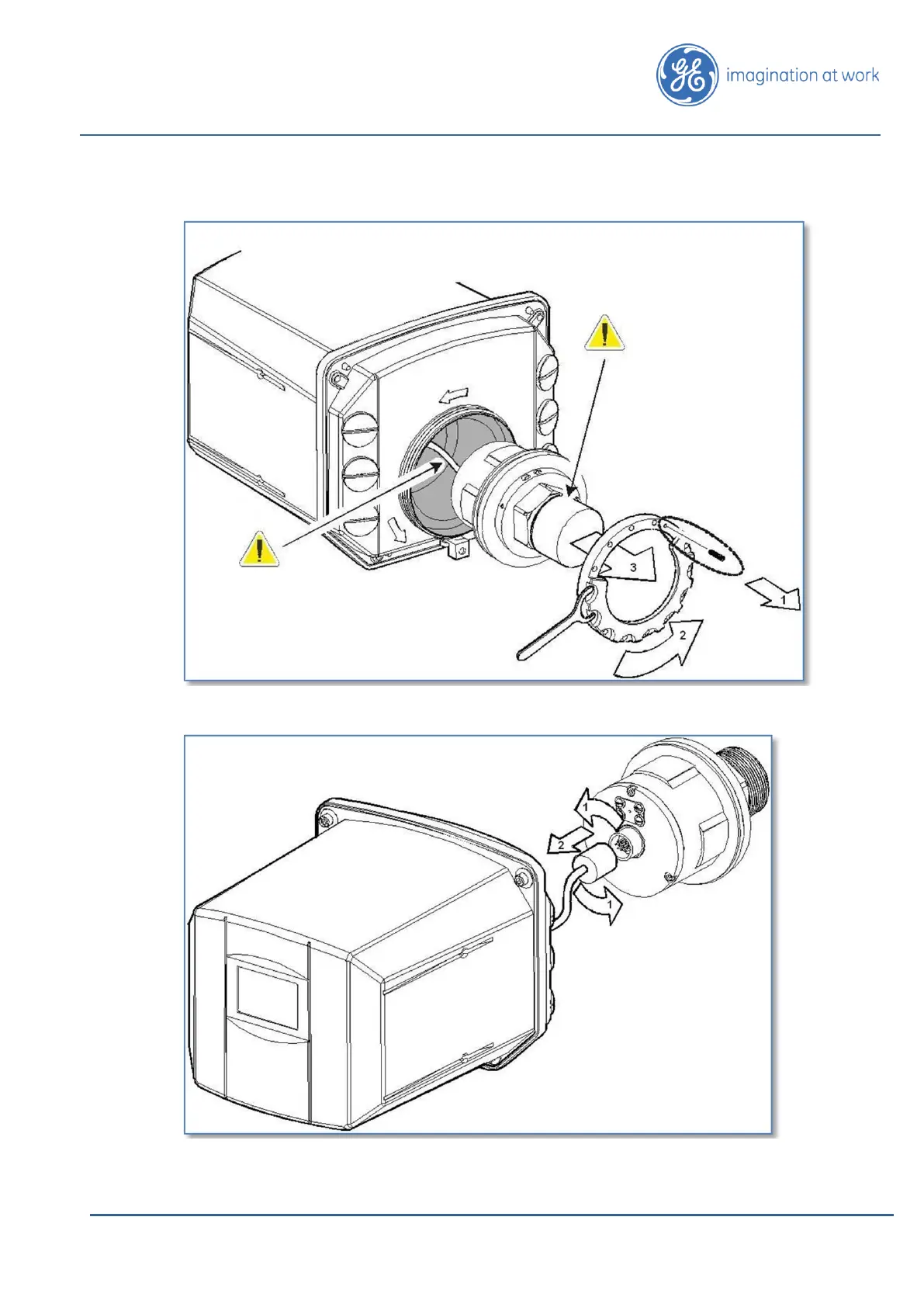

Figure 14: Separating the Sensor from the Hydran M2-X
Figure 15: Disconnecting the Sensor Cable
Always wrap the tape
counter to the threads, as
CAUTION
Sensor cable
CAUTION
Oil on sensor
1. Remove set screw.
2. Remove clamp using spanner wrench.
3. Carefully pull out sensor.
1. Rotate sensor connector anti-clockwise
(approximately 1/8 turn).
2. Pull connector from sensor.
