GE Hydran M2-X - Possible Configurations; External Components

Page 25
Hydran* M2-X Installation Guide
MA-028 Rev. 2.1, 11-Jun-20

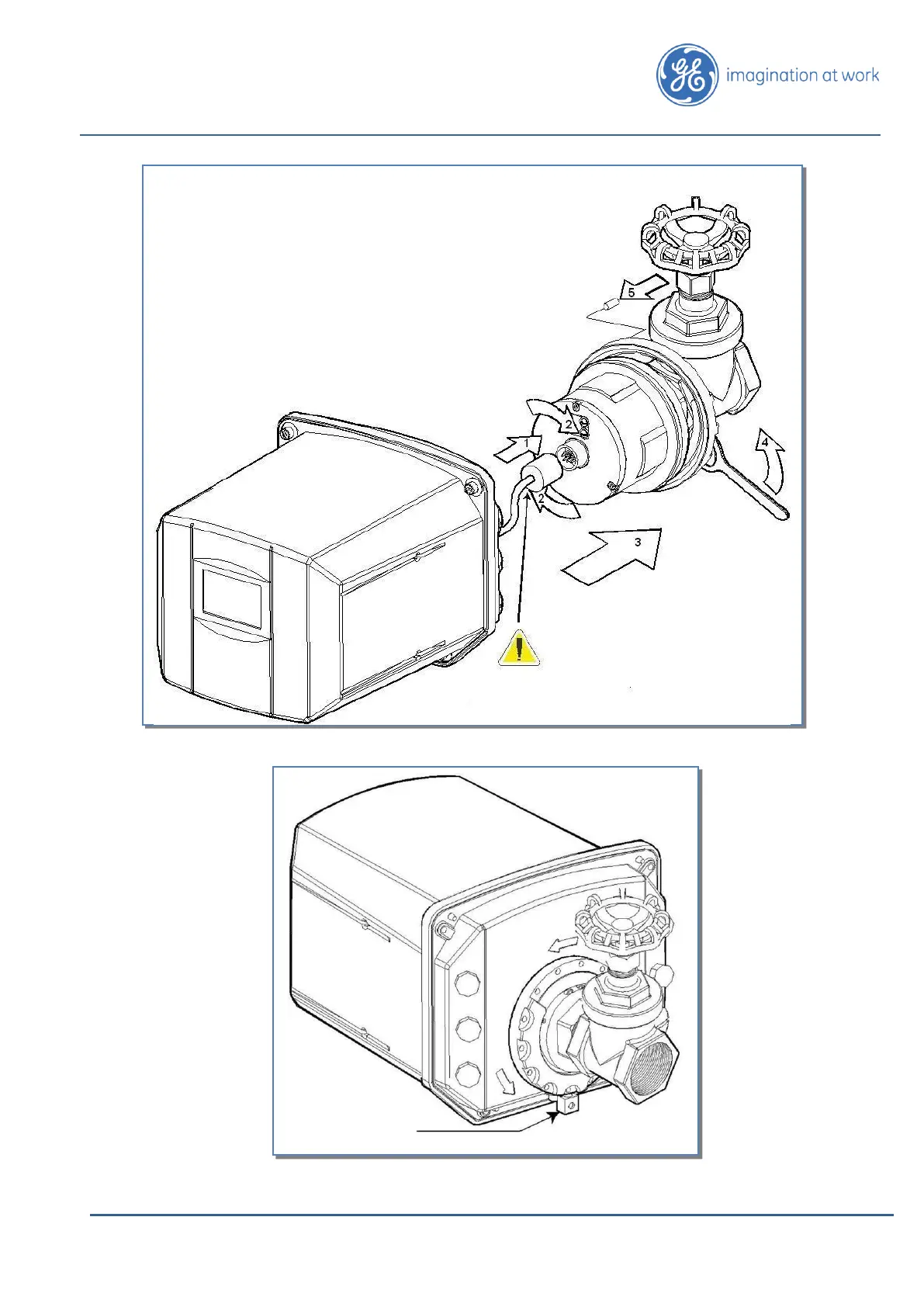

Figure 20: Installing the Hydran M2-X on the Sensor
Figure 21: Grounding the Hydran M2-X Enclosure
1. Insert the sensor cable connector into the sensor connector.
2. Rotate connector clockwise (approximately 1/8 turn).
3. Position the enclosure and push it on to the sensor; taking
care not to squeeze the sensor cable between the sensor and
the enclosure.
4. Apply a thin layer of anti-seize lubricant to the threads of the
M2-X base plate before attaching the brass ring.
5. Install the sensor clamp and tighten it using the supplied
spanner wrench.
6. Tighten set screw using 1/16-in Allen key.
Connect ground wire
to ground lug using a
10-6 AWG copper
