Hydran* M2-X Installation Guide
MA-028 Rev. 2.1, 11-Jun-20
Turn off the electric power at the switch or
circuit breaker provided for disconnection
before making any electrical connections, and
ensure a proper ground connection is made
before connecting line voltage. Failure to do so
can result in property damage, personal injury
and/or death.
A 10 A to 15 A circuit meeting these requirements must be available for the
Hydran M2-X at the time of installation. The installation must be done in accordance
with local wiring regulations. Disconnection is through an external circuit breaker or
switch that must be installed on the mains supply line near the unit. The switch or
circuit breaker must be installed in accordance with local wiring regulations.

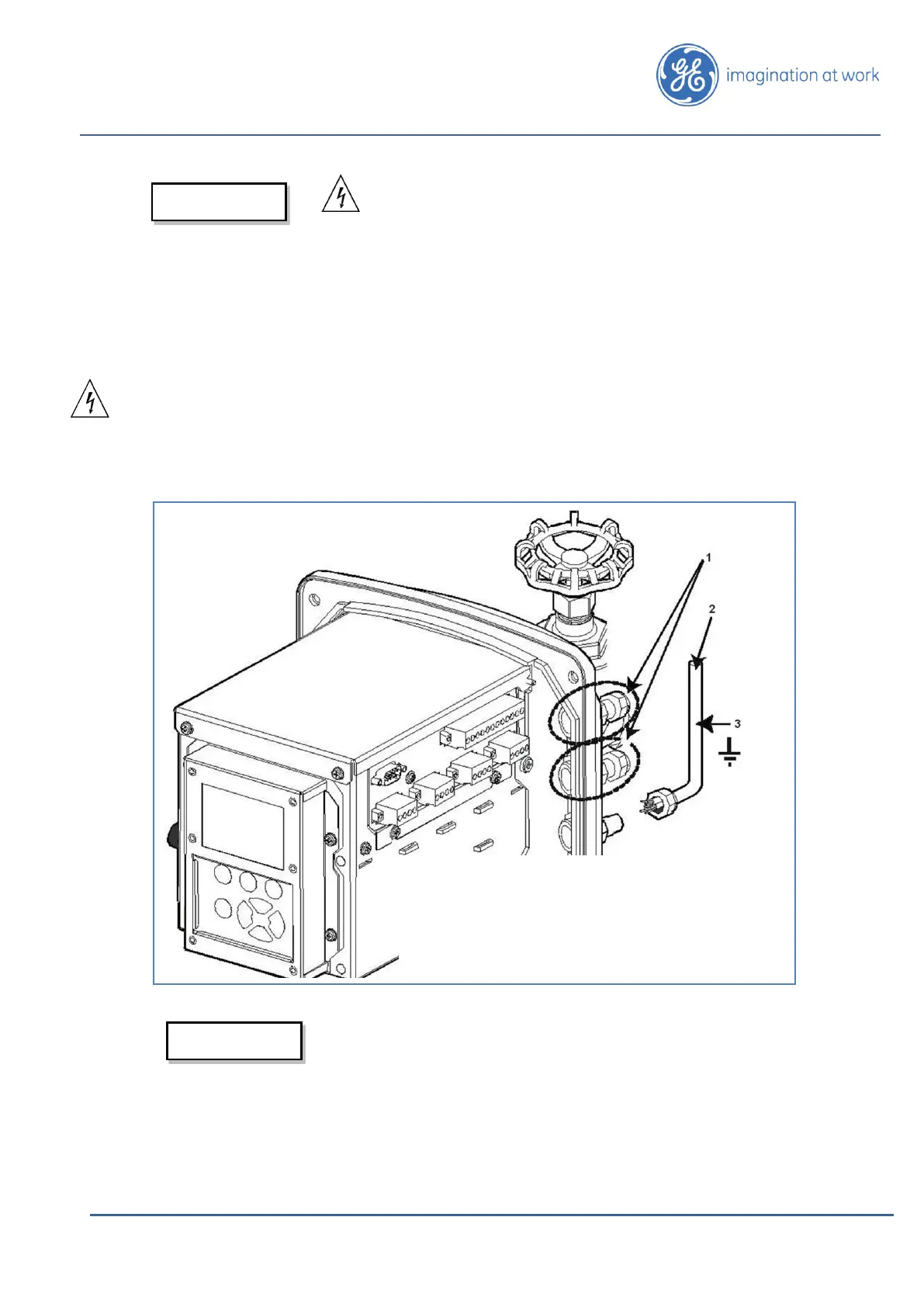

Figure 23: Installing Cable Conduits
Failure to use GE recommended style of cable conduit and connecting gland
fitting, plus their associated installation requirements, will void all product
warranty should the Hydran unit become damaged from external elements such
as Water Ingress via cables and cable fittings
1. Watertight conduit fitting with locknuts and sealing
gaskets (minimum IP56 – hole diameter ½”
2. Flexible steel liquid tight conduit required.
3. Ground all metallic conduits.
4. Ensure that the plugs of all unused openings are
To Next Page
