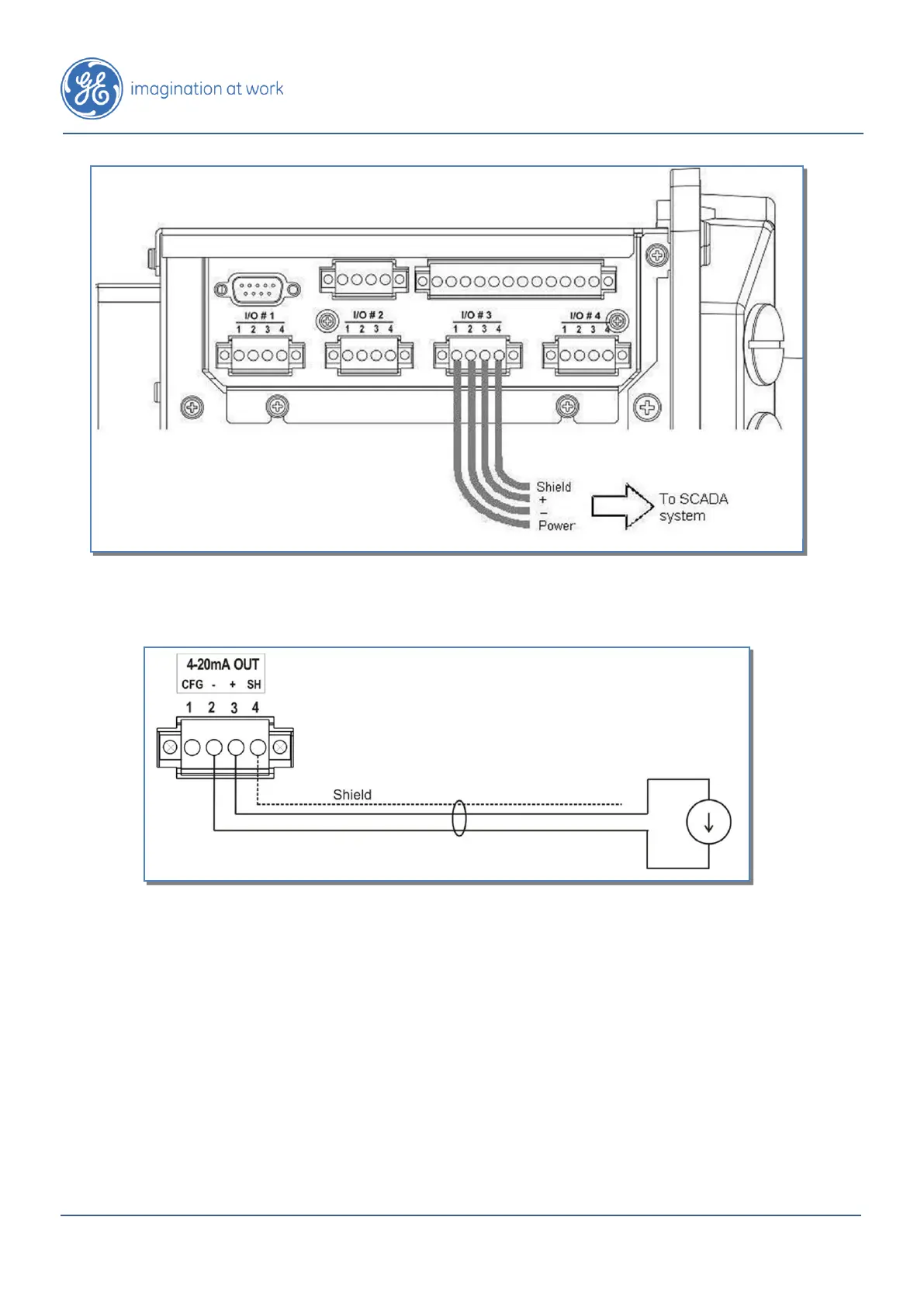

Figure 27: General Wiring of the Analog Output Terminal Block
Figure 28: Wiring of the 4-20 mA Analog Output Terminal Block
SCADA
4-20 mA
Input
Note: This optional Analog Output
board can be installed at any of the
four I/O locations.
