Hydran* M2-X Installation Guide
MA-028 Rev. 2.1, 11-Jun-20

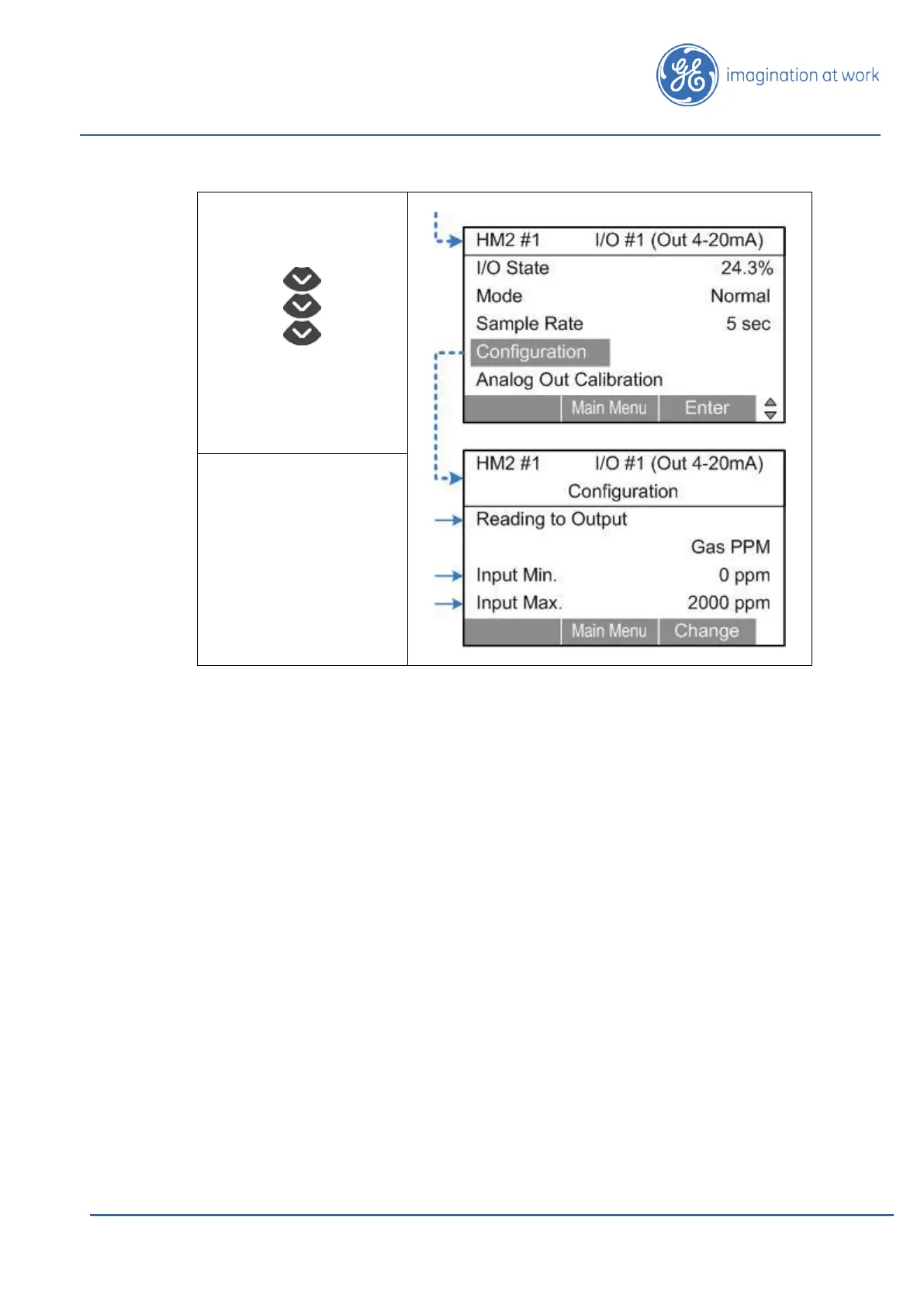

Select Configuration
Press Enter
Set up all the
Configuration
parameters as required.
Notes:
• Input Min is the lowest possible reading for this signal; this value will deliver a
current output corresponding to 4 mA.
• Input Max is the highest possible reading for this signal; this value will deliver
a current output corresponding to 20 mA.
• Repeat the above procedure for each analog output.
