Installation Instructions

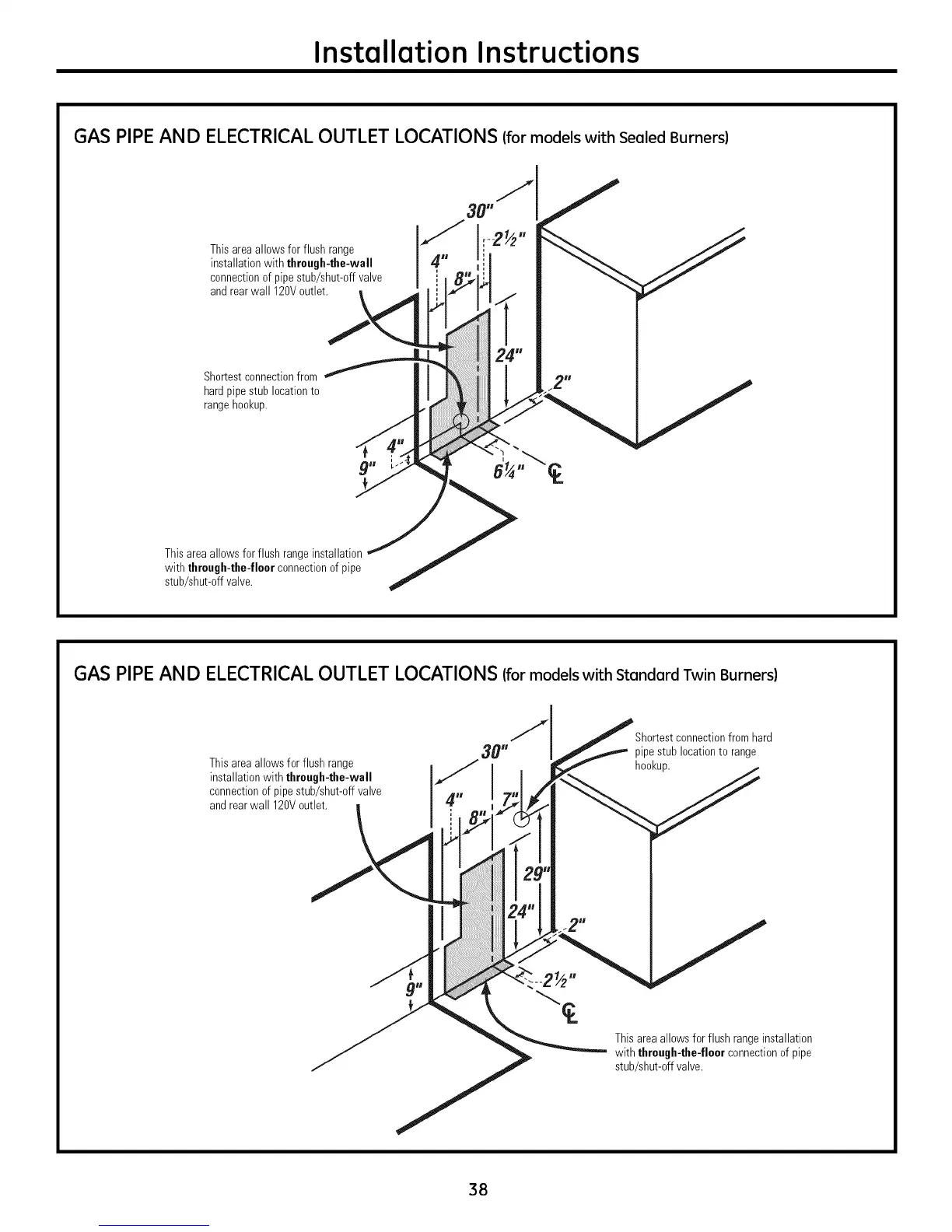

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS (formodels with Sealed Burners)
Thisareaallows for flush range
installationwith through-the-wall
connectionof pipestub/shut-off valve
and rearwall 120Voutlet.
\
Sho_estconnectionfrom
hardpipe stublocationto
rangehookup.
This areaallows for flush rangeinstallation
with through-the-floorconnectionof pipe
stub/shut-offvalve.
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS (formodels with Standard Twin Burners)
Thisareaallows for flushrange
installationwith through-the-wall
connectionof pipestub/shut-offvalve
and rearwall 120Voutlet.
Shortestconnectionfrom hard
pipestub locationto range
hookup.
Thisareaallowsfor flush rangeinstallation
with through-the-floorconnectionof pipe
stub/shut-offvalve.
38
