Installation Instructions

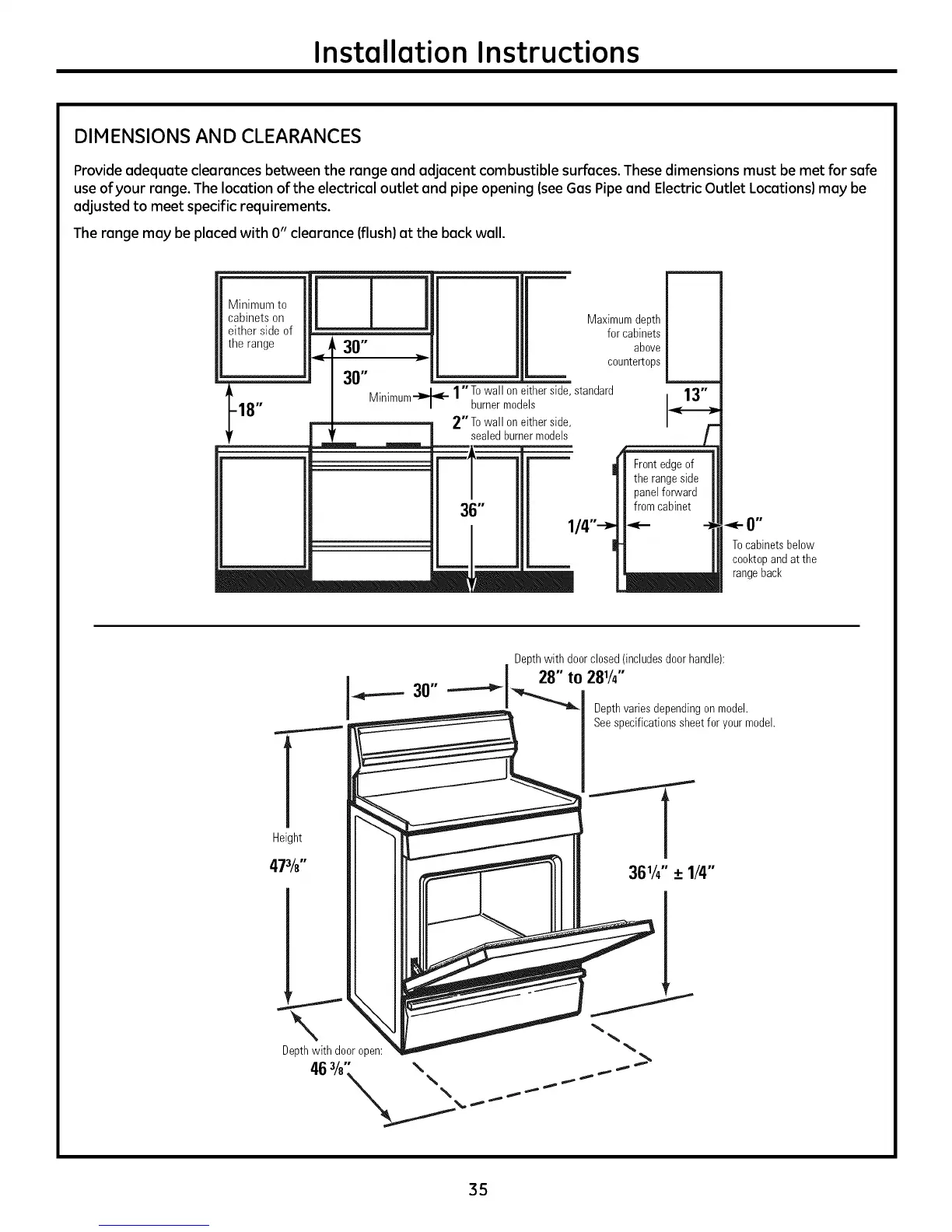

DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be met for safe
use of your range. The location of the electrical outlet and pipe opening (seeGasPipe and Electric Outlet Locations) may be
adjusted to meet specific requirements.
The range may be placed with 0" clearance (flush) at the back wall.
Minimum to
cabinets on
either side of
the range
Jlm__
<, 30"
30"
Maximumdepth
for cabinets
above
countertops
t .... I_ l"T° wall on either side standard
18" ivllnlmum-'_"_- burnermodels
-- 2"To wall on either side
E _ _ sealed burnermodels
36"
0"
Tocabinetsbelow
cooktopandat the
rangeback
Depthwith doorclosed(includesdoorhandle):
28" to
Depthvaries dependingon model.
Seespecificationssheetfor your model.
Height
47¾"
Depthwith dooropen:
46%" \\\
35
