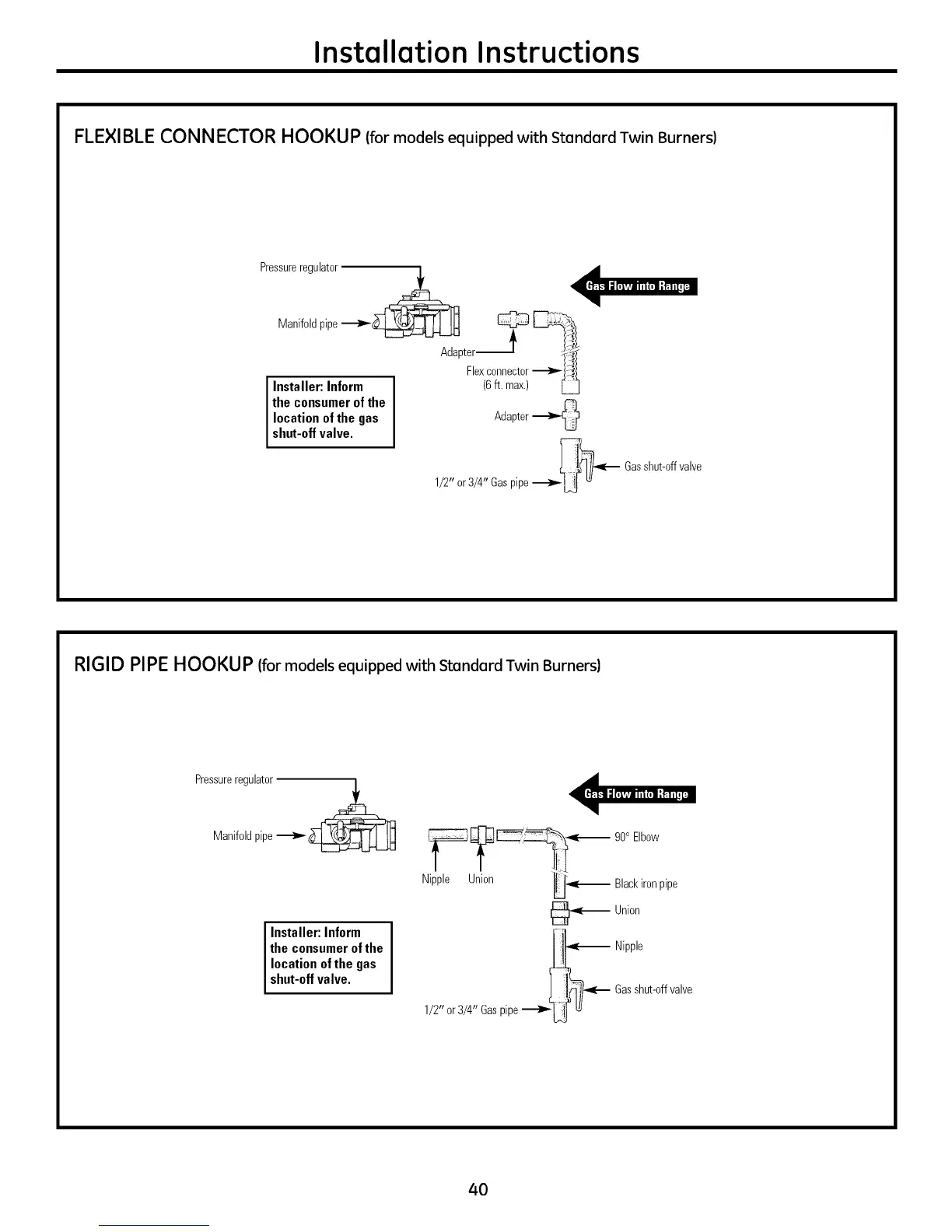

Installation Instructions
FLEXIBLE CONNECTOR HOOKUP (for models equipped with Standard Twin Burners)
Pressureregulator
Manifoldpipe"_'-_
Adapter _ _Flexconnector
Installer: Inform (6ft. max.)
the consumer of the
location of the gas Adapter
shut-off valve.
1/2" or3/4" Gaspipe__ Gasshut-offvalve
RIGID PIPE HOOKUP (for models equipped with Standard Twin Burners)
Pressureregulator
Manifoldpipe__
Installer:Inform
the consumerof the
locationofthe gas
shut-offvalve.
__ 90° Elbow
Nipple Union _ Blackironpipe
_ Union
_ Nipple
L-_lf "_'_ Gasshut-offvalve
1/2" or3/4" Gaspipe_U _
4O
