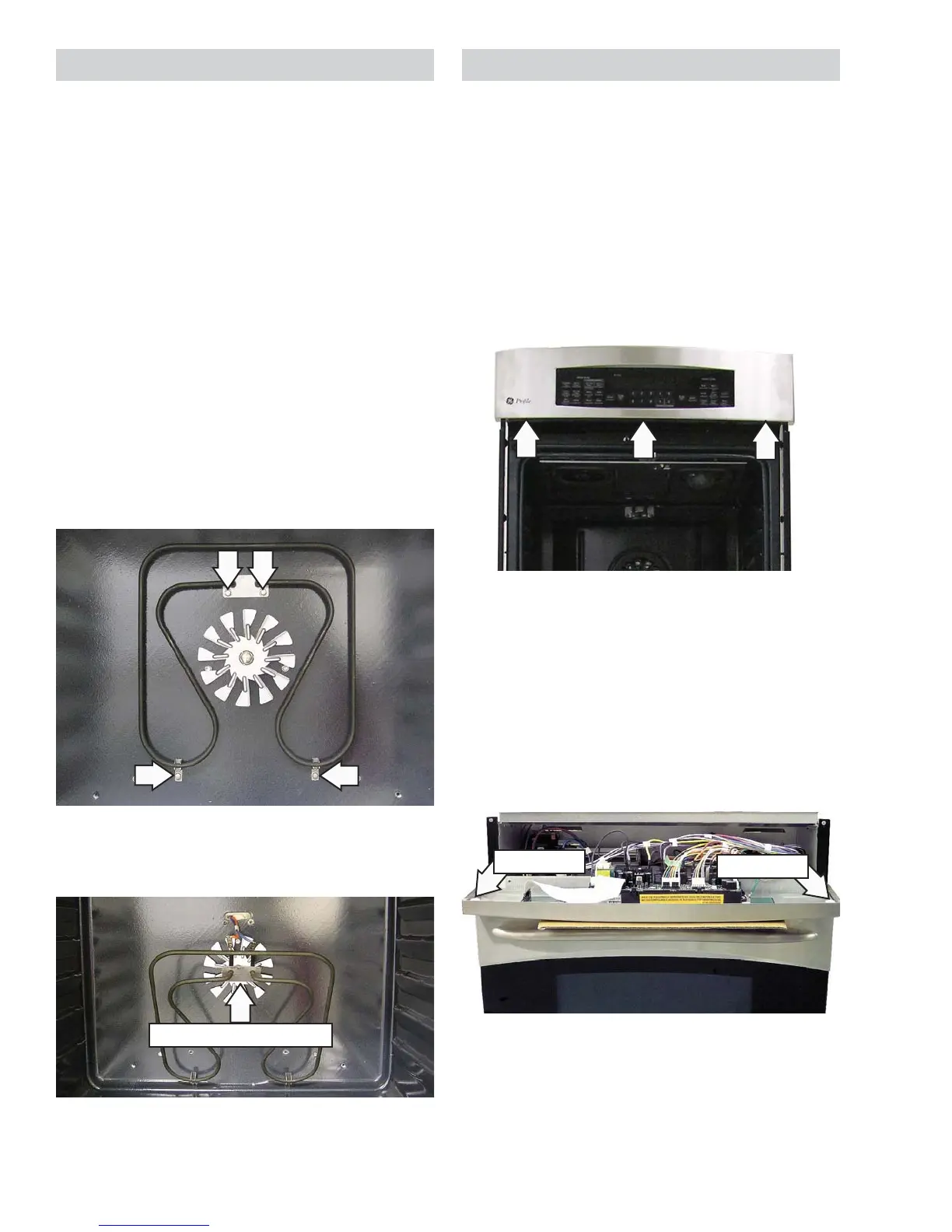

Convection Bake Element
Note: The resistance of this component can be
tested from the EOC. (See Control Board Testing.)
The element is rated at 2500 watts, has an
approximate resistance value of 22 Ω, and draws
approximately 10.6 amps.
The convection bake element is located on the back
wall of the oven and can be removed from inside the
oven cavity.
To remove the convection bake element:
Remove the oven racks.1.
Remove the four ¼-in. hex-head screws that 2.
hold the convection cover to the back wall of the
oven cavity.
3. Remove the four ¼-in. hex-head screws that
hold the convection bake element to the back
wall of the oven cavity.
4. Carefully pull the convection bake element
towards the front of the oven until the element
terminals are accessible.
5. Disconnect the wires from the convection bake
element.
Convection Bake Element
Control Compartment Access
Note: It may be necessary to partially remove the
oven from the installation to avoid damage to the
customer's woodwork. (See Oven Removal.)
To access the control compartment on single or
double ovens:
Open the oven door.1.
Remove the three ¼-in. hex-head screws that 2.
attach the bottom of the control panel to the
vent trim.
Place a cardboard protector on top of oven door 3.
and close the door.
Note: The control panel has keyhole slots at the top
and is held very tightly to the side trims.
4. Carefully push the control panel up, then pull out
at the bottom.
5. Rest the control panel on the protected door.
Note: When installing, make sure the bottom edge
of the control panel sits on top of the metal air
divider and vent trim.
(Continued next page)
