– 58 –

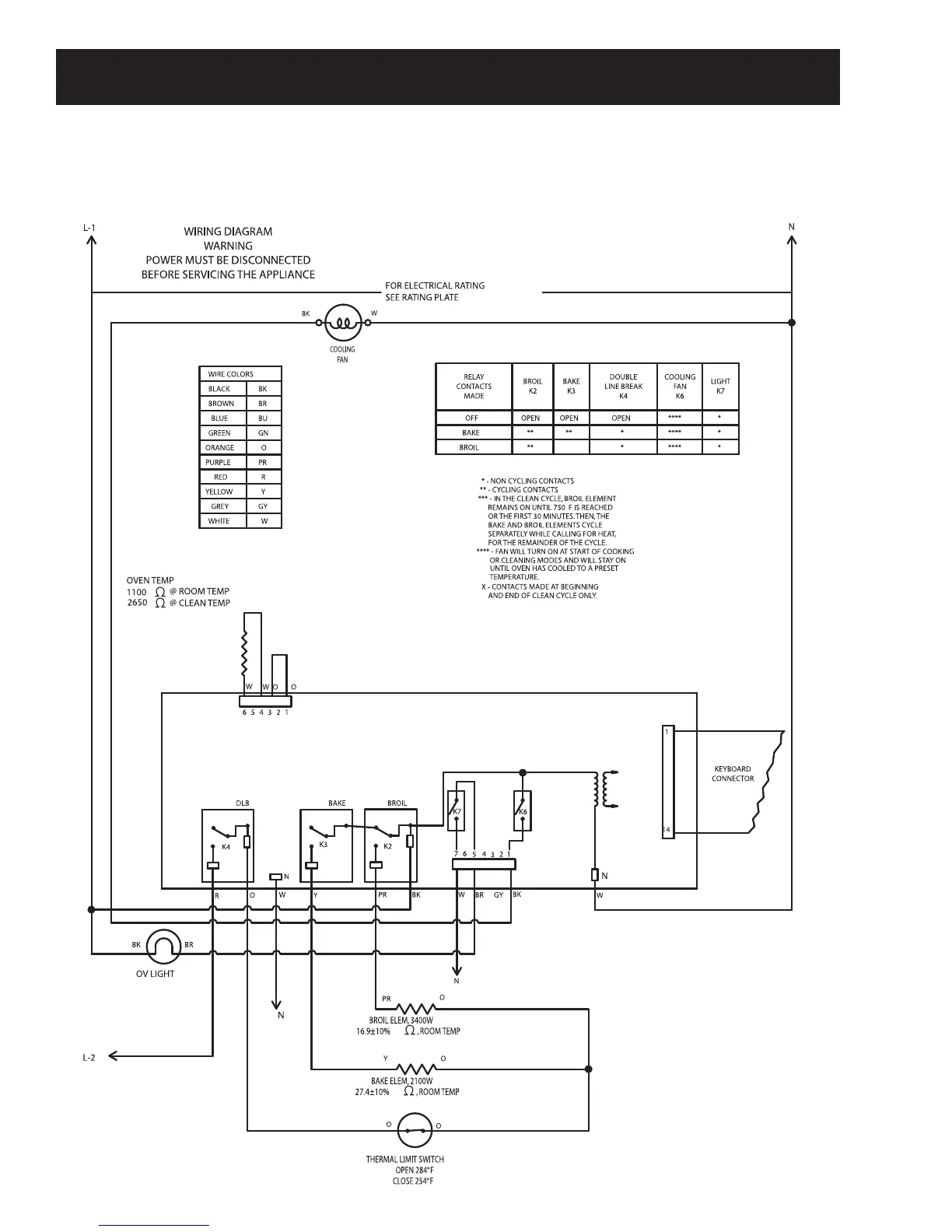

Schematics and Wiring Diagrams
WARNING: Disconnect electrical power before servicing.
Caution: Label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation. Verify
operation after servicing.
(Continued Next Page)
Model JKS10
RELAY COILS 850 Ω 24 VDC
