– 48 –

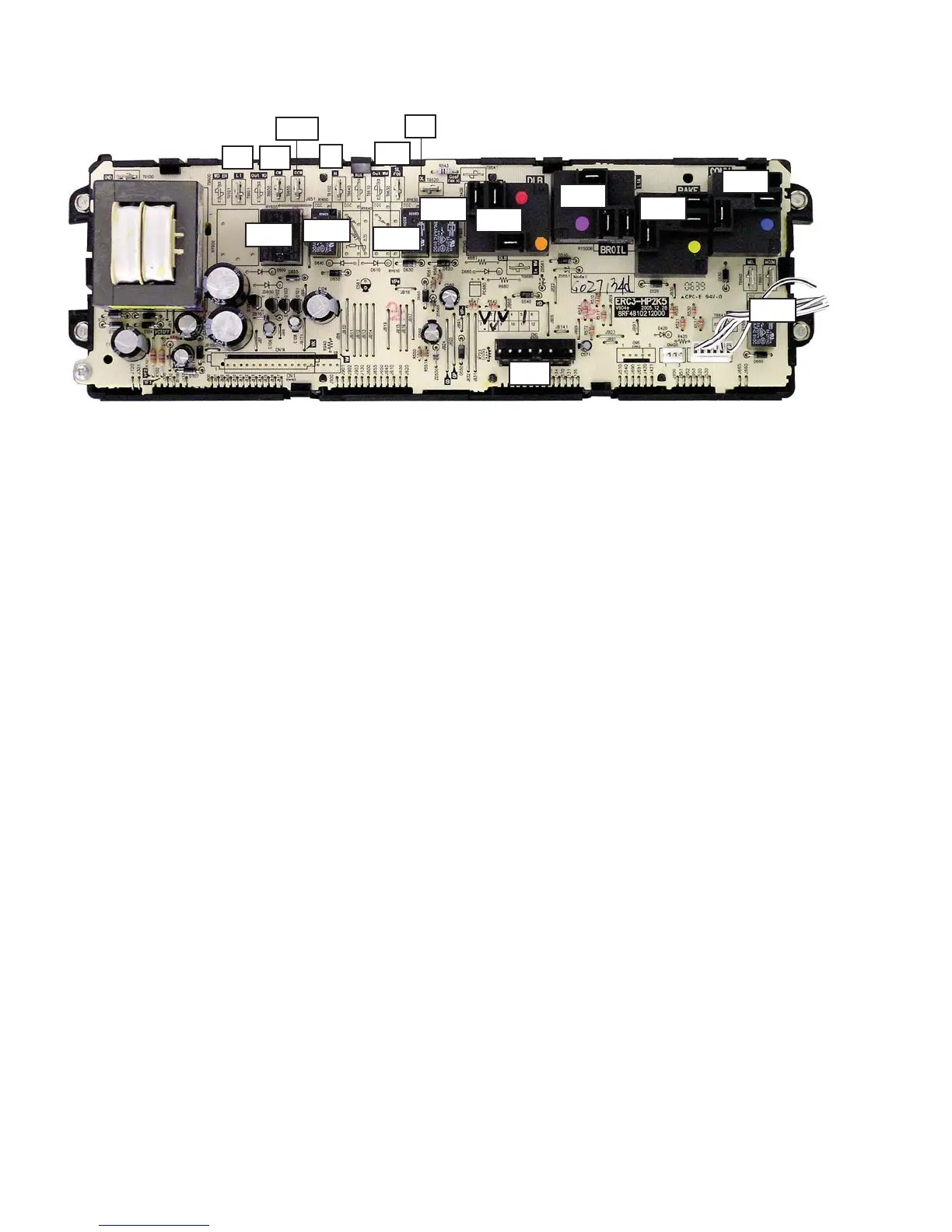

Electronic Oven Control for Single Wall Oven
RY
650 Door Lock Motor Switch
RY540 Double Line Break
RY630 Cooling Fan
RY620
Oven Light
RY655
Convection Fan
RY500 Broil Element
RY501 Bake Element
RY502 Convection Element
CN2 Meat Probe, Door Switch Relay, Thermal
Switch, Oven Sensor
L1 L1 Power to EOC
CCW Convection Fan
CW Convection Fan
N Neutral to EOC
FOD Cooling Fan
OL Oven Light
CN2
RY660
CW
L1
CCW
N
FOD
OL
RY501
RY502
RY500
RY620
RY540
RY630
RY650
RY655
