GE JKP30 Technical Service Guide

– 49 –
J5
J1
J3
J4
J6
J9
J12

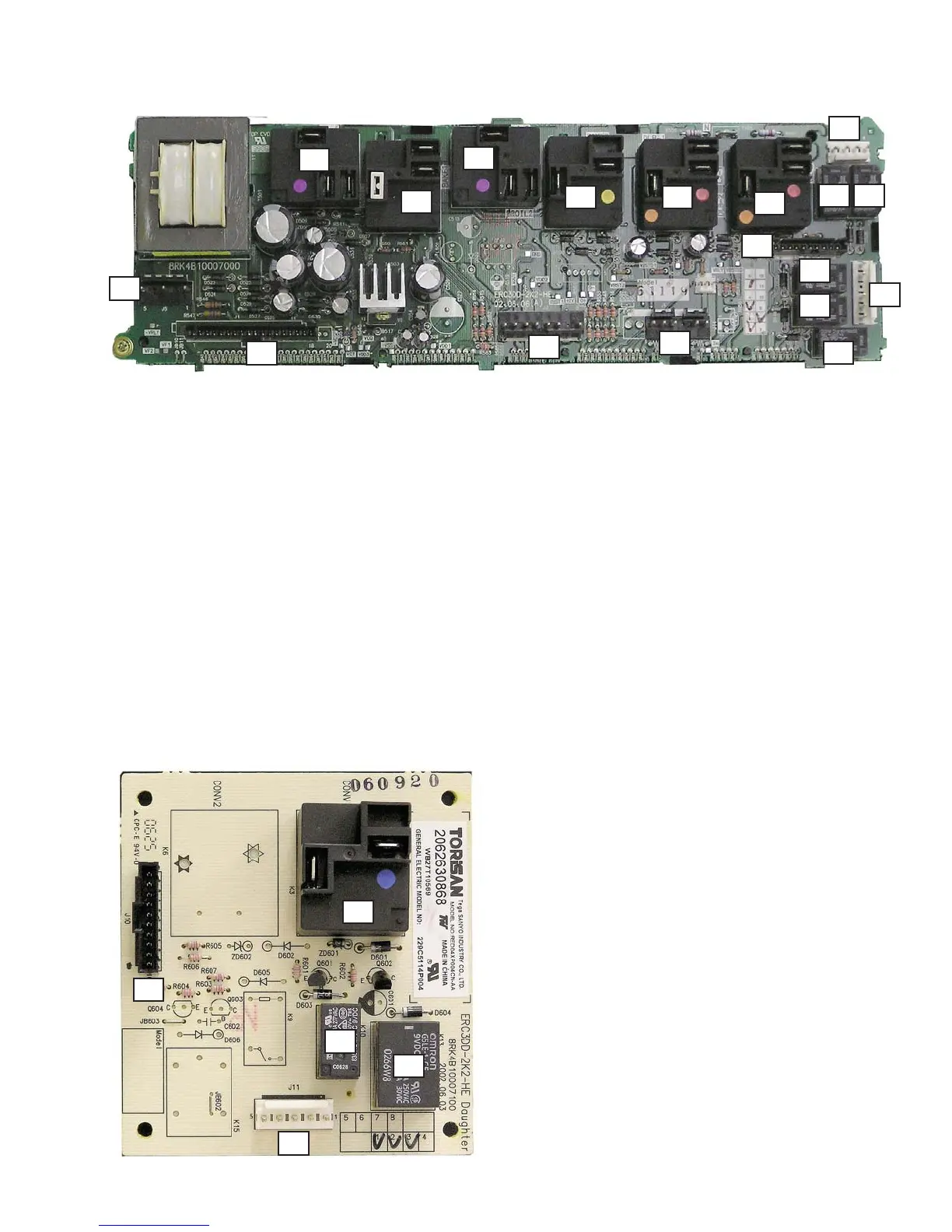

Auxiliary Control Board for Double Wall Oven
Electronic Oven Control for Double Wall Oven
J10 Connects to Electronic Oven Control
J11 Convection Fans
K3 Upper Convection Element Relay
K10 Upper Convection Fan Relay
K13 Reversing Upper Convection Fan Relay
J10
J11
K10
K13
K3
K8K7
K14
K11
K12
K17
K16K5
K2
K4
K1
J 1 Ribbon Cable to Key Panel
J3 Upper Door Lock Motor Switch, Temperature
Sensor, and Meat Probe
J4 Lower Door Lock Motor Switch, Temperature
Sensor, and Meat Probe
J 5 L1 Power to Transformer
J6 Door Switch, Lights, Lock Motor, and Cooling
Fans
J9 Connects to Auxiliary Control Board
J12 Lock Motor and L1 Power
T1 Transformer
K1 Upper Broil Relay
K2 Upper Bake Relay
K4 Lower Broil Relay
K5 Lower Bake Relay
K7 Upper Lock Motor Relay
K8 Lower Lock Motor Relay
K11 Lower Door Switch Relay
K12 Upper Door Switch Relay
K14 Cooling Fan Relay
K16 L2 Power to Upper TCO
K17 L2 Power to Lower TCO
