– 46 –

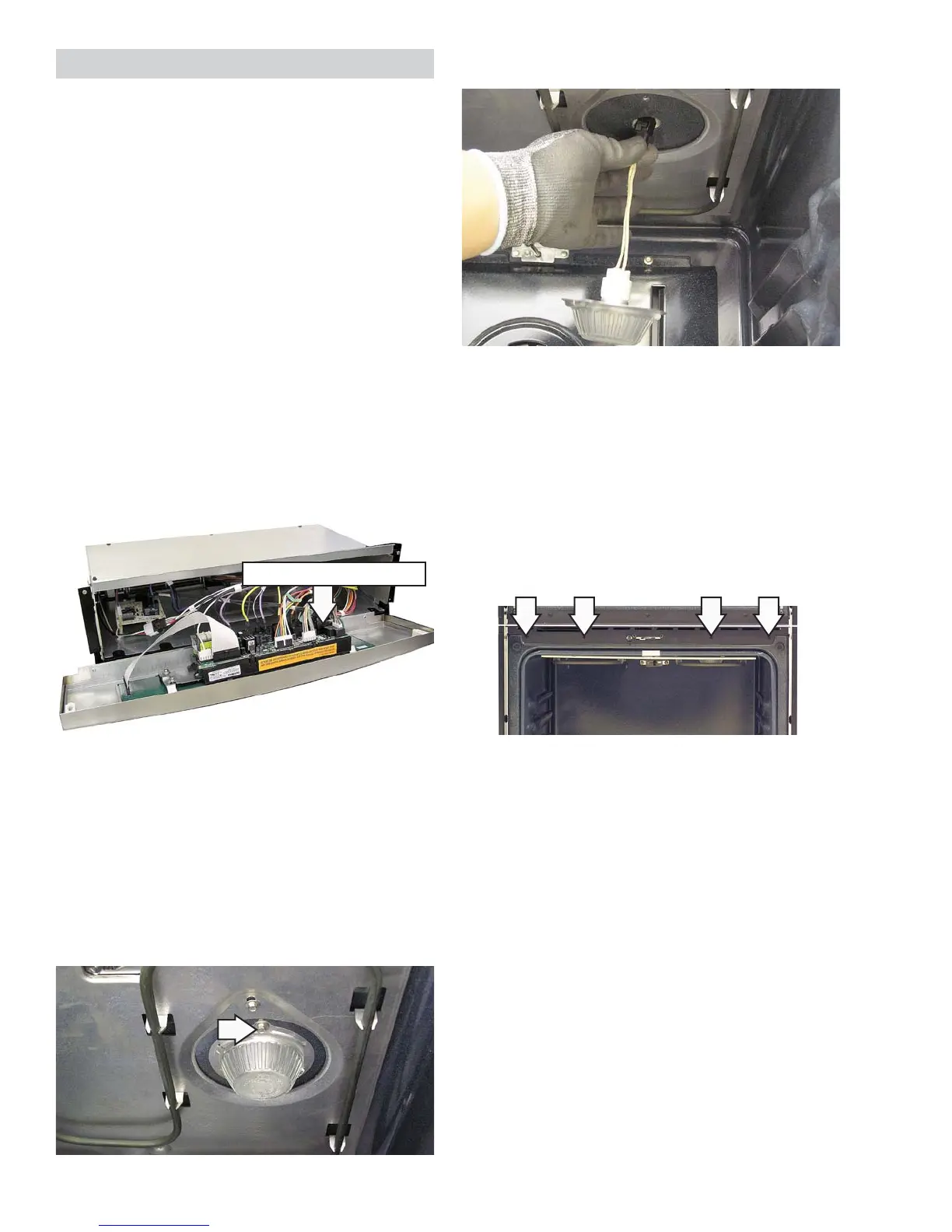

Oven Light Assembly
The GE and Profi le series ovens have one light
assembly in each oven cavity. The Monogram series
oven has two light assemblies in each cavity. The
halogen light assembly is located on the top of the
oven. The oven door switch monitors the position of
the oven door and provides this information to the
EOC. The lights come on when the door is opened
or when the oven is in a cooking cycle. The oven
lights do not come on during self-cleaning or if the
sabbath feature is set.
Each light assembly consists of a removable light
cover, a light bulb socket, and a halogen light bulb.
To remove an oven light assembly on single or
upper ovens:
Gain access to the control compartment. (See 1.
Control Compartment Access.)
Disconnect the wire harness from J9 on the EOC.2.
To remove an oven light assembly on lower ovens
and JKP90:
1. On JKP90, remove the microwave trim from the
microwave. (See Oven Separation.)
2. Open the lower oven door.
3. Remove 4 Phillips-head screws and the door
lock assembly cover plate from the oven.
Open the oven door and place the control panel 3.
on a protected top oven rack.
Disconnect the oven light wire harness located 4.
near the back inside wall of the control
compartment.
Remove the two ¼-in. hex-head screws that 5.
attach the light housing to the oven liner.
Pull the oven light housing from the oven liner.6.
4. Disconnect the oven light wire harness.
5. Remove the two ¼-in. hex-head screws that
attach the light housing to the oven liner.
6. Pull the oven light housing from the oven liner.
Wire Harness J9 Connector
To Next Page
