GE JKP30 Technical Service Guide

– 44 –

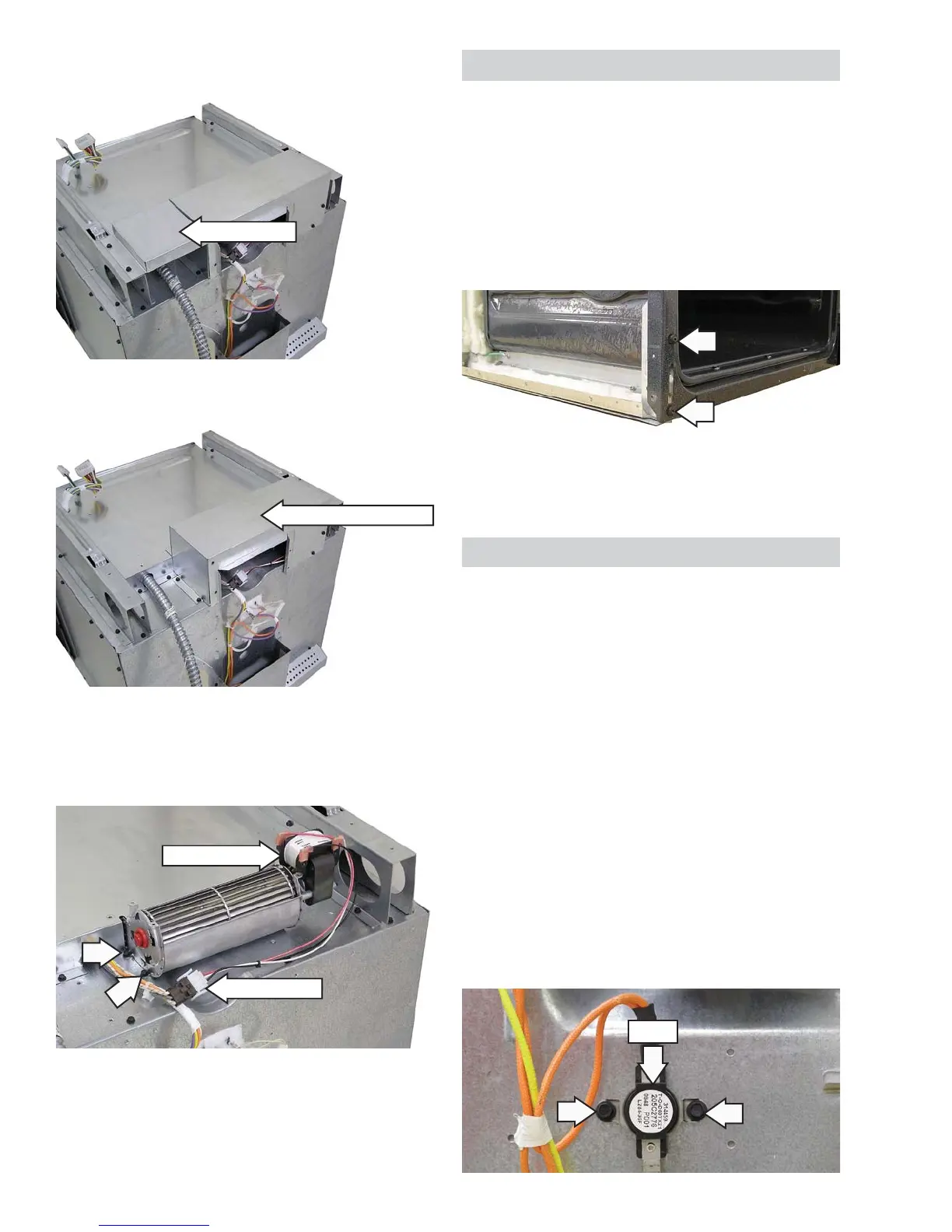

Door Hinge Receivers
To remove the door hinge receivers:
Remove the side access panels. (See 1. Oven
Removal.)
Carefully lift the insulation from the outside of 2.
the oven.
Remove the four T-15 screws (2 on each side) 3.
that hold each hinge receiver to the oven frame.
Note: Upon reassembly, ensure displaced that the
insulation around the oven and its components is
returned to its original position.
3. Remove four ¼-in. hex-head screws and the
duct cover from the oven.
4. Remove seven ¼-in. hex-head screws and the
cooling fan cover from the oven.
Duct Cover
5. Disconnect the cooling fan wire harness.
6. Remove three ¼-in. hex-head screws and the
cooling fan from the oven.
Cooling Fan Cover
Cooling Fan
Disconnect
Thermal Line Break Thermal Cutout (TCO)
A self-resetting, disc-type thermal cutout switch
is attached to the rear of the oven. The switch
will open the L2 leg of the power to the heating
elements in the event of an over-temperature
condition. The switch on the upper oven will
open when the panel it is attached to reaches
approximately 302°F and will close as the panel
cools to approximately 272°F. The switch on the
single and lower ovens will open when the panel it is
attached to reaches approximately 284°F and close
as the panel cools to approximately 254°F. There
is no indication to the customer when the switch
opens or closes.
To replace the TCO:
1. Remove the rear covers. (See Oven Removal.)
2. Disconnect and remove two ¼-in. hex-head
screws and the TCO from the oven.
TCO
