– 43 –

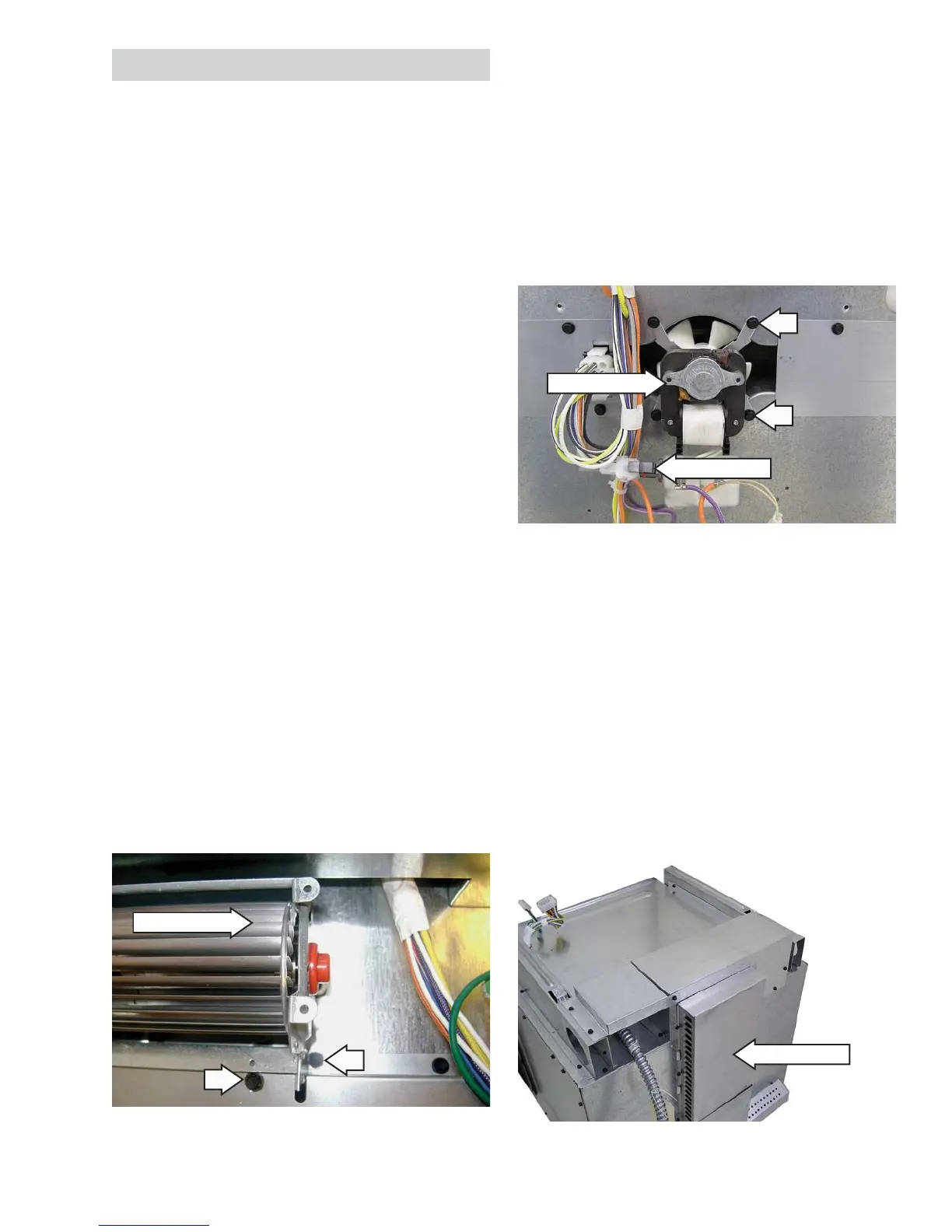

Cooling Fan
A cooling fan is located above each oven. On upper
and single ovens, the cooling fan is in the rear wall
on the left side of the control compartment. On
lower ovens, the cooling fan is located in the center
of the double wall oven. On double ovens, both fans
operate together.
The fans will begin to operate when the oven is
in any cooking mode. The fans may continue to
operate even after the oven is turned off.
The fan motor in the single and upper oven is a two-
speed motor and has an approximate resistance
value of:
Red to white = 28.8 Ω
Black to white = 20.9 Ω
Red to black = 8.0 Ω
The fan motor in the lower oven is a single-speed
motor and has an approximate resistance value of
48 Ω.
The single and upper oven cooling fans can be
removed from the front of the oven. The lower oven
cooling fan requires the oven to be removed.
To remove the cooling fan in the single and upper
oven:
Access the control compartment. (See 1. Control
Compartment Access.)
Disconnect the cooling fan wire harness.2.
Remove the four ¼-in. hex-head screws (2 3.
on each side) that hold the cooling fan to the
control compartment.
To remove the cooling fan in the lower oven:
Remove the oven from the installation and 1.
remove the rear access panels. (See
Oven
Removal.)
Disconnect the cooling fan wire harness.2.
Remove the four ¼-in. hex-head screws that 3.
hold the cooling fan to the oven.
Carefully remove the cooling fan from the 4.
control compartment.
To remove the cooling fan in JKP90:
The fan motor in the JKP90 is a two-speed motor
and has an approximate resistance value of:
Red to white = 28.8 Ω
Black to white = 20.9 Ω
Red to black = 8.0 Ω
1. Separate the microwave from the oven (See
Oven Removal.)
2. Remove six ¼-in. hex-head screws and the rear
cover from the oven.
Cooling Fan
Disconnect
(Continued Next Page)
Rear Cover
Cooling Fan
To Next Page
