– 37 –

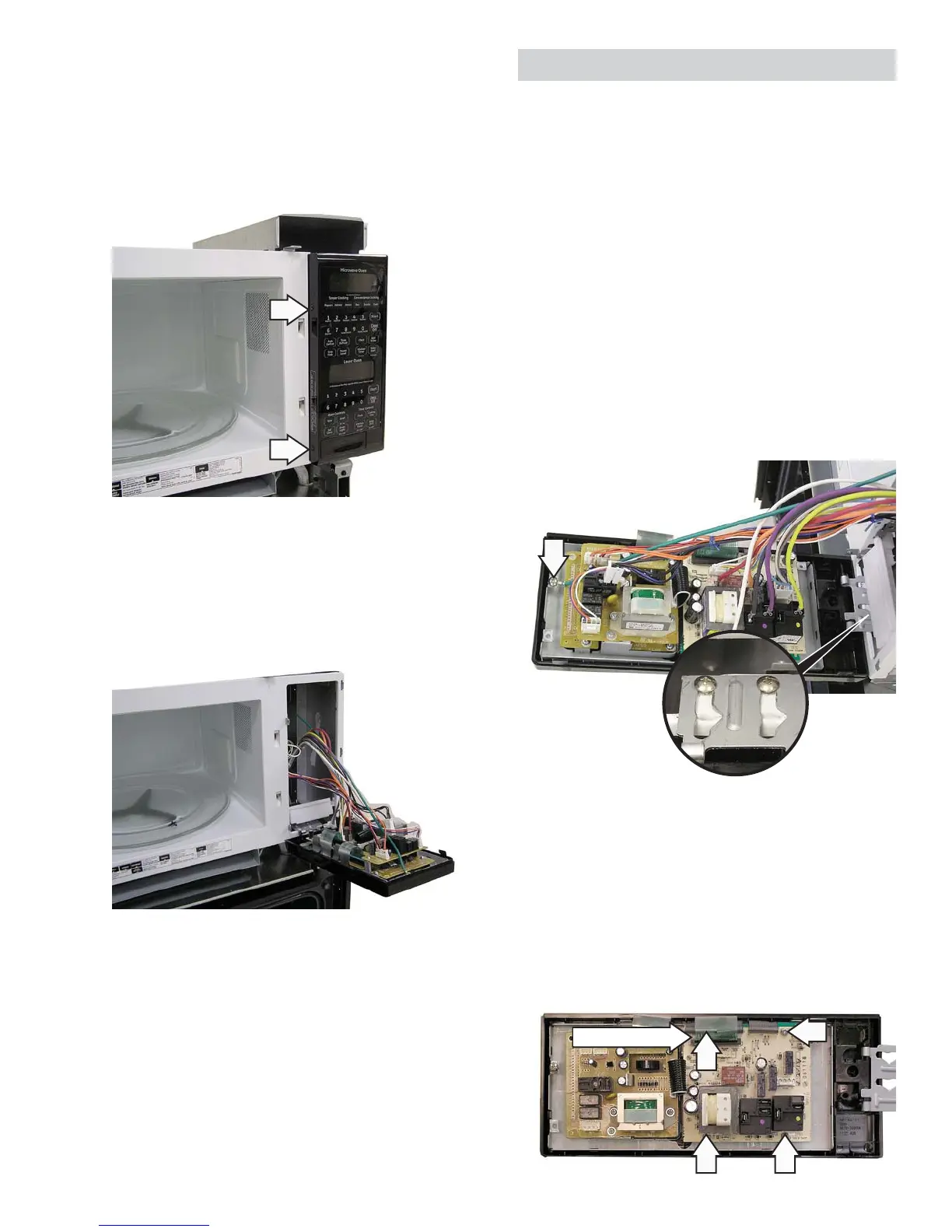

To access the control compartment on JKP90:
Remove the microwave trim (See 1. Oven Removal.)
Open the microwave door.2.
3. Remove two T-20 torx screws from control panel
assembly.
4. Slide the control panel assembly mounting
bracket off the screws.
To disassemble the JKP90 control panel:
1. Lift the side tabs and remove the ribbon cable
from the electronic oven control.
2. Remove 4 Phillips-head screws and the
electronic oven control from the control panel
assembly.
4. Pull the control panel assembly down to the
access position.
Note: There are three tabs on the right side of the
control panel assembly. Push the control panel to
the left to free it from the housing.
Control Panel Assembly
The control panel assembly consists of the control
panel frame, the electronic oven control, and the
key panel.
Note: The GE, Pro le, and Monogram series control
panels are slightly different. Verify the model
number of the unit before making any repairs or
tests.
To remove the control panel assembly on JKP90:
Gain access to the control compartment. (See 1.
Control Compartment Access.)
2. Mark and disconnect the wires from the control
panel assembly.
3. Remove the Phillips-head screw and the ground
wire from the control panel assembly.
(Continued next page)
