Installation Instructions

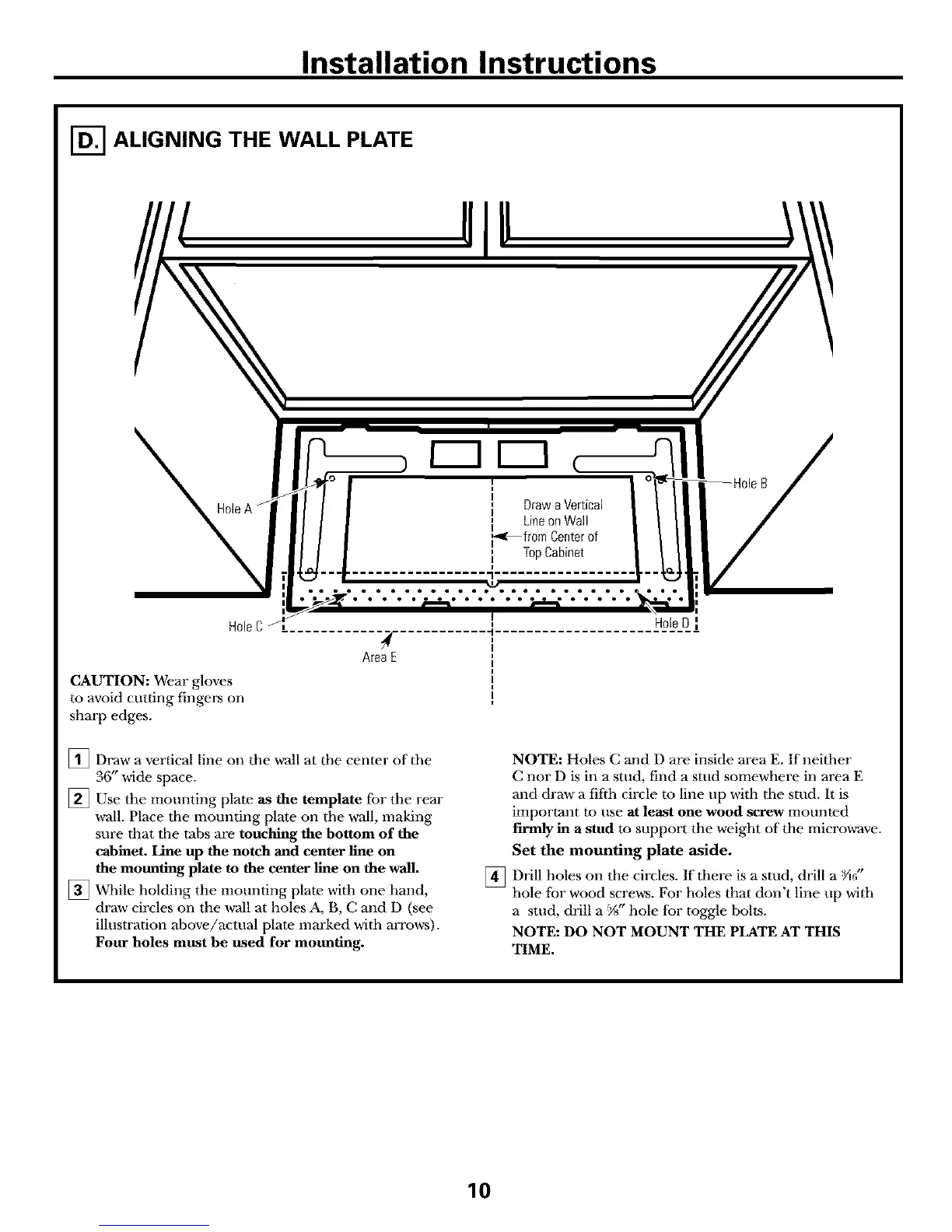

ALIGNING THE WALL PLATE

HoleA

CAUTION: Wear gloves

to avoid cutdng fingers on

sharp edges.

) C

I Draw aVertical

I LineonWall

_from Centerof

I TopCabinet

° t _m • • • • • • • • • •

AreaE I

[]Draw a vertical line Oll the wall at the center of the

36" wide space.

[] Use the mounting plate, as the template tbr the rear

wall. Place the mounting plate on the wall, making

sure that the tabs are touching the bottom of the

cabinet. Line up the notch and center line on

the mounting plate to the center line on the wall.

[] While holding the mounting plate with one hand,

draw circles on the v_-all at holes A, B, C and D (see

illustration alcove/actual plate marked with arrows).

Four holes must be used for mounting.

NOTE: Holes C and D are inside area E. If neither

C nor D is in a stud, find a stud somewhere in area E

and draw a fifth circle m line up with the stud. It is

important to use at least one wood screw mounted

firmly in a stud to support the weight of the microw-ave.

Set the mounting plate aside.

Drill holes on the circles. If there is a stud, drill a _(;"

hole tor wood screws. For holes that don t hne up with

a stud, drill a 5A"hole for toggle bolts.

NOTE: DO NOT MOUNT THE PLATE AT THIS

TIME.
