Installation Instructions

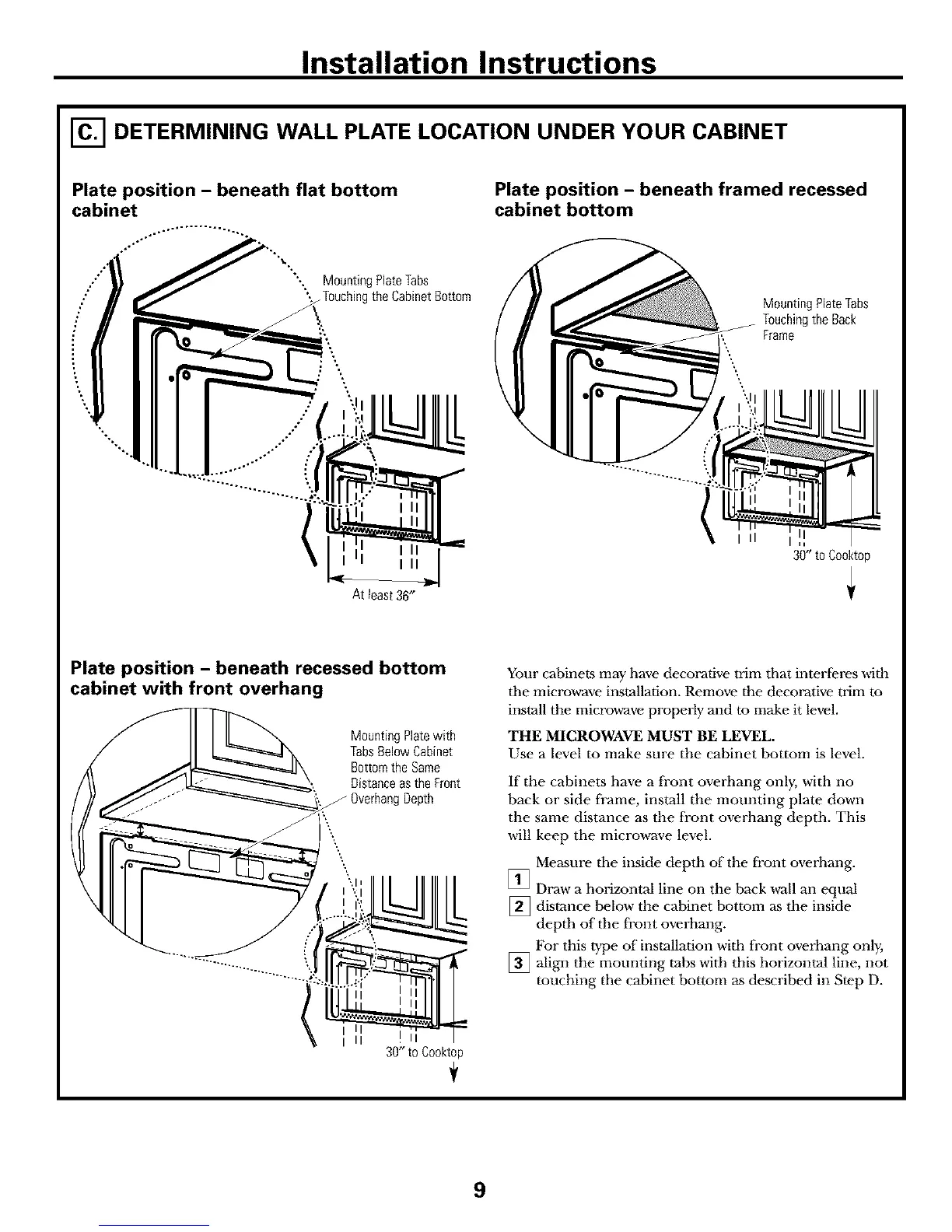

I-_ DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
° .°""
MountingPlateTabs
Touchingthe CabinetBottom
II
At least36"
Plate position - beneath framed recessed
cabinet bottom
MountingPlateTabs
Touchingthe Back
Frame
II
30" to Cooktop
Plate position - beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelow Cabinet
Bottomthe Same
Distanceasthe Front
' j OverhangDepth
Your cabinets may have decorative trim that interferes with
the microw-ave installation. Remove the decorative trim to
install the microwave properly and to make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level ro make sure the cabinet bottom is level.
If the cabinets have a front overhang only; with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
Measure the inside depth of the front overhang.
[] Draw a horizontal line on the back wall an equal
[] distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang only,
[]align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
II
II
30" to Cooktop
9
To Next Page
