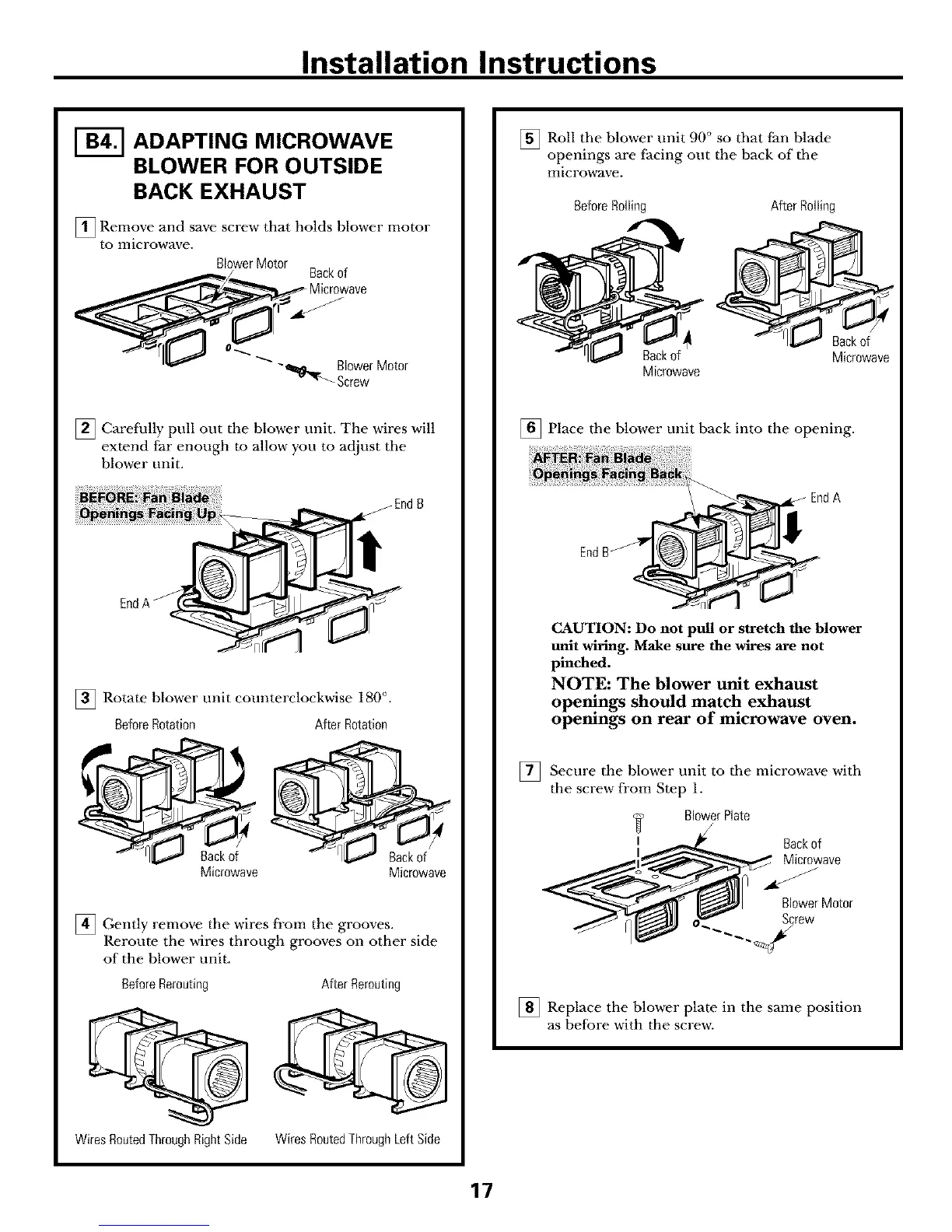

GE JVM3660 Installation Instructions

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
Remove and save screw that holds blower motor
to microwave.
BlowerMotor
Microwave
- _ BlowerMotor
- _- Screw
[] Careflflly the blower unit. The wires willpull
out
extend far enough to allow you to adjust the
blower unit.
EndB
[] Rotate blower unit counterclockwise 180 °.
BeforeRotation AfterRotation
Microwave Microwave
[] Gently remove the wires from the
grooves.
Reroute the wires through grooves on other side
of the blower unit.
BeforeRerouting After Rerouting
Wires RoutedThroughRightSide Wires RoutedThroughLeftSide
[] Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
microwave.
BeforeRoiling After Roiling
Backof
Microwave
Microwave
[] Place tim blower unit back into the opening.
CAUTION: Do not pull or stretch the Mower
unit wiring. Make sure the wires are not
pinched,
NOTE: The blower trait exhaust
opem.'ngs should match exhaust
opemngs on rear of microwave oven.
[] Secure the blower unit to the microwave with
the screw from Step 1.
BlowerPlate
I Backof
Microwave
BlowerMotor
, Screw
[] Replace the blower plate in the same position
as before with the screw.
