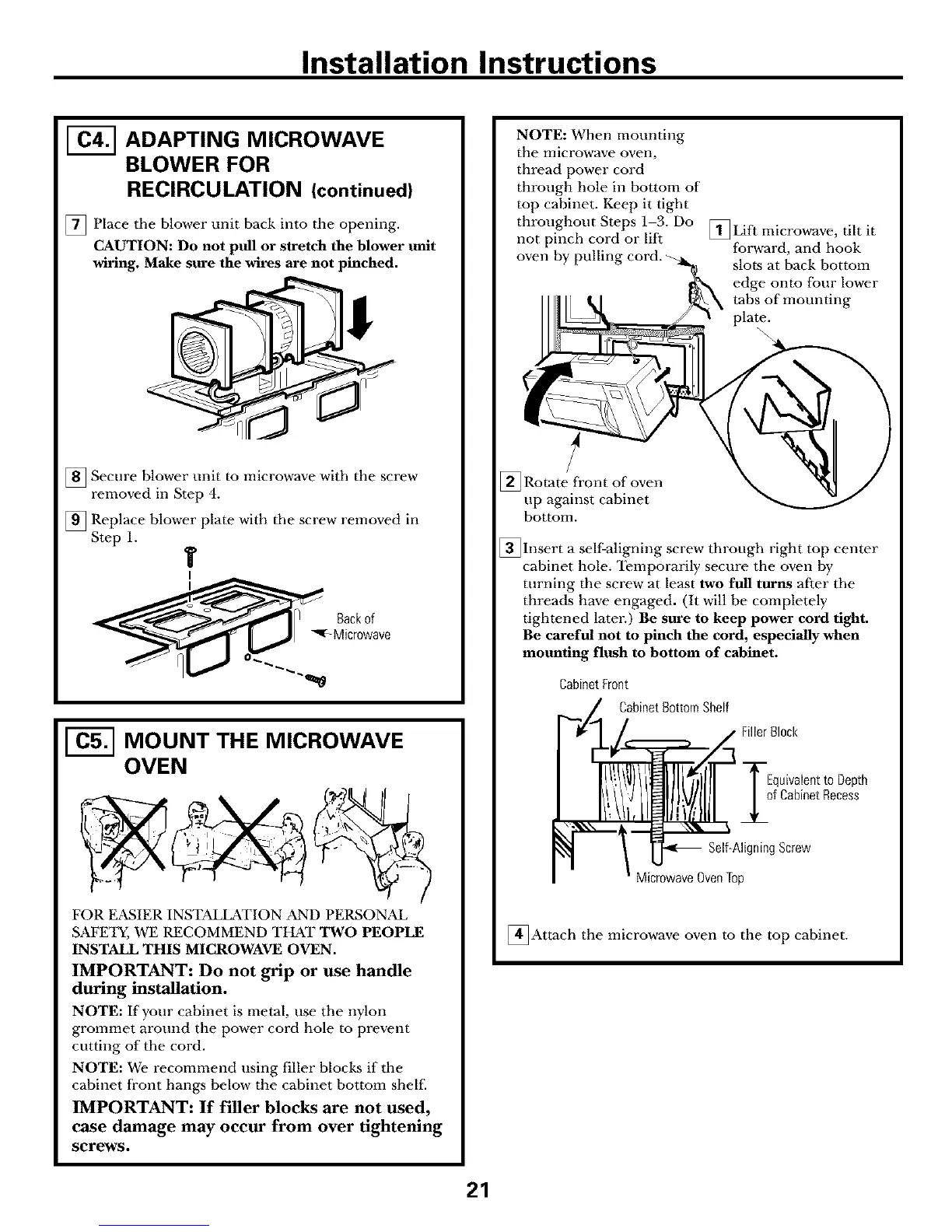

Installation Instructions
[-_ ADAPTING MICROWAVE
BLOWER FOR
RECIRCULATION (continued)
[] Place the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
[_ Secure blower unit to microwave with the screw
removed in Step 4.
[] Replace blower plate with the screw removed in
Step 1.
Backof
Microwave
MOUNT THE MICROWAVE
OVEN
FOR E_MSIERINSTALlaTION AND PERSONAL
SAFETY, WE RECOMMEND TI_XT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shel£
IMPORTANT: If filler blocks are not used,
case damage may occur from over tightening
screws.
NOTE: When mounting
the microwave ovell,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven
[_Lift microwave, flit it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
\
[_ Route front of oven
up against cabinet
bottom.
[] Insert a self-aligning screw through right top center
cabinet hole. '12mlporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
CabinetFront
'Z CabinetBottomShelf
IZ1!,
! ' _ ofCabinetRecess
/ I/!l/',l/Hltl ./,.llllJ:
MicrowaveOvenTop
_Attach the microwave oven to the top cabinet.
21
