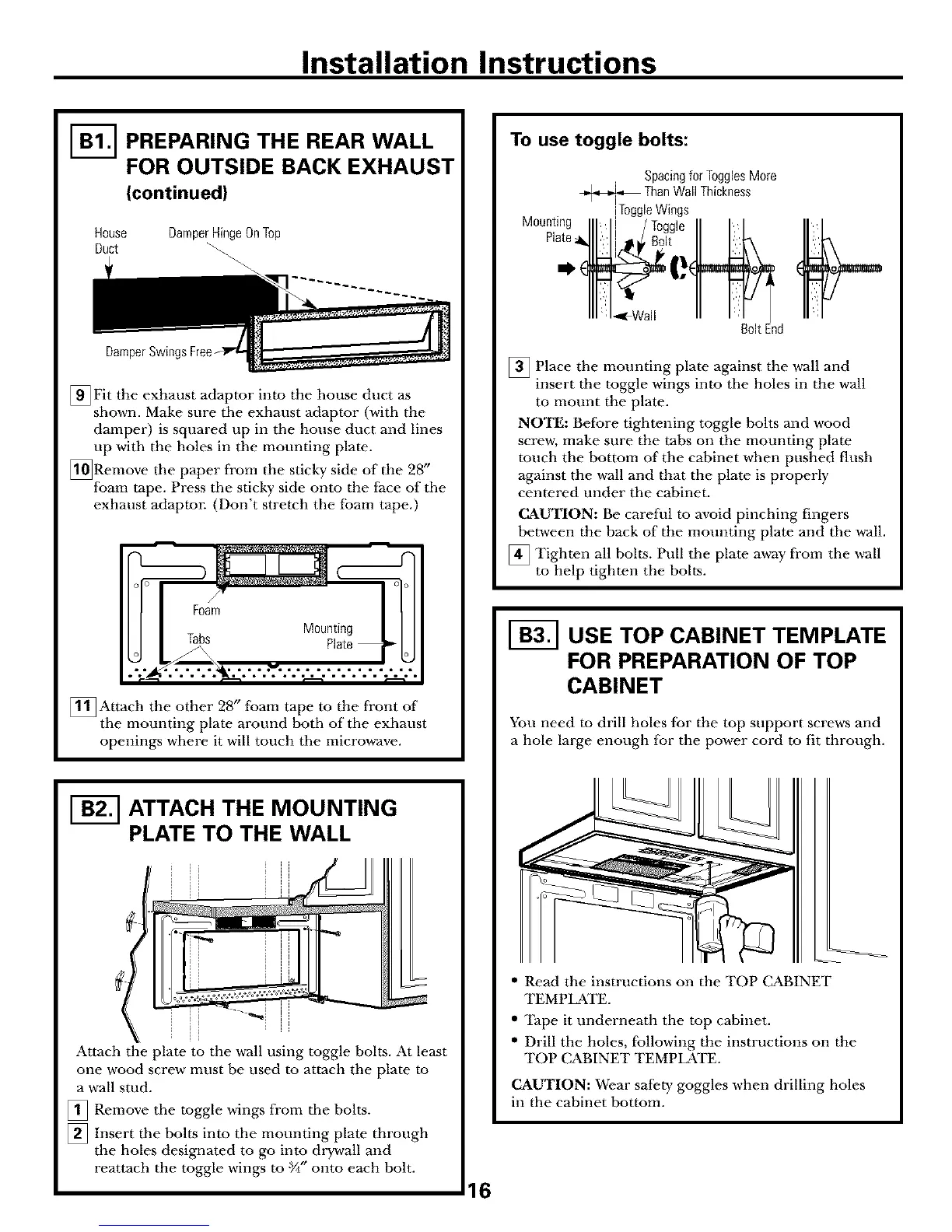

Installation Instructions
F_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
(continued)
House DamperHingeOnTop
Duct "_..
DamperSwing',
[_Fit the exhaust adaptor into the house duct as
shown. Make sure the exhaust adaptor (with the
damper) is squared up in the house duct and lines
up with the holes in the mounting plate.
[_Remove the paper fi'om the sticky"side of the 28"
foam tape. Press the sticky side onto the face of the
exhaust adaptor: (Don't stretch the foam tape.)
[]Attach the other 28" foam tape to the front of
the mounting plate around both of the exhaust
openings where it will touch the microwave.
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to at_ch the plate to
a wall stud.
[] Remove the toggle wings fi'om the bolts.
[] lnsert the bolts into the mounting plate through
the holes desi_ nated to go into drywall and
reattach the toggle wings to :_A"onto each bolt.
To use toggle bolts:
SpacingforTogglesMore
_,_ ThanWallThickness
IToggleWings
Mounting IIIli /Togge II II
Plate411:llJ_,SoltII I::t_
-p,'
111:12 ,, ,,
BoltEnd
[]Place the the wall andmounting plate against
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the ,a-all.
[] Tighten all bolts. Pull the plate away"fi'om the wall
to help tighten the bolts.
I-_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMP_TE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP C&BINET TEMP_TE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
16
