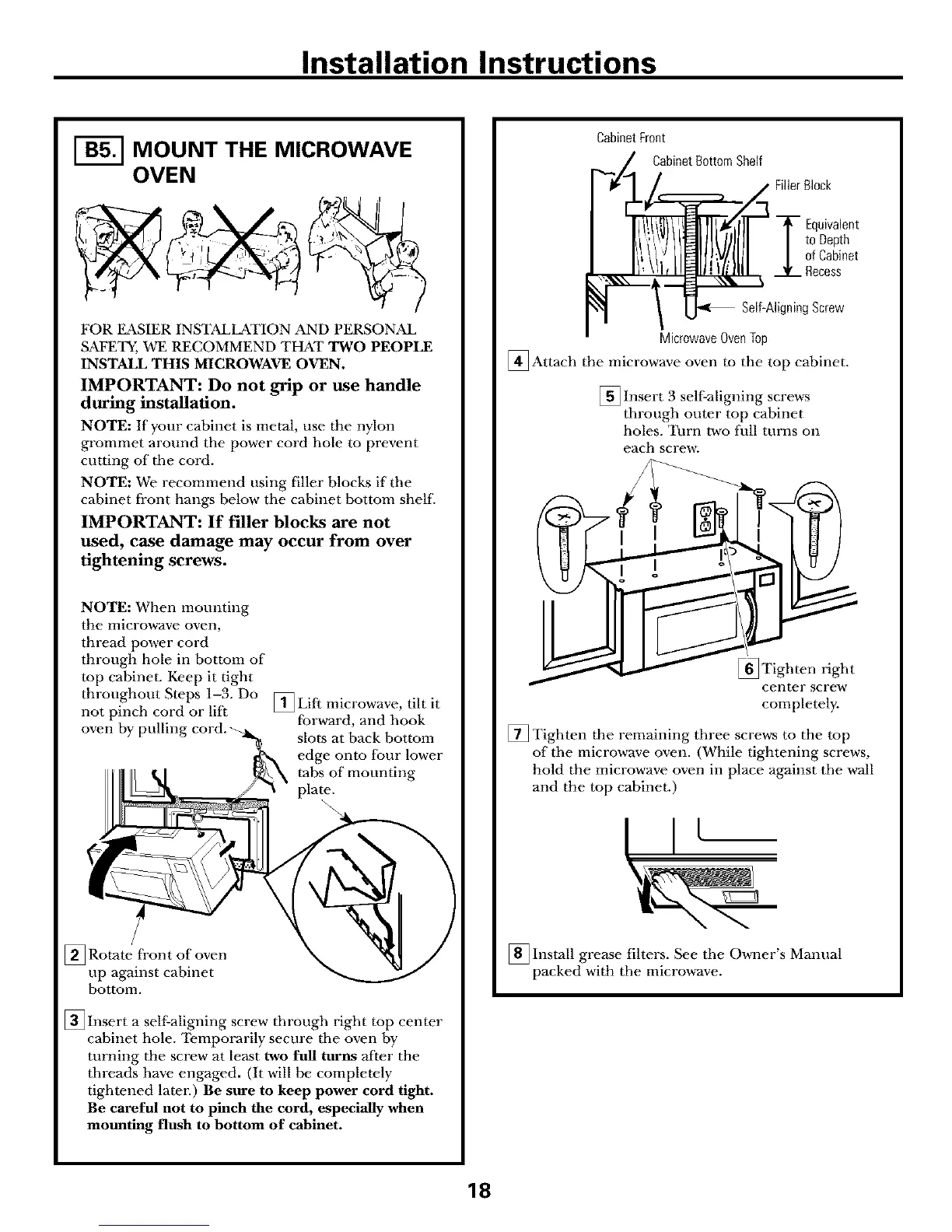

Installation Instructions
MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFEqY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or ase handle
dttring installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shel£
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
NOTE: When mounting
the microw-ave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling
[]Lift microwave, tilt it
tbrward, and hook
slots at back bottom
edge onto four lower
robs of mounting
plate.
\
[_ Rotate fi'ont of
oven
up against cabinet
bottom.
[] Insert a seltXaligning screw through right top center
cabinet hole. Temporarily secure the oven by"
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
CabinetFront
vA CabinetBottomShelf
_'_A FillerBlock
| _/1_ T Equivalent
/ I ,,"tT//NINIII/t0 ae itnhet
1,.,. Ir,£irl!_ .__(._Recess
--Microwave OvenTop
[]Attach the microwave oven to the top cabinet.
[] Insert 3 seltXaligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
I
]Tighten right
center screw
completel F
[] Tighten the remaining three screws to the top
of the microwave oven. (While tightening screws,
hold the microwave oven in place against the wall
and the top cabinet.)
t
_ Install grease filters. See the Owner's Manual
packed with the microwave.
18
