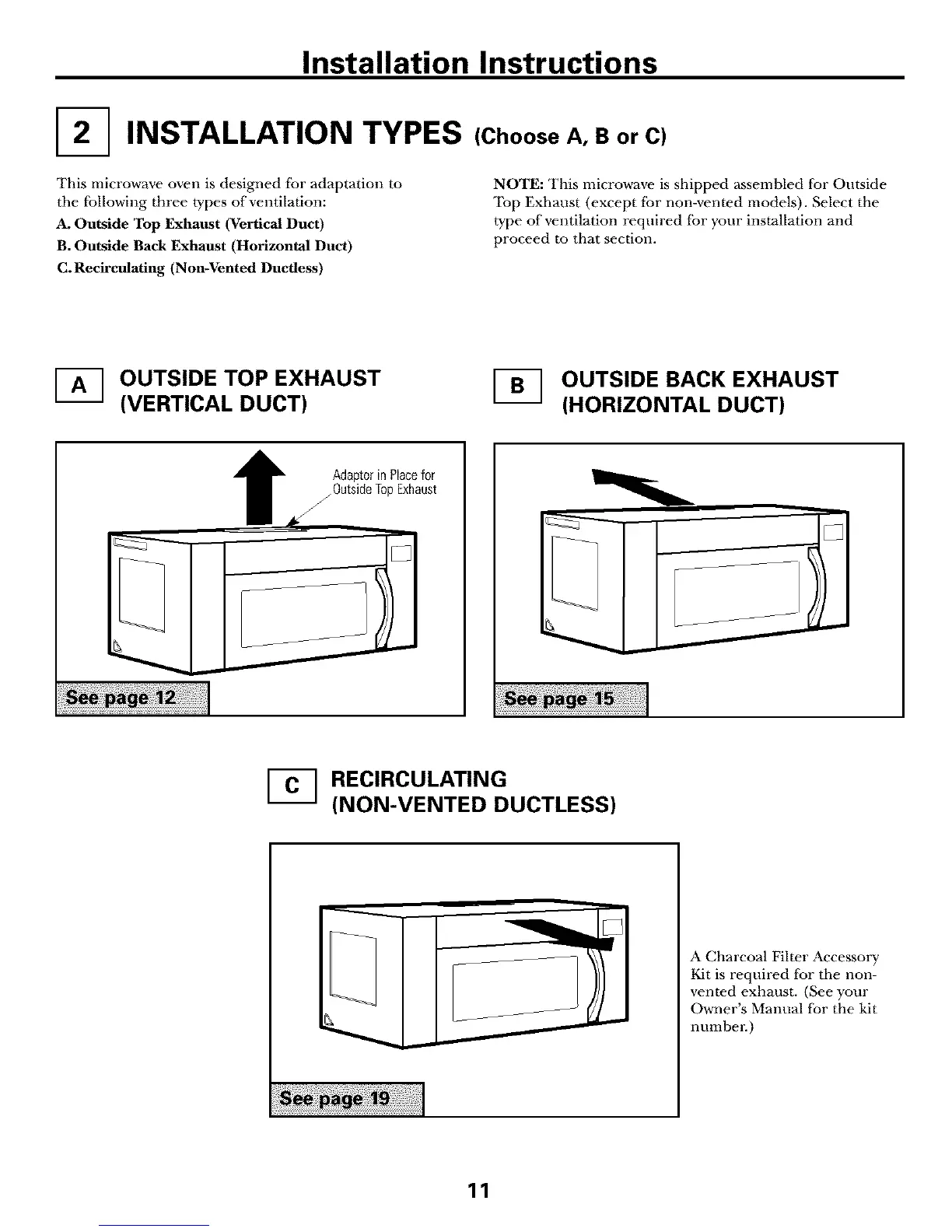

Installation Instructions
INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (NonWented Ductless)
NOTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
Cr'pe of ventilation required for your installation and
proceed to that section.
_-_ OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
_-_ OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
AdaptorinPlacefor
Outside Top Exhaust
_-] RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory
Kit is required for the lion-
vented exhaust. (See your
Owner's Manual for the kit
numben)
