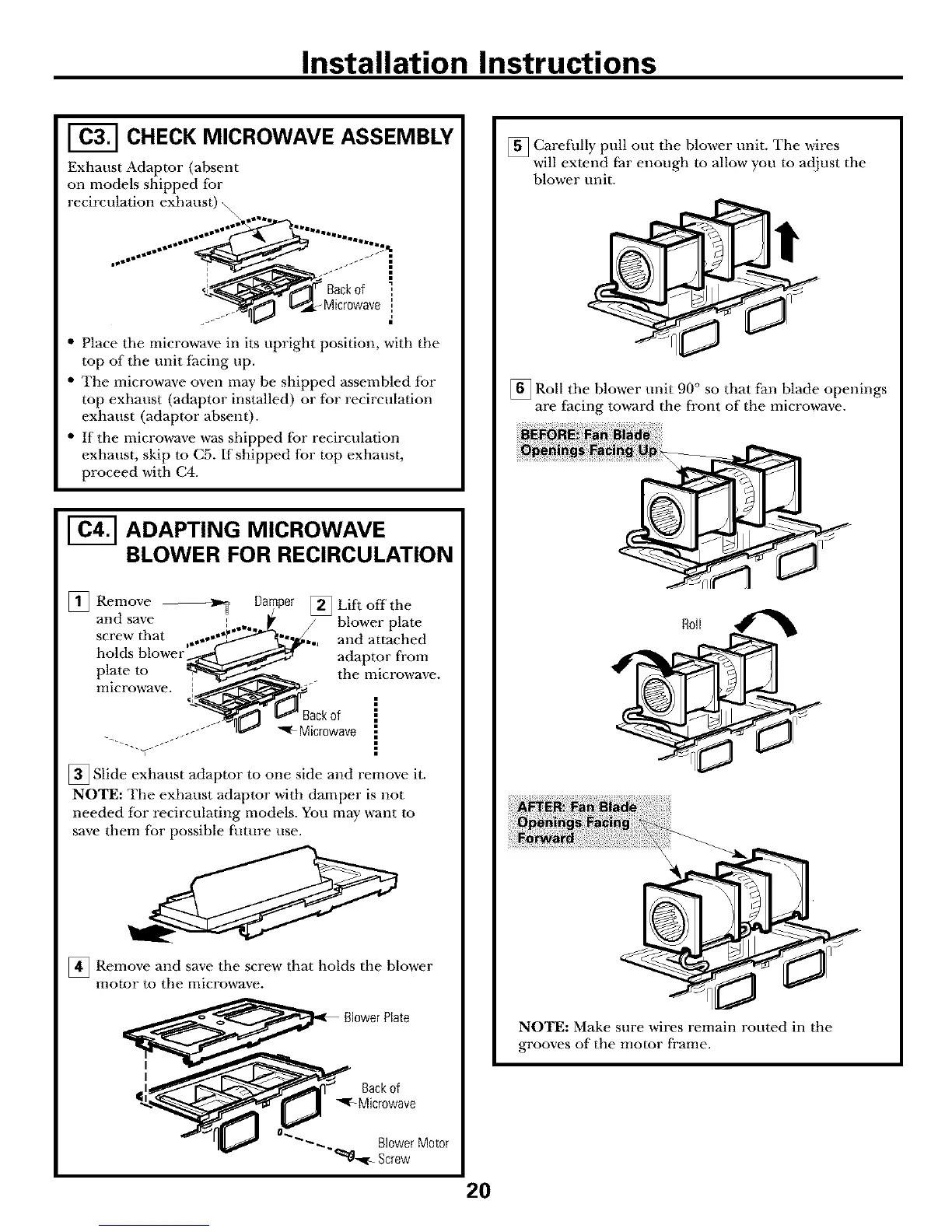

GE JVM3660 Installation Instructions

Installation Instructions
CHECK MICROWAVE ASSEMBLY
Exhaust Adaptor (absent
on models shipped for
recirculation exhaust) \
,,-.wm
.o._ ,ll_° "l"llea_,_m, I
............... ......."7""
Back0,
.J-' CO ' Mlcrewave
• Place the microwave in its upright position, with the
top of the unit facing up.
• The microwave oven may be shipped assembled fbr
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
• If the micro,a-ave was shipped fbr recirculation
exhaust, skip to C5. If shipped for top exhaust,
proceed with C4.
ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
[] Remove --_ [] Lift offthe
and save 1 blower plate
screw that and attached
holds blower adaptor fl'om
plate to the microwave.
microwave. _"
"" _ Microwave
zz Jj
[] Slide exhaust adaptor to one side and remove it.
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.
Remove and save the screw that holds the blower
motor to the microwave.
BlowerPlate
"_-_ Screw
Careflllly pull out the blower unit. The wires
will extend fhr enough to allow you to adjust the
blower unit.
[] Roll the blower unit 90 ° so that fan blade openings
are facing to,a-ard the front of the microwave.
B011
NOTE: Make sure ,aires_remain routed in the
grooves of the motor frame.
2O
