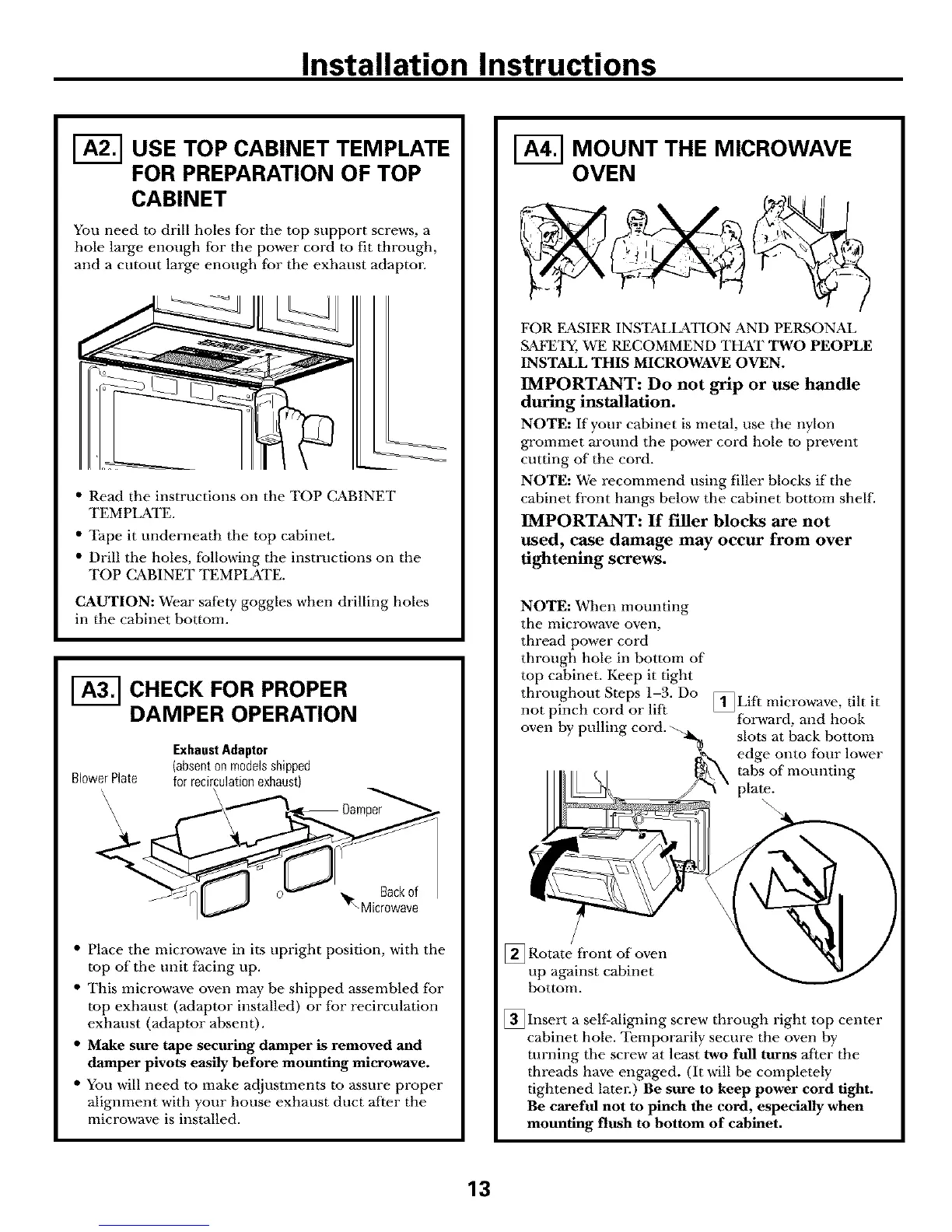

GE JVM3660 Installation Instructions

Installation Instructions
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
%
• Read the instructions on the TOP CzM31NET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
I-_ CHECK FOR PROPER
DAMPER OPERATION
BlowerPlate
ExhaustAdaptor
(absentonmodelsshipped
for recirculationexhaust)
\
Backof
Microwave
• Place the microwave in its upright position, with the
top of the unit facing up.
• This microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
• Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
I-_ MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTALlaTION AND PERSONAL
SAFE'I_ WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole ro prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet fl'ont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
ttsed, case damage may occur from over
tightening screws.
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling cord. --.
[] Lift micro,a-ave, dlt it
forward, and hook
slots at back bottom
edge onto J[bur lower
tabs of mounting
plate.
\
_]Rotate front of
oven
up against cabinet
bottom.
[] Insert a self-aligning screw through right top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened laten) Be sure to keep power cord fight.
Be careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
13
