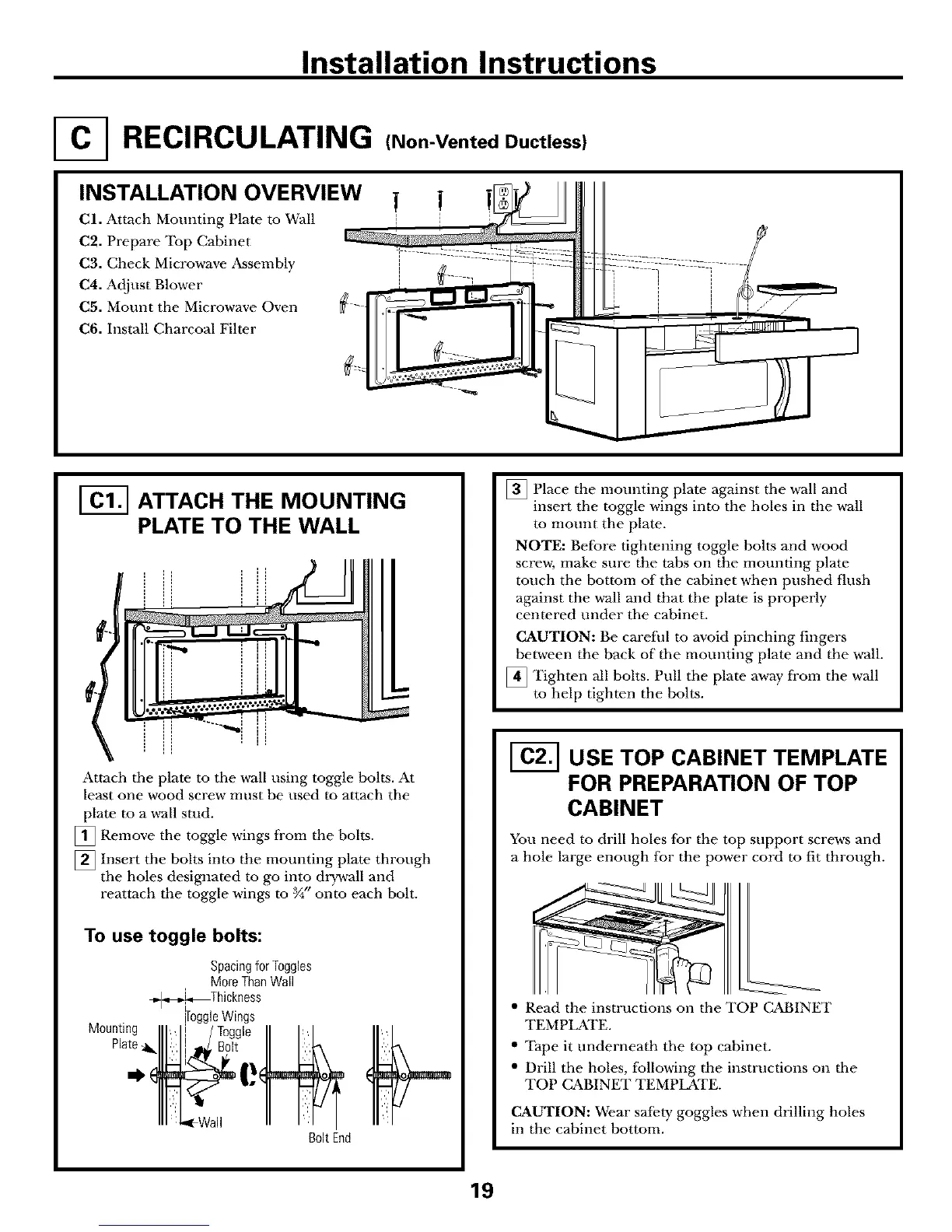

Installation Instructions
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
CI. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Microwave _Msembly
C4. Adjust Blower
C5. Mount the Microwave Oven
C6. Install Charcoal Filmr
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
1
Attach the plate to the wall using toggle bolts. At
least one wood screw must be used to attach the
plate to a wall smd.
[] Remove the toggle wings fi'om the bolts.
[] Insert the bolts into the mounting plate through
the holes designated to go into &Twall and
reattach the toggle wings to ¾" onto each bolt.
To use toggle bolts:
SpacingforToggles
MoreThanWall
_Thickness
LroggleWings
Mounting II1,11 /To_qle II I'1
Plate_lllh_ Bolt II I
III ,t_Wall II U I
BoltEnd
[] Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Betore tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CIAUTION: Be careflfl to avoid pinching fingers
between the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
I-_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, tollowing the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear satbg¢ goggles when drilling holes
in the cabinet bottom.
