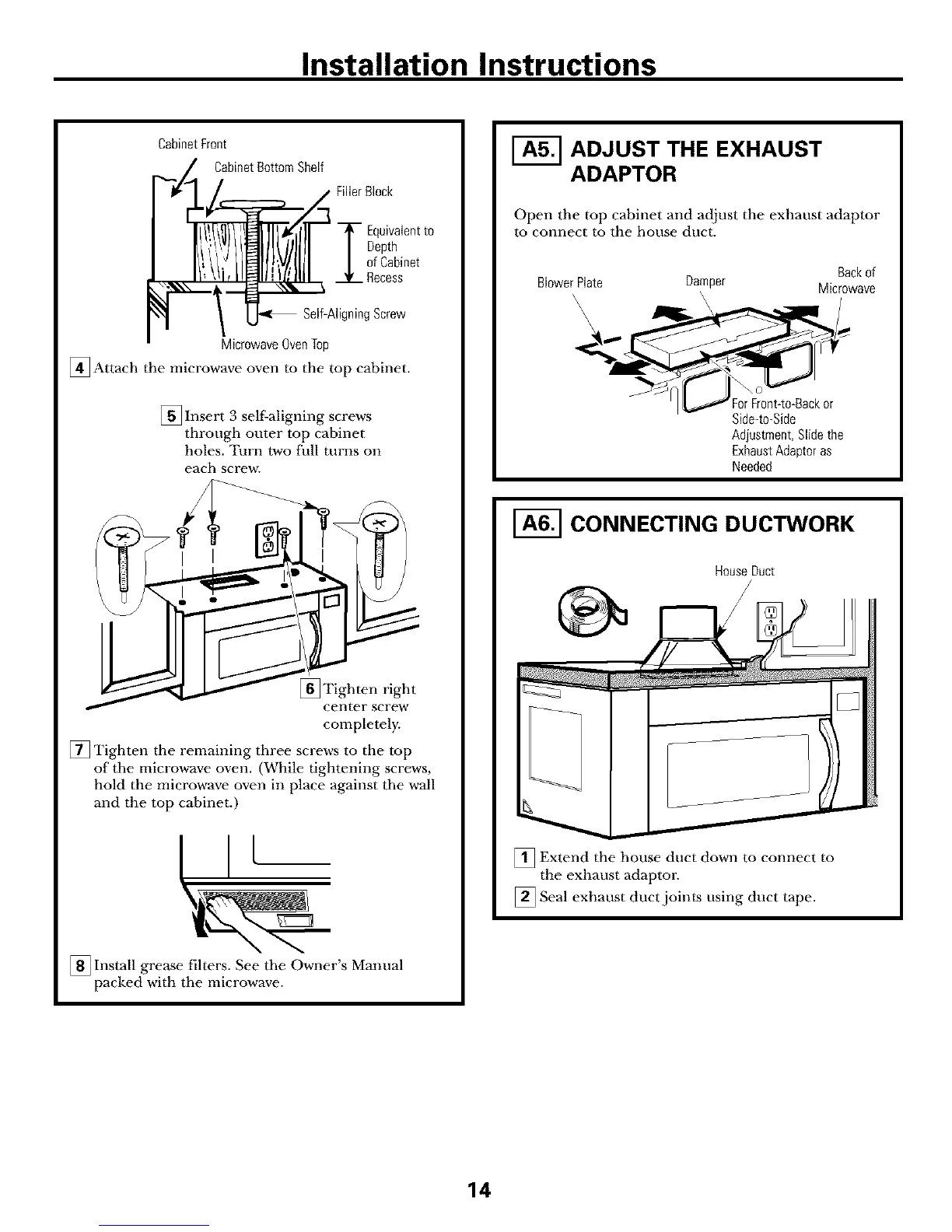

Installation Instructions

CabinetFront

v,,/_ CabinetHottomShelf

_'__;_---A FillerBlock

| _/P T Eqa'valeetto

i t7//HIII,v!71II/ °Ofe_:hbinet

J. ll:MYIr I!_ .__,_Recess

+o,:,,,+o,o++o ow

' MicrowaveOvenTop

[_ Attach the microwave oven to the top cabinet.

[] Insert 3 self:aligning screws

through outer top cabinet

holes. *iilrn two full turns on

each screw.

[]Tighten right

center screw

completely.

[] Tighten the remaining three screws to the top

of the microwave oven. (While dghtening screws,

hold the microwave oven in place against the wall

and the top cabinet.)

[] Install grease filters. See the Owner's Manual

packed with the microwave.

[-_ ADJUST THE EXHAUST

L_I

ADAPTOR

Open the top cabinet and adjust the exhaust adaptor

to connect to the house duct.

Hackof

Blower Plate Damper Microwave

s \

Side-to-Side

Adjustment,Slidethe

ExhaustAdaptoras

Needed

I-_ CONNECTING DUCTWORK

HouseDuct

_ Extend the house duct down to connect to

the exhaust adaptor.

[] Seal exhaust duct joints using duct tape.
