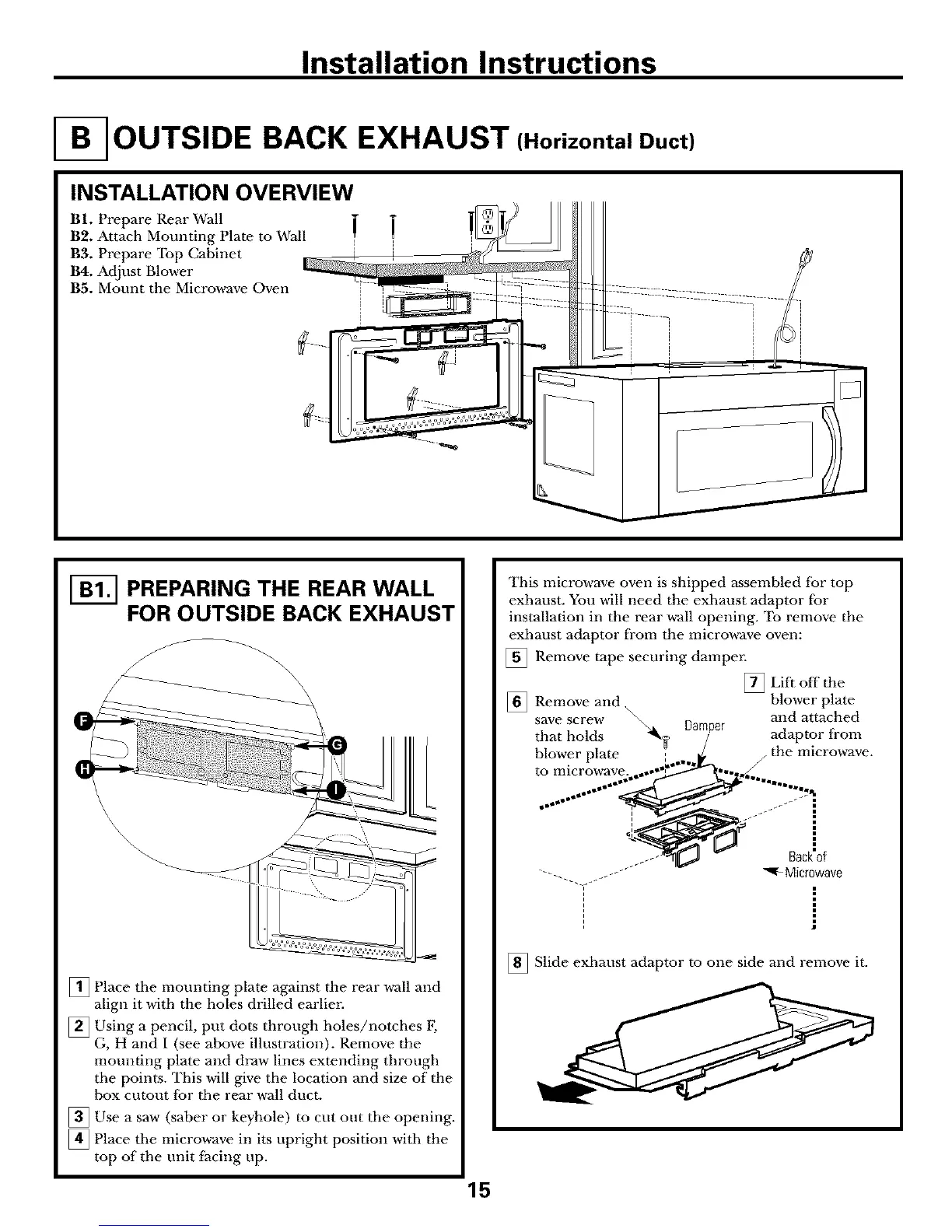

Installation Instructions
OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
BI. Prepare Rear Wall
B20 Attach Mounting Plate. to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
BS. Mount the Microwave Oven
I-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
[] Place the mounting plate against the rear wall and
align it with the holes drilled earlier.
[] Using a pencil, put dots through holes/notches iv,
G, H and I (see above illustration). Remove the
mounting plate and draw lines extending through
the points. This will give the location and size of the
box cutout for the rear wall duct.
[] Use a saw (saber or keyhole) to cut out the opening.
[] Place the microwave in its upright position with the
top of the unit facing up.
This microwave oven is shipped assembled fbr top
exhaust. You will need the exhaust adaptor fbr
installation in the rear wall opening. To remove the
exhaust adaptor fi'om the micro,a-ave oven:
[] Remove tape securing dampm:
[] Lift off the
[] Remove and, blower plate
save screw \\ and attached
Damper
that holds _ / adaptor from
blower "qate I "/ the microwave.
to mlcro_ave. ,.,..", "-,
_jo_ '_j° I_wlll_l I
..... :-
. _ Back'of
"---. s--"" Microwave
[] Slide exhaust adaptor to one side and remove it.
15
