MA-003 – MULTITRANS User Guide – Rev 3.0 18-Jan-16 Page 25 of 30
To clean the air outlet filter:
1. Slide up and remove the metallic hood on the right-hand side of the product
casing to reveal the black fan / filter assembly. Note: Use a rubber mallet to assist with
removing the hood.
2. If a cable-tie is fitted to the filter holder, first carefully remove it. Remove the filter
holder by pulling off the black snap-off cover to the filter.
3. If the filter mat is just dusty, clean it with dry compressed air or by beating it
against a hard clean surface.
4. If the filter mat is oily, clean it with mild detergent and water, and then dry it
thoroughly.
5. Replace the filter mat and snap the cover back in place. Note: The cable tie only secures
the filter holder during shipping so there is no requirement to replace.
6. Replace the metallic hood over the filter assembly and re-energise the product.

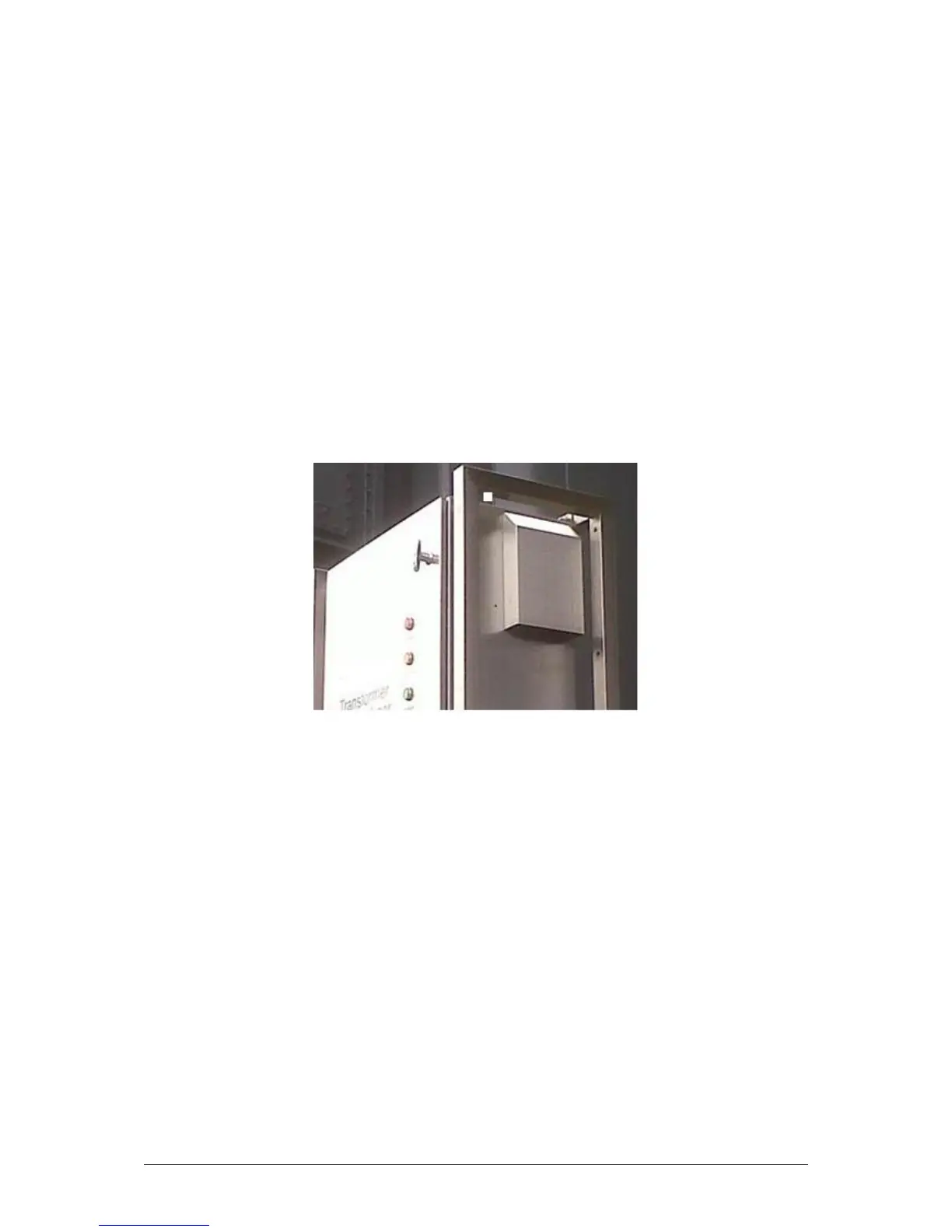

Figure 8—2: Metallic hood
