Chapter 2: Installation
Kilsen KFP-CF Series Installation Manual 7
Fixing the cabinet to the wall
The requirements for nylon wall plugs and screws are shown in the following table.
Model Screws Wall plugs
Two- and four-zone control
panels
4 x M4, 30 mm 4 x Ø 6 mm
Eight-zone control panel 5 x M4, 30 mm 5 x Ø 6 mm

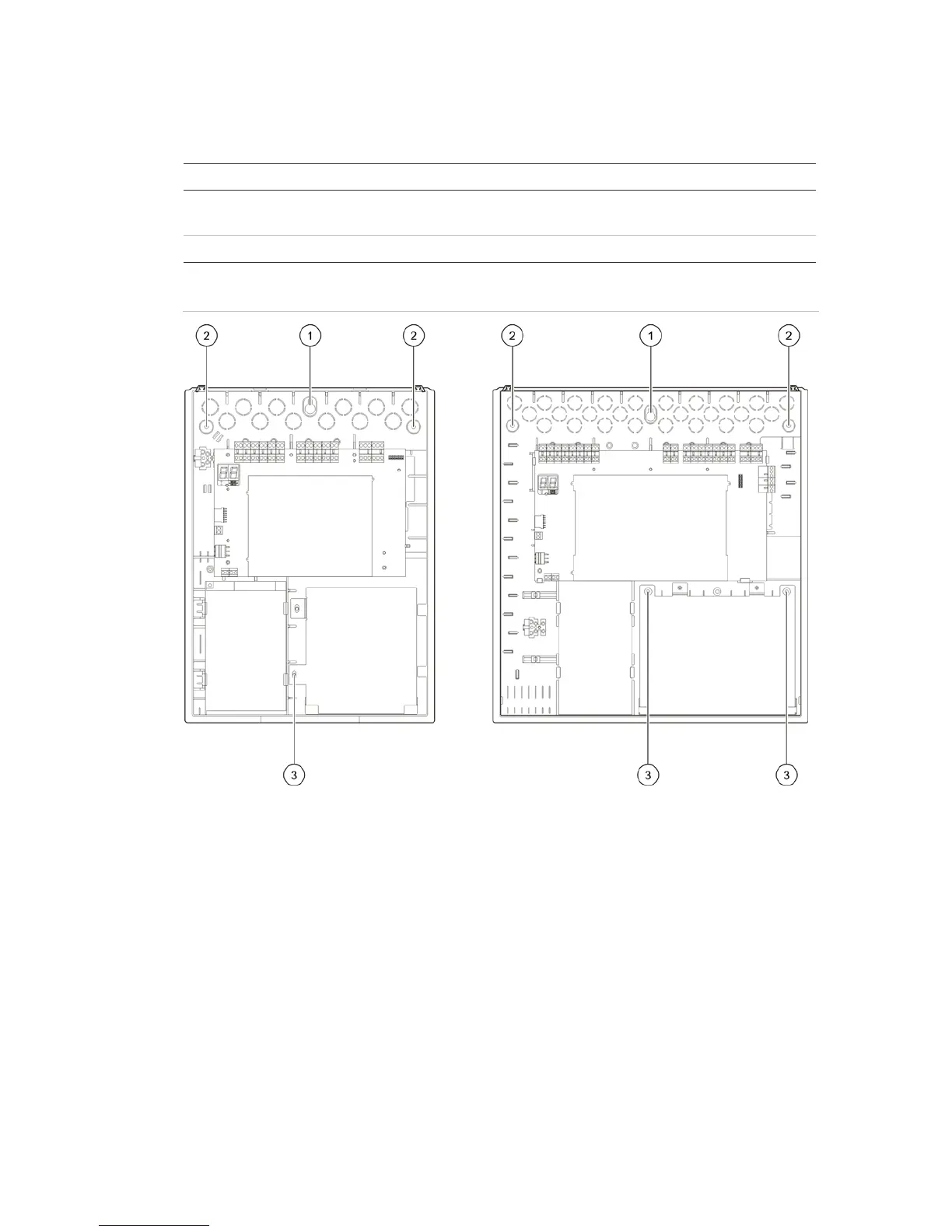

Figure 3: Mounting hole locations
Fix the control panel cabinet to the wall as follows:
1. Mark drill points on the wall using the template provided in the product packaging
2. Drill all required holes and insert a 6 mm wall plug into each.
3. Insert screw (1) half way and hang the cabinet onto this screw.
4. insert screws (2) and tighten.
5. Insert screws (3) and tighten.
6. Tighten screw (1).
