IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL
5 - 2 Chapter 5 Components and Functions (Theory)
Section 5-2Block Diagram
5-2-1 System Diagram

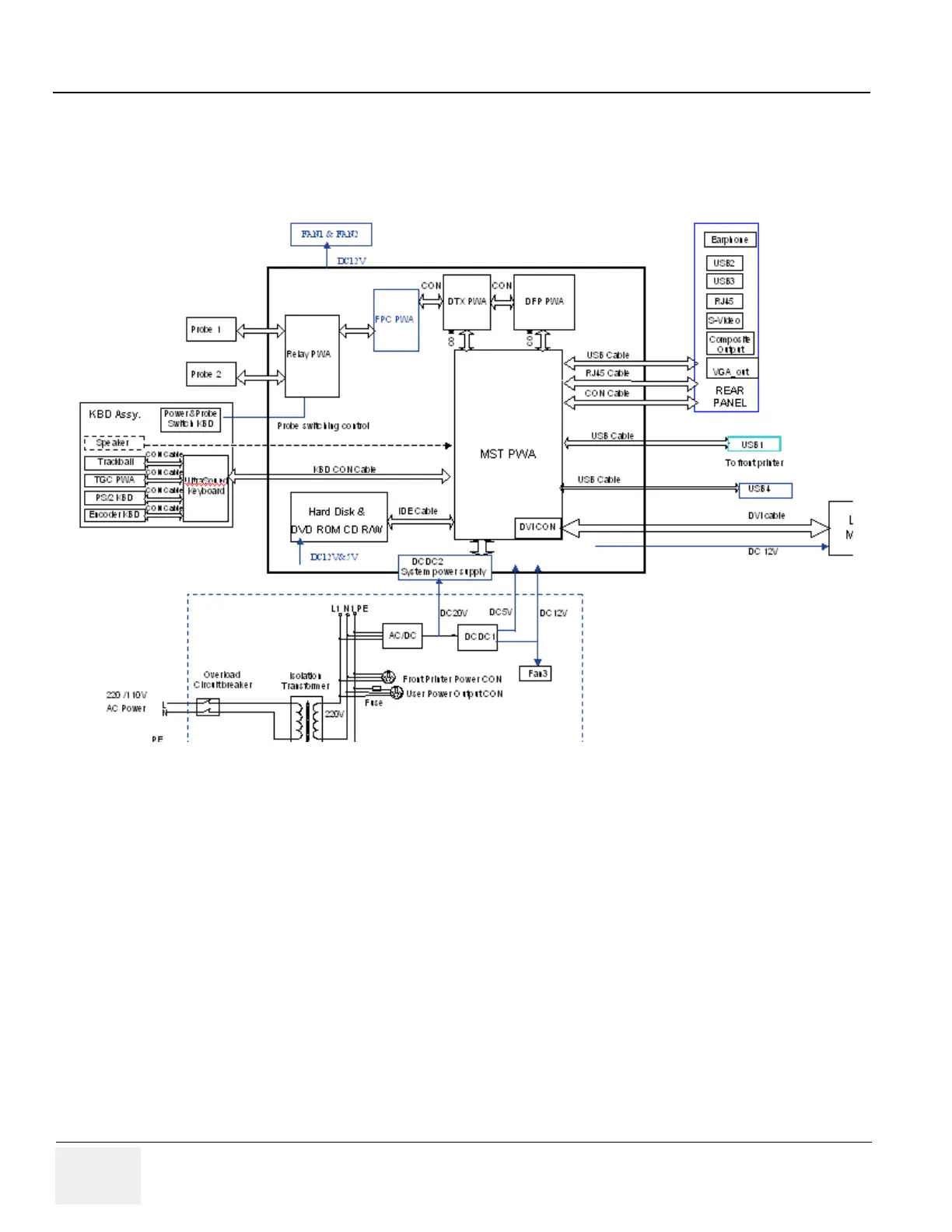

Figure 5-1 LOGIQ C Series System Diagram
