IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL
3 - 12 Section 3-6 - System Configuration
3-6-4 Connecting Cables
3-6-5 Peripherals/Accessories Connector Panel
LOGIQ C Series peripherals and accessories can be properly connected using the side connector
panel.
3-6-5-1 Rear Panel Connector
Located on the rear panel are Network port, 2 USB port, S-Video Out, VGA, Audio Out, Composite Out.
1.) Network Port
2.) 2 USB Ports (Printers, Footswitch, etc)
3.) S-Video Out
4.) VGA
5.) Audio Out
6.) Composite Out
NOTE: Audio Out is not supported by LOGIQ C2/C2 PRO.
WARNINGWARNING
Equipment damage possibility. Be sure to use the following recommended connecting cables to
connect recording devices and a network with LOGIQ C Series console.
Table 3-8 List of Connecting Cables
Name Part No. Figure NOTE
USB Cable 5122305
For USB Printer

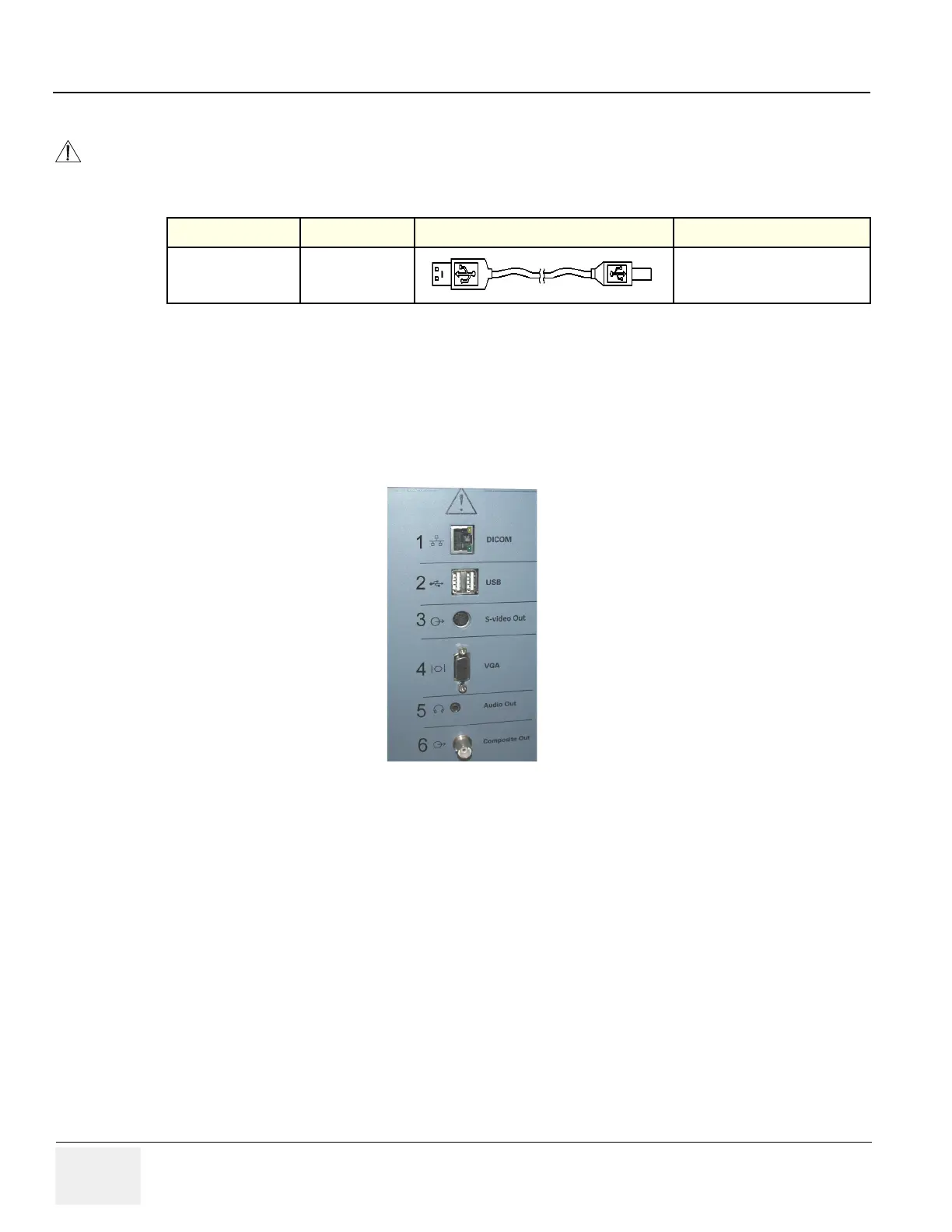

Figure 3-6 Rear Connector Panel
