IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL
4 - 6 Section 4-3 - General Procedure
4-3-5 System Features
4-3-5-1 Control Panel
1.) Power On/Off Switch
2.) Probe Key
3.) Top Menu Controls
4.) Keyboard
5.) Preset, Comment, Harmonics keys
6.) Patient key
7.) Mode keys: B-Mode, M-Mode, PW-Mode, CF Mode.
8.) Gain/Auto key
9.) Zoom key
10.)Ellipse key
11.)Depth key
12.)Reverse, Print, Store keys
13.)Left, Right key
14.)Freeze key
15.)Trackball
16.)Imaging/Measurement keys
17.)TGC
18.)Gel Holder
19.)Probe Holder
NOTE: LOGIQ C2/C2 PRO do not have Harmonics keys and press CTRL+H to active Harmonics mode
NOTE: LOGIQ C2/C2 PRO do not support PW Mode and CF Mode, and do not have PW and CF mode
key, LOGIQ C3/C3 PRO do not support CF Mode, and do not have CF mode key.

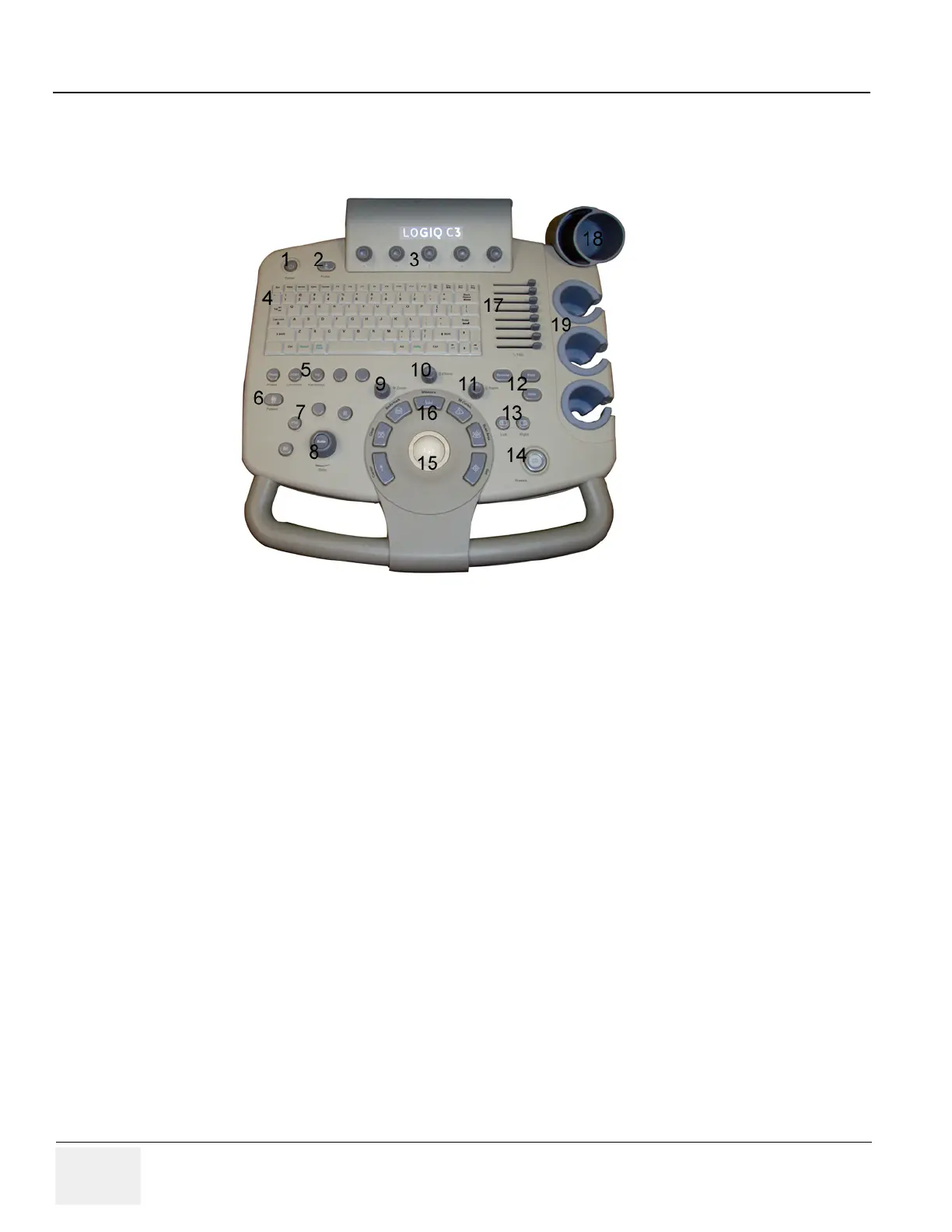

Figure 4-4 Control Panel Tour
